SS/710

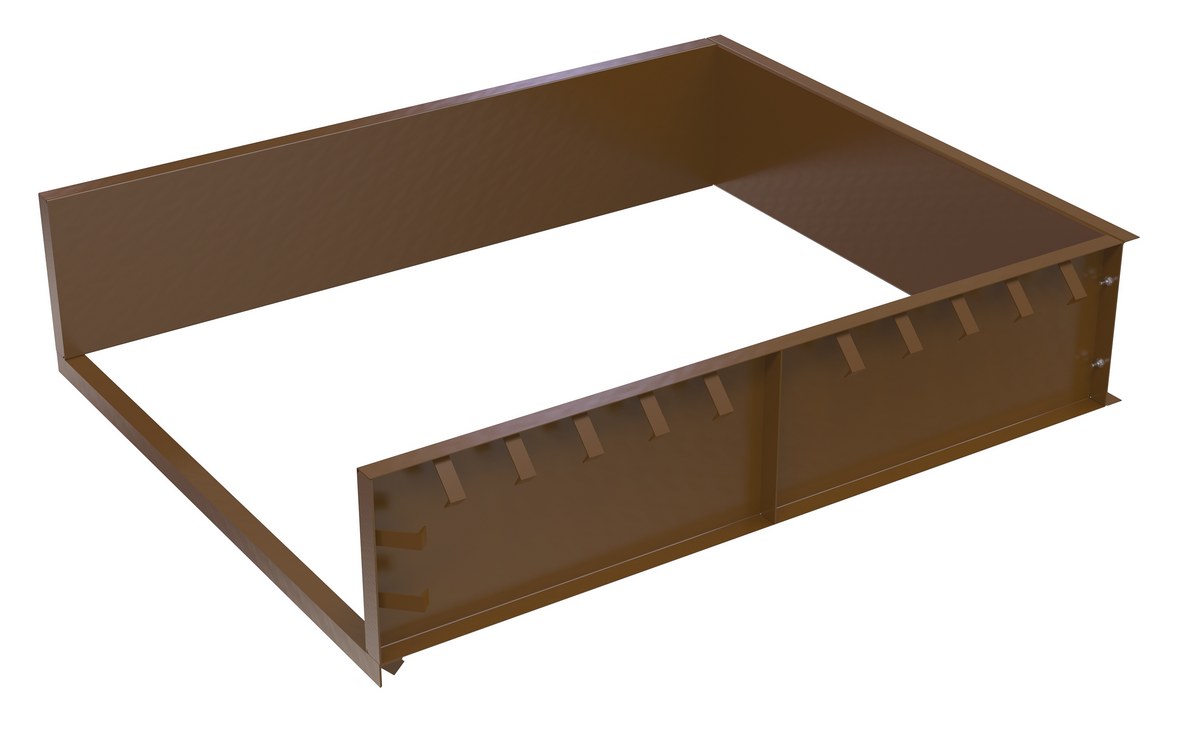

Steel Shell For Pour In Place Installation 7 Ft. x 10 Ft. Brown

The electric Hydraulic Dock Leveler steel shell is an ideal addition to the dock leveler. The steel shells are installed when the concrete is being poured, to provide steel panels on each vertical face of the pit, along with steel flanges along the top faces. Proper installation of a dock leveler requires the leveler to be welded along the upper rear edge of the pit, and the steel shells provide this edge. The steel shells include a front lower steel angle, that gets placed at the front bottom of the pit. This angle provides another essential location where the leveler needs to be welded to the pit.
Contact Vestil Non-Returnable
Key Features
  • Strong construction for long life
  • Simple pour in place installation
  • Perfect for mechanical or hydraulic dock levelers
  • Positioned in place with minimal personnel
Product Image

Visual Reference

SS/710
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 473 lbs
Assembled Size 92"W x 113"L x 24"H
Total Ship Weight 473 lbs
Package 1 Size 92"W x 113"D x 24"H
Color / Finish Brown
Freight Type LTL Loose

Additional Attributes

Maximum Board Width (In) 92
Attachment Method Concrete pour in place
Package Contents (1) Steel Shell for Dock Levelers
Documents

PDFs & Product Files

  Approval Drawing   Owner Manual   Owner Manual   Owner Manual   Survey Sheet   90 Days Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: SS/710

SS/710

Steel Shell For Pour In Place Installation 7 Ft. x 10 Ft. Brown

The electric Hydraulic Dock Leveler steel shell is an ideal addition to the dock leveler. The steel shells are installed when the concrete is being poured, to provide steel panels on each vertical face of the pit, along with steel flanges along the top faces. Proper installation of a dock leveler requires the leveler to be welded along the upper rear edge of the pit, and the steel shells provide this edge. The steel shells include a front lower steel angle, that gets placed at the front bottom of the pit. This angle provides another essential location where the leveler needs to be welded to the pit.

  • Strong construction for long life
  • Simple pour in place installation
  • Perfect for mechanical or hydraulic dock levelers
  • Positioned in place with minimal personnel

Core Data

Assembled Weight: 473 Assembled Size: 92"W x 113"L x 24"H Color: Brown
Total Ship Weight: 473 Package 1 Size: 92"W x 113"D x 24"H Freight: LTL Loose

Specifications

Maximum Board Width (In): 92
Attachment Method: Concrete pour in place
Package Contents: (1) Steel Shell for Dock Levelers
