Portable Drum Lifter/Rotator/Transporters

model: DRUM-LRT



Featured Drum Handling Equipment


Hydraulic Drum Crusher/Compactors
Intermediate Bulk Containers
Drum & Bin Dumpers
Drum Rack With Fork Pockets
Manual Low Profile Hydraulic Drum Truck
Tilting Drum Rings
Multi-Purpose Dollies
Portable Drum Jacks
Fire Extinguisher Carrier
model chart

Product Family Overview

Print Friendly
Portable Drum Lifter/Rotator/Transporters
SERIES: DRUM

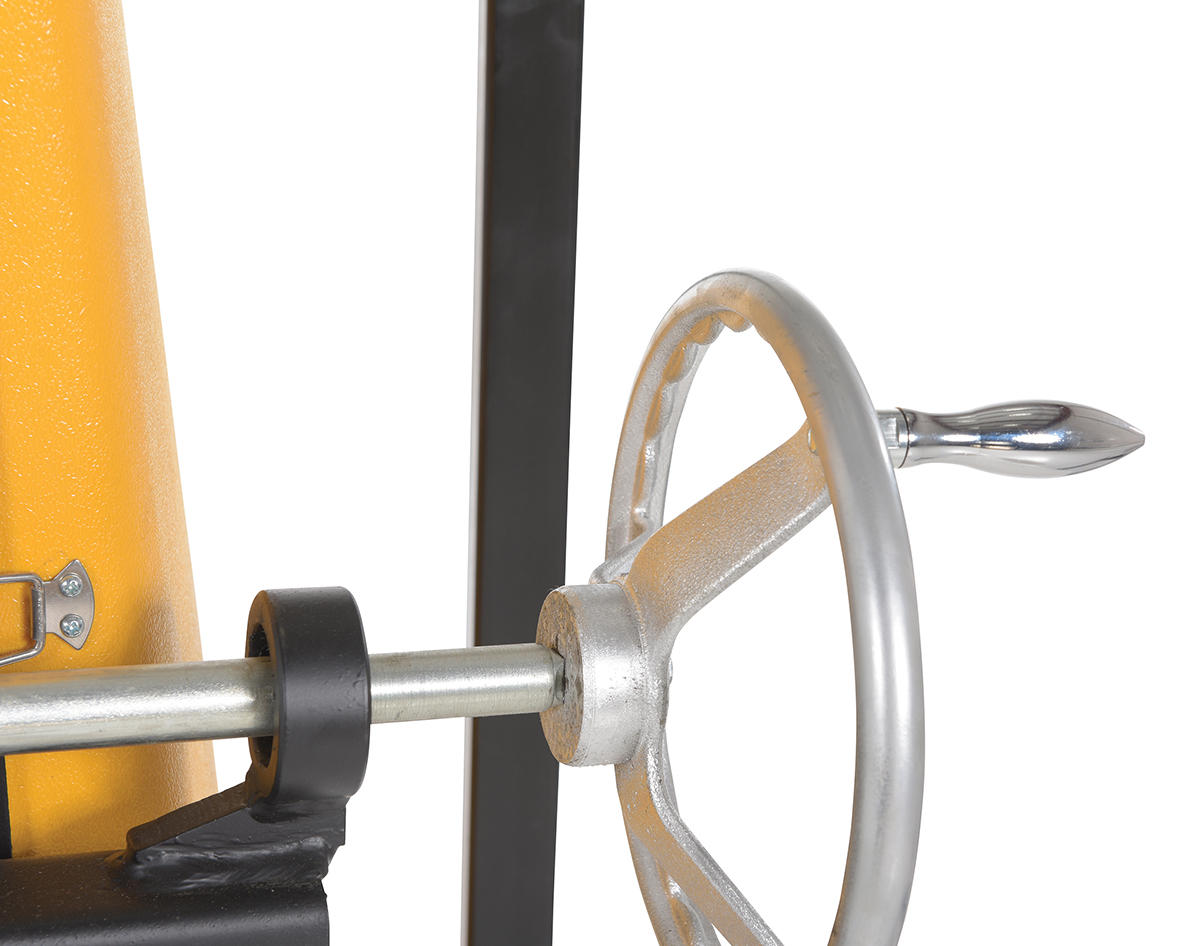

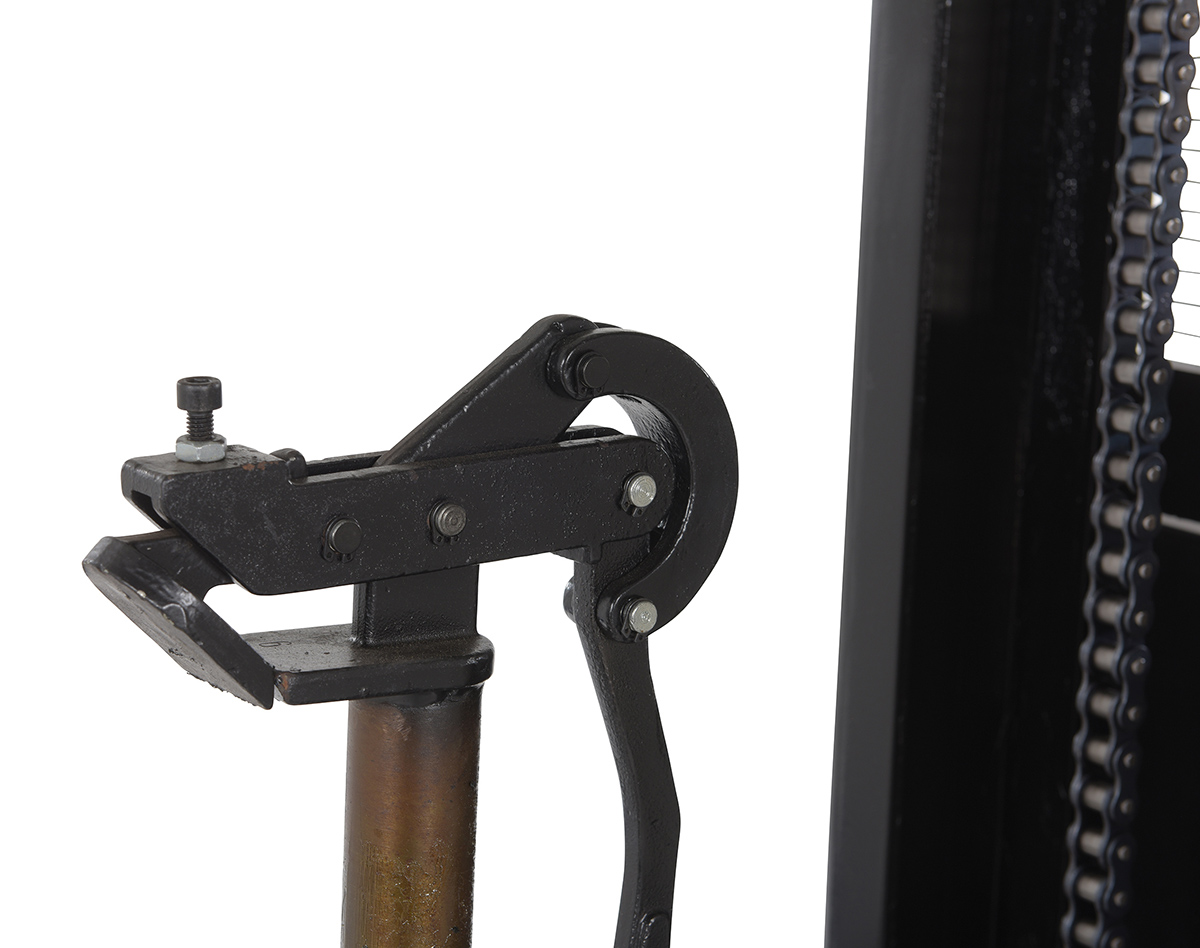

Model DRUM-LRT features a hand pump to lift steel drums from ground level to a raised height of 62" to bottom of drum in vertical position. For use with 55 gallon steel and fiber drums 22" in diameter. A hand crank gear mechanism provides the controlled 360 degree rotation of the drum. A floor lock is standard to stabilize the unit in a fixed position. Horizontal dump height is 67" from floor to bottom of drum.

Model DRUM-LRT features a hand pump to lift steel drums from ground level to a raised height of 62" to bottom of drum in vertical position. For use with 55 gallon steel and fiber drums 22" in diameter. A hand crank gear mechanism provides the controlled 360 degree rotation of the drum. A floor lock is standard to stabilize the unit in a fixed position. Horizontal dump height is 67" from floor to bottom of drum.

Other Drum Transporters, Trucks, Carts & Jacks

 Deluxe Tilt Back Drum Trucks Economy Rotating Drum Carts Semi-Electric Powered Drum Gripper Dispensing Containment Cart

Additional Models In This Family
view entire Image Gallery

DRUM-LRT-DC-II

DRUM-LRT-DC-II

DRUM-LRT-DC-II

DRUM-LRT-DC-II

DRUM-LRT-II

DRUM-LRT-II

DRUM-LRT-DC-SCL

DRUM-LRT-DC-SCL

DRUM-LRT-DC-II

DRUM-LRT-DC-II

DRUM-LRT-DC-SCL

DRUM-LRT-DC-SCL

DRUM-LRT-II

DRUM-LRT-II

DRUM-LRT-II

DRUM-LRT-II

DRUM-LRT-DC-II

DRUM-LRT-DC-II

DRUM-LRT-II

DRUM-LRT-II

DRUM-LRT-DC-SCL

DRUM-LRT-DC-SCL

DRUM-LRT-DC

DRUM-LRT-DC

DRUM-LRT-DC

DRUM-LRT-DC

DRUM-LRT-II

DRUM-LRT-II

DRUM-LRT-DC-II

DRUM-LRT-DC-II

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
DRUM-LRT POPULAR DRUM-LRT90 Days Limited WarrantySteel Manual Drum Lifter/Rotator/Transporter 52 In. x 33 In. x 85-7/16 In. 550 Lb. Capacity Yellow/BlackUniform Capacity (lb.): 550
Vertical Raised Height (in.): 62		523

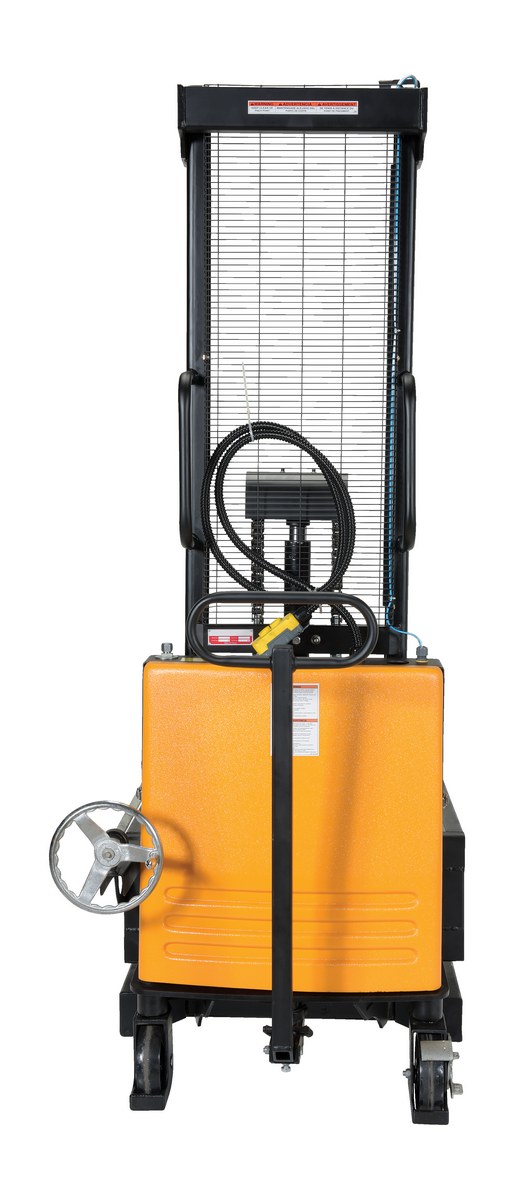

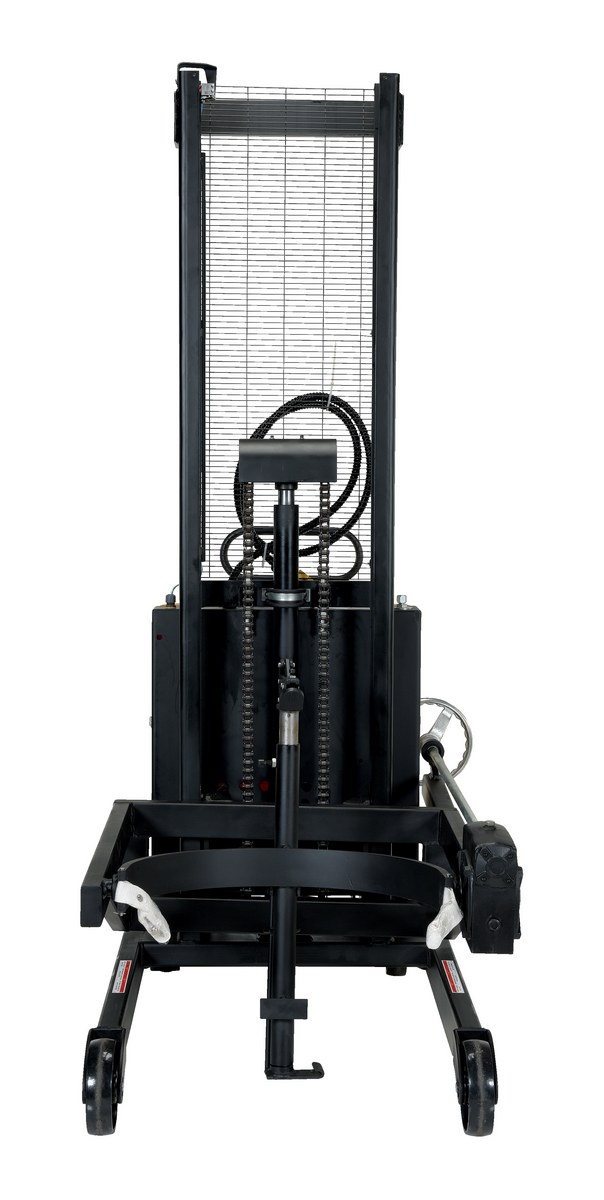

DRUM-LRT-AIR DRUM-LRT-AIR90 Days Limited WarrantySteel Air Powered Drum Lifter/Rotator/Transporter 57 In. x 31 In. x 85 In. 550 Lb. Capacity Black/YellowUniform Capacity (lb.): 550
Vertical Raised Height (in.): 62		667

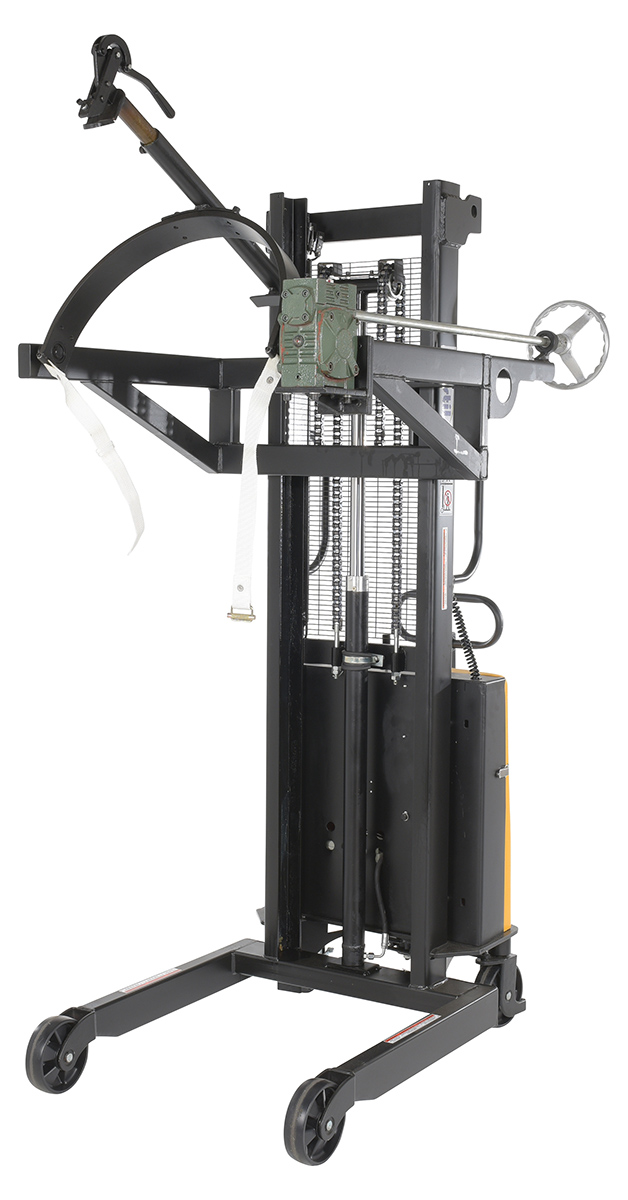

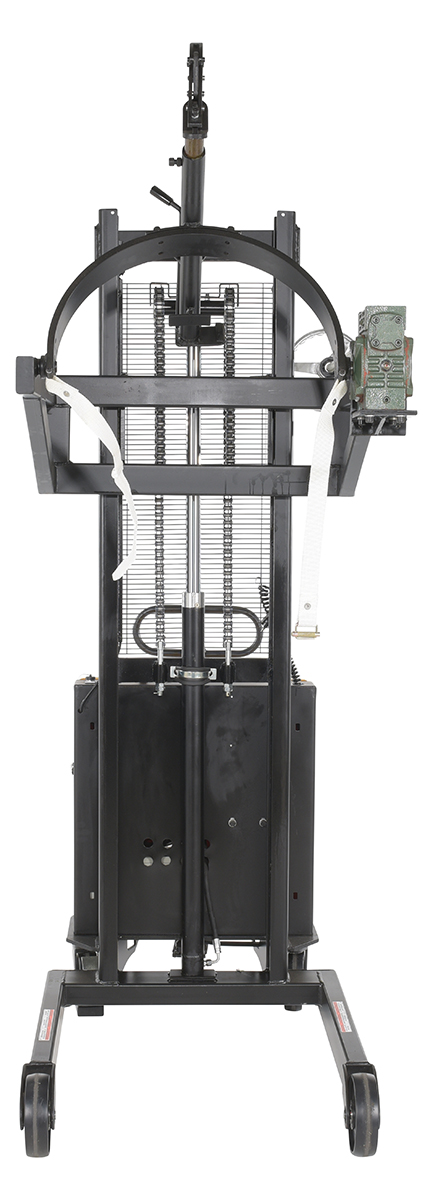

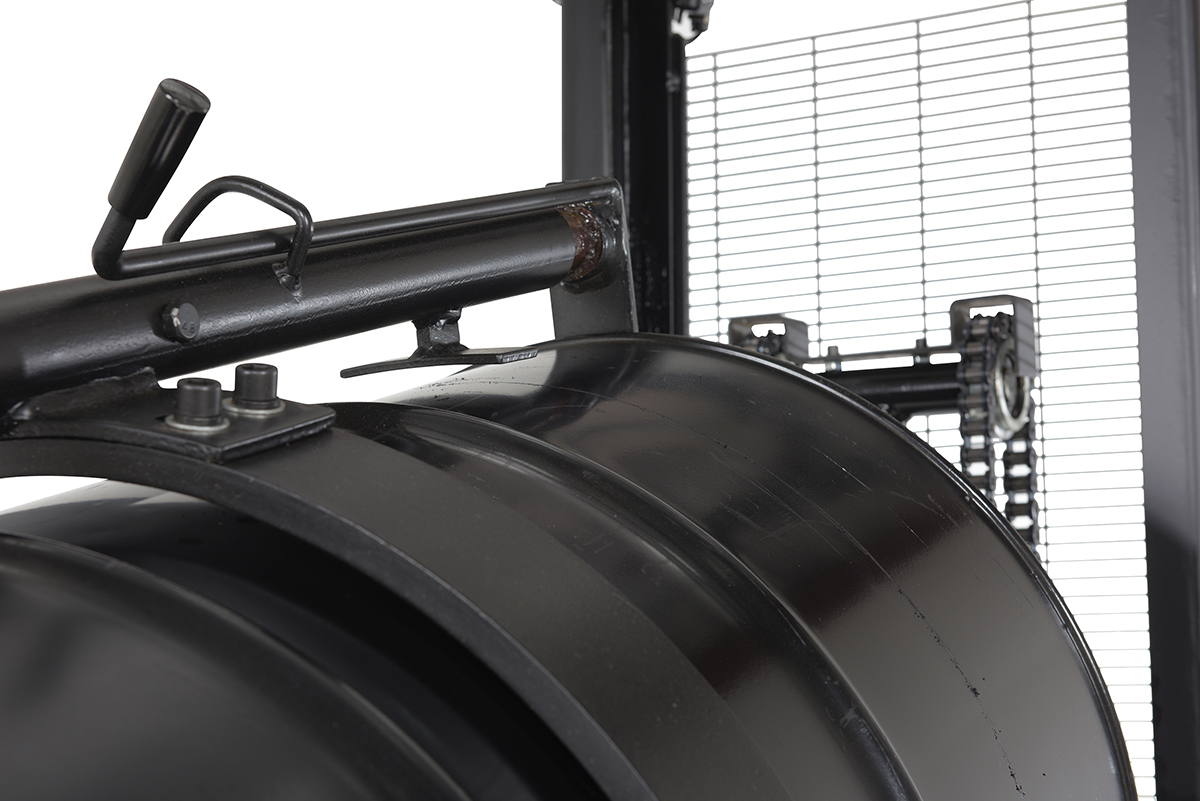

DRUM-LRT-DC DRUM-LRT-DC90 Days Limited WarrantySteel DC Powered Drum Lifter/Rotator/Transporter 61 In. x 36-1/4 In. x 88 In. 550 Lb. Capacity Black/YellowUniform Capacity (lb.): 550
Vertical Raised Height (in.): 62		768

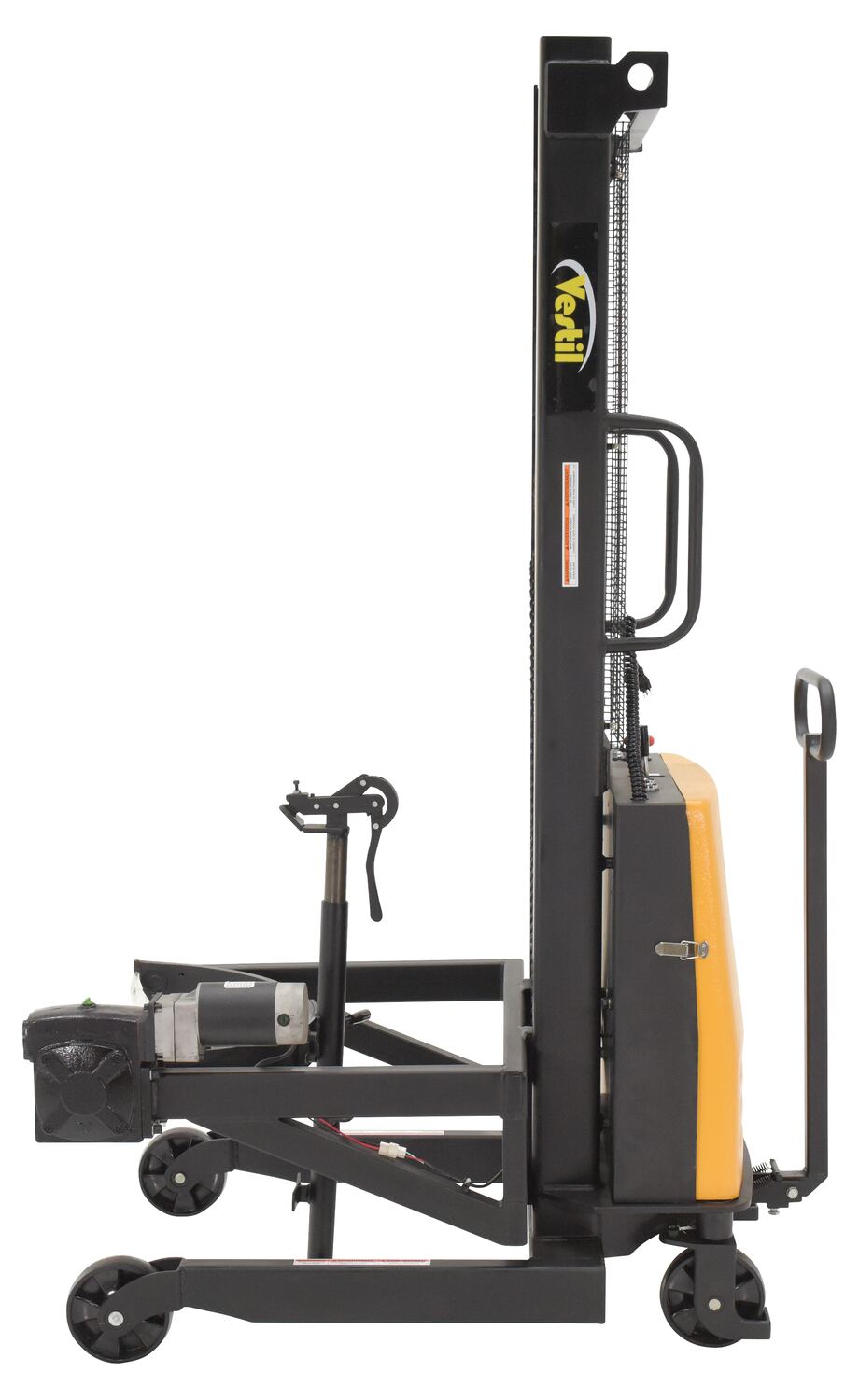

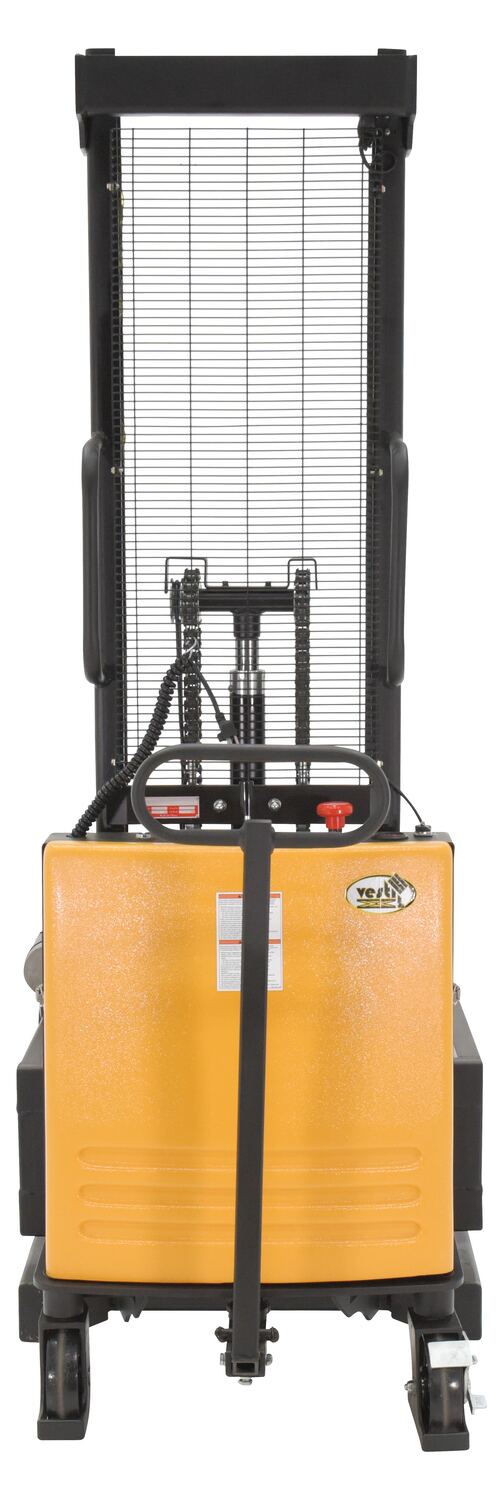

DRUM-LRT-DC-II DRUM-LRT-DC-II90 Days Limited WarrantySteel DC Powered Drum Lifter/Rotator/Transport 61 In. x 36-1/4 In. x 88 In. 550 Lb. Capacity Black/YellowUniform Capacity (lb.): 550
Vertical Raised Height (in.): 62		826

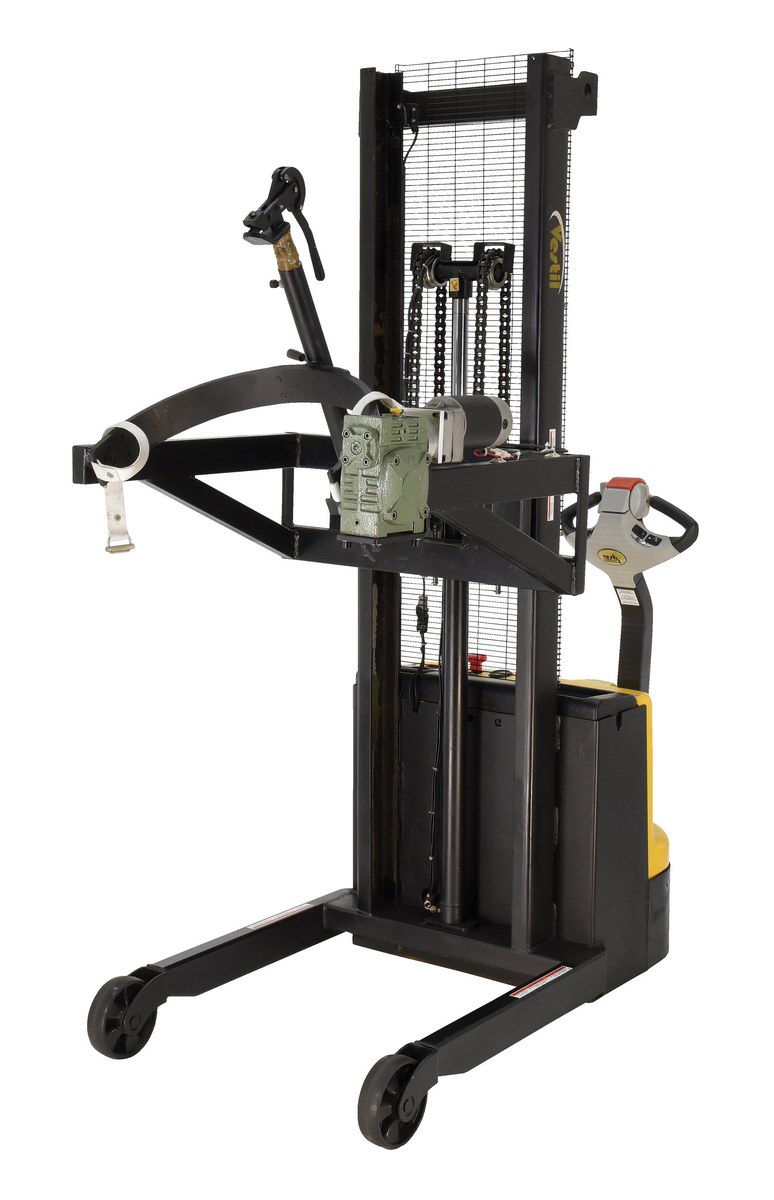

DRUM-LRT-DC-SCL DRUM-LRT-DC-SCL90 Days Limited WarrantySteel DC Powered Drum Lifter/Rotator/Transporter with Scale 34-5/8 In. x 61-13/16 In. x 85-7/16 In. 550 Lb. Capacity Black/YellowUniform Capacity (lb.): 550
Vertical Raised Height (in.): 62		855

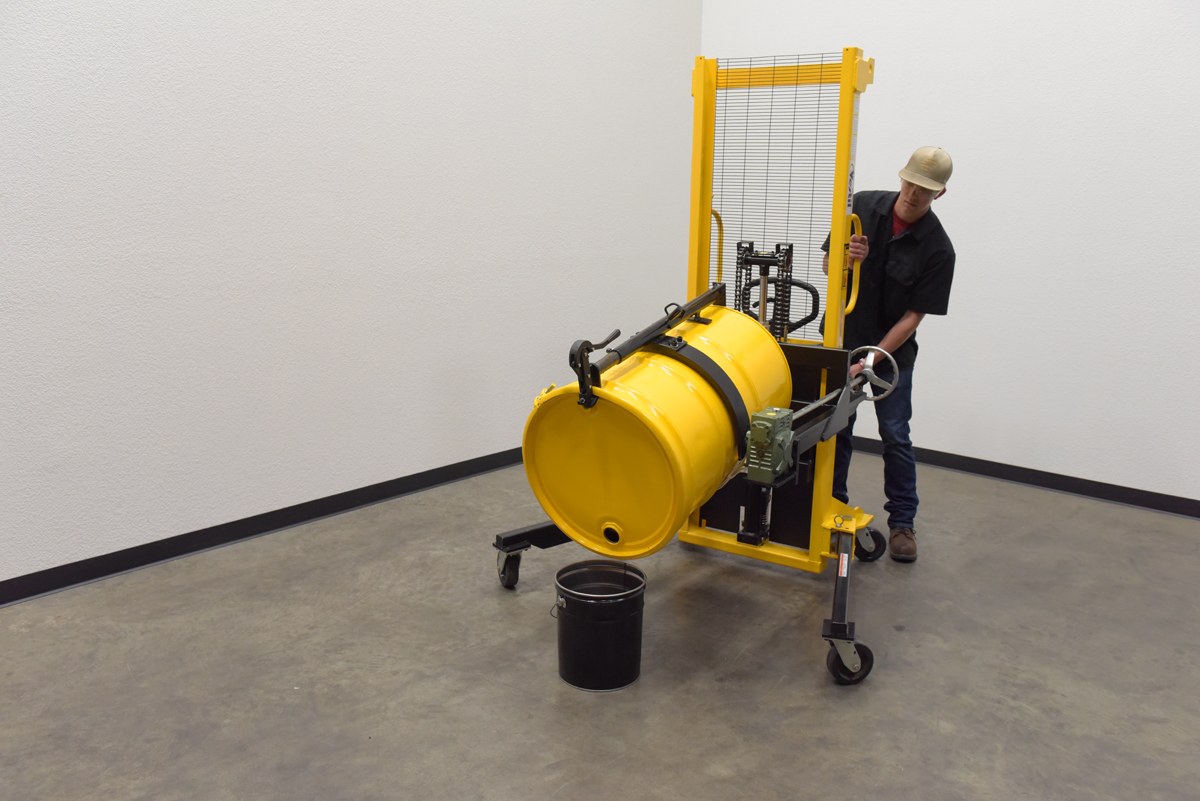

DRUM-LRT-II DRUM-LRT-II90 Days Limited WarrantySteel Manual Drum Lifter/Rotator/Transport 51-1/2 In. x 34 In. x 82-5/8 In. 550 Lb. Capacity Yellow/BlackUniform Capacity (lb.): 550
Vertical Raised Height (in.): 62		574

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

DRUM-LRT
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 550
Vertical Raised Height (in.): 62
Uniform Capacity (lb.): 550
Vertical Raised Height (in.): 62

DRUM-LRT-AIR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 550
Vertical Raised Height (in.): 62
Uniform Capacity (lb.): 550
Vertical Raised Height (in.): 62

DRUM-LRT-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 550
Vertical Raised Height (in.): 62
Uniform Capacity (lb.): 550
Vertical Raised Height (in.): 62

DRUM-LRT-DC-II
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 550
Vertical Raised Height (in.): 62
Uniform Capacity (lb.): 550
Vertical Raised Height (in.): 62

DRUM-LRT-DC-SCL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 550
Vertical Raised Height (in.): 62
Uniform Capacity (lb.): 550
Vertical Raised Height (in.): 62

DRUM-LRT-II
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 550
Vertical Raised Height (in.): 62
Uniform Capacity (lb.): 550
Vertical Raised Height (in.): 62
For More Details of the Option Click the Red Model Button
FDA-550-DRUM-LRT-PF FDA-550-DRUM-LRT-PF90 Days Limited WarrantyFactory Installed Special Portable Drum Lifter/Rotator For DRUM-LRTLowered Height (in.): 28.5
37

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Portable Drum Lifter/Rotator/Transporters PDF's will open in a new window when clicked.

Manuals


DRUM-LRT
Owners Manual

DRUM-LRT-AIR
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


DRUM-LRT

DRUM-LRT-DC

DRUM-LRT-DC-II

DRUM-LRT-II

Testing Certificates


DRUM-LRT

DRUM-LRT-AIR

DRUM-LRT-DC

DRUM-LRT-DC-II

DRUM-LRT-DC-SCL

DRUM-LRT-II

FDA-550-DRUM-LRT-PF

SDS Sheets

Hydraulic Oil SDS Sheet for: DRUM-LRT
Hydraulic Oil SDS Sheet for: DRUM-LRT-AIR
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: DRUM-LRT-DC
Hydraulic Oil SDS Sheet for: DRUM-LRT-DC
Hydraulic Oil SDS Sheet for: DRUM-LRT-DC-II
Hydraulic Oil SDS Sheet for: DRUM-LRT-DC-SCL
Hydraulic Oil SDS Sheet for: DRUM-LRT-II

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: We have both steel and plastic drums. Is there a way we can use this with both types of drums?

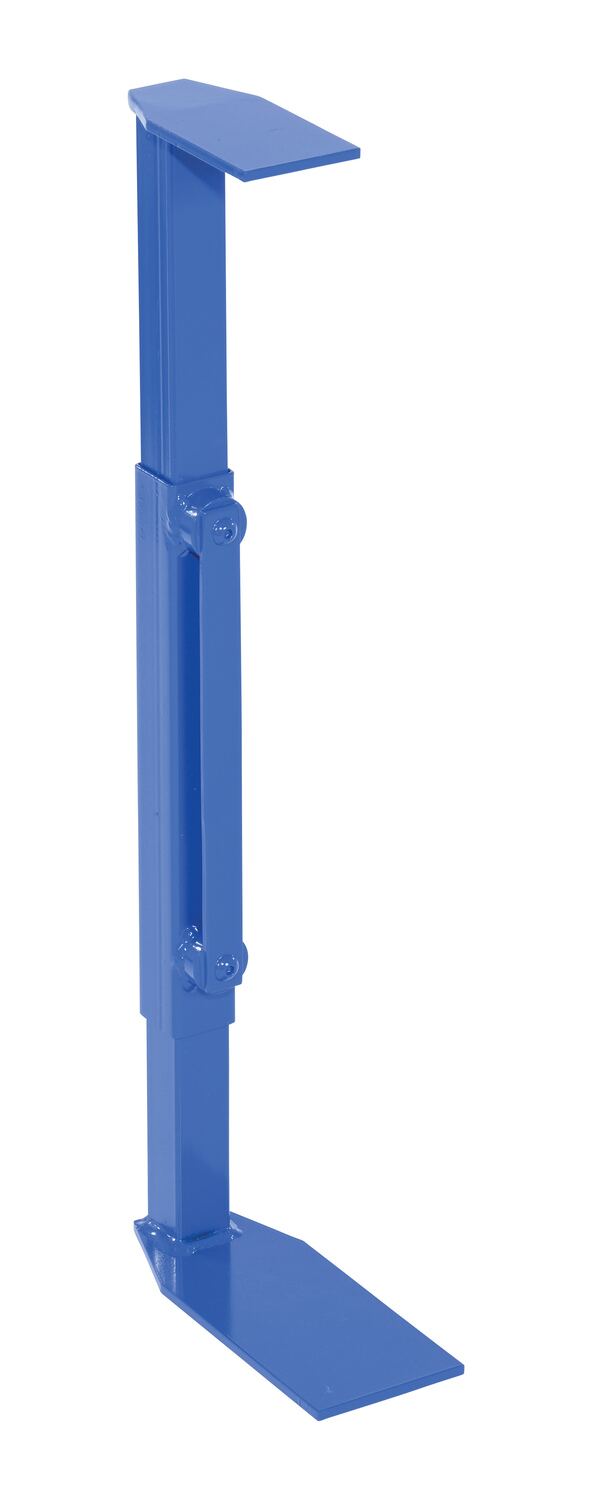

A: Yes. FDA-550-DRUM-LRT-PF (installed in the factory) is an adaptor that can accommodate 55 gallon plastic and fiber drums. The adaptor can be easily removed for use with steel drums.

Q: Does the DRUM-LRT-DC-SCL work with both steel and fiber drums?

A: No. The DRUM-LRT-DC-SCL is recommended for use with 55 gallon steel drums only.

Q: Can the FDA-550-DRUM-LRT-PF be installed in the field?

A: Yes. FDA-550-DRUM-LRT-PF can be installed in the factory or the field. The adaptor can be easily removed for use with steel drums.

Q: Do you manually rotate the drum or is it powered?

A: The DRUM-LRT-DC and the DRUM-LRT-DC-SCL have a manual rotation. The DRUM-LRT-DC-II has a powered rotation
