Inflatable Dunnage BagsOften used for rail, vessel, and inter modal shipments

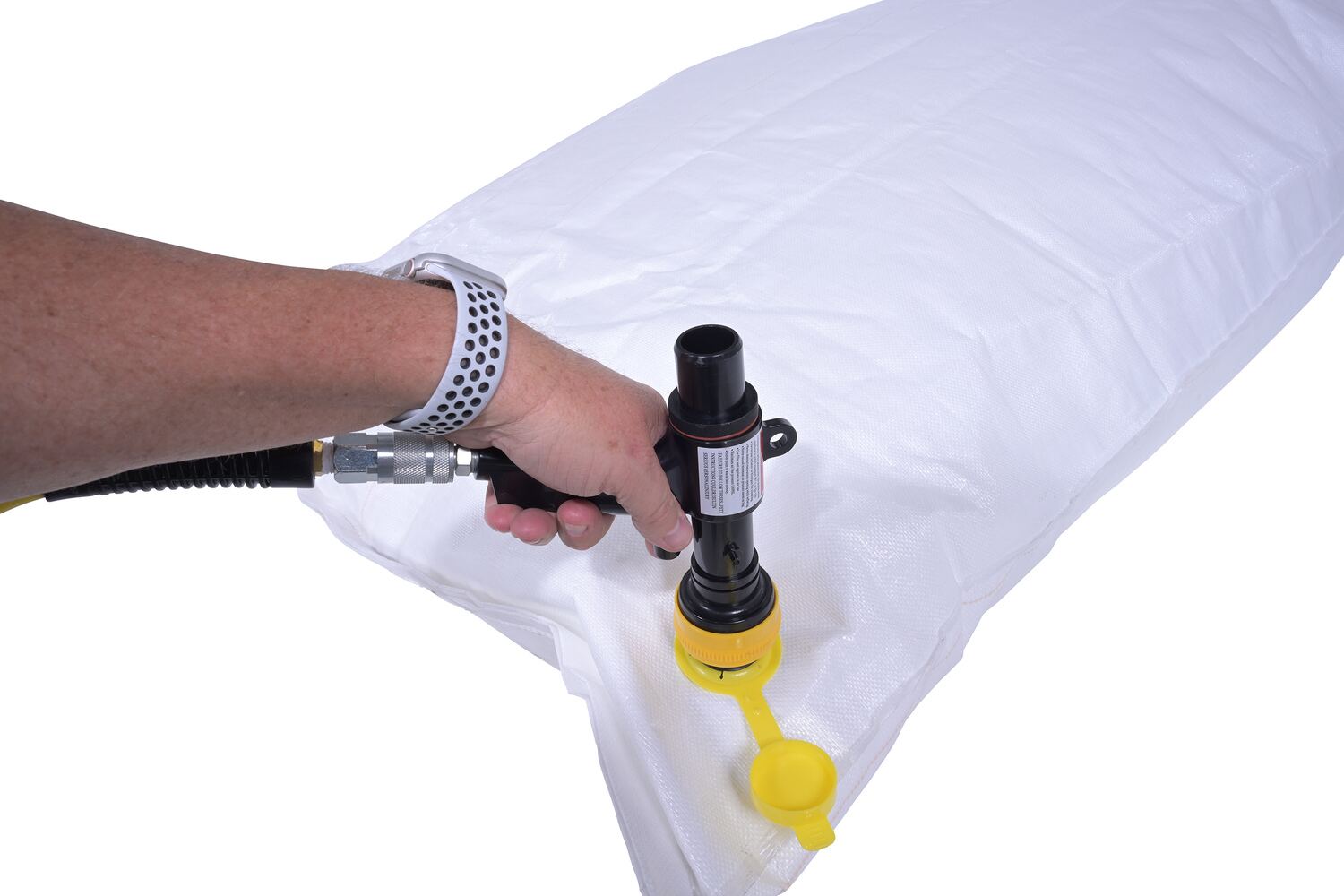

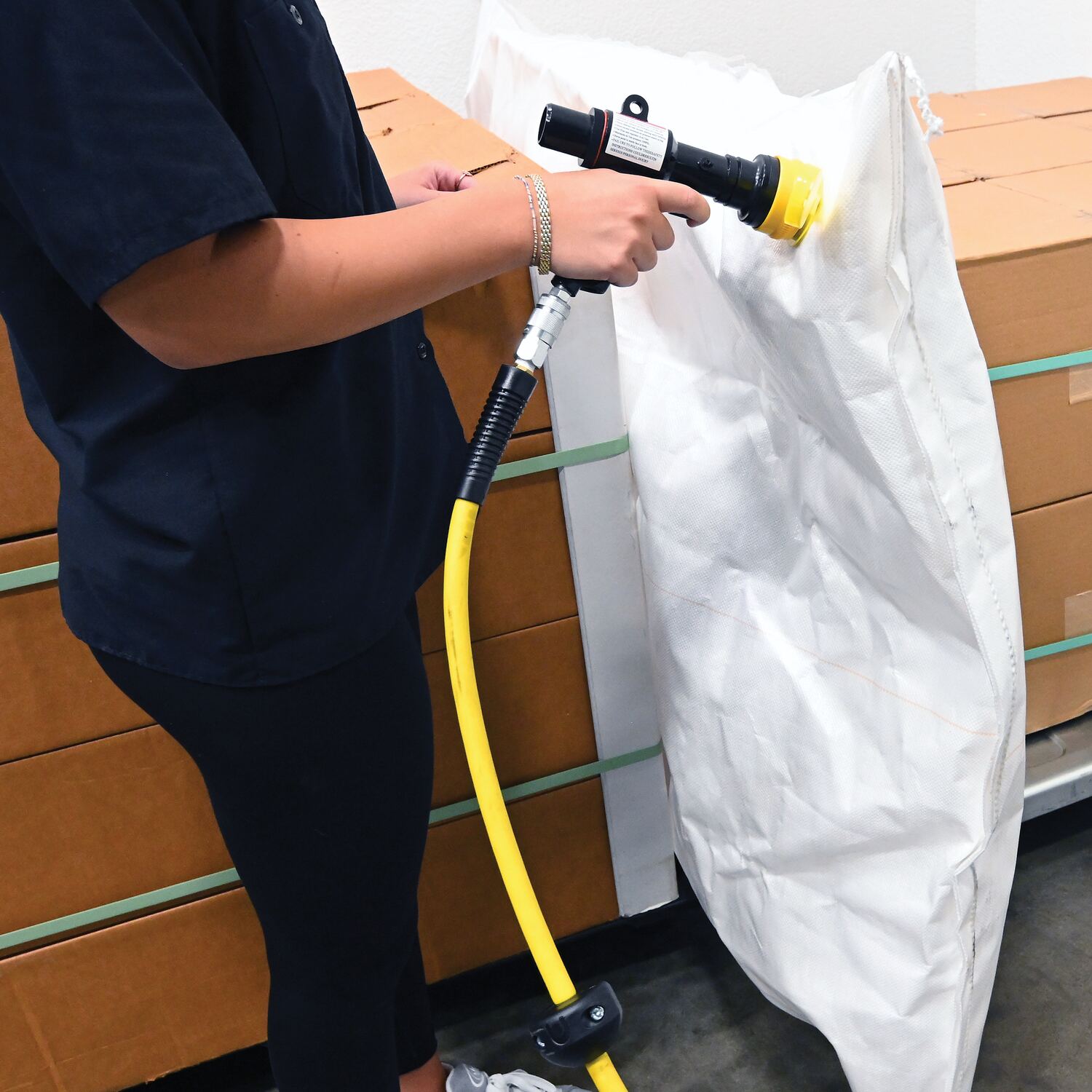

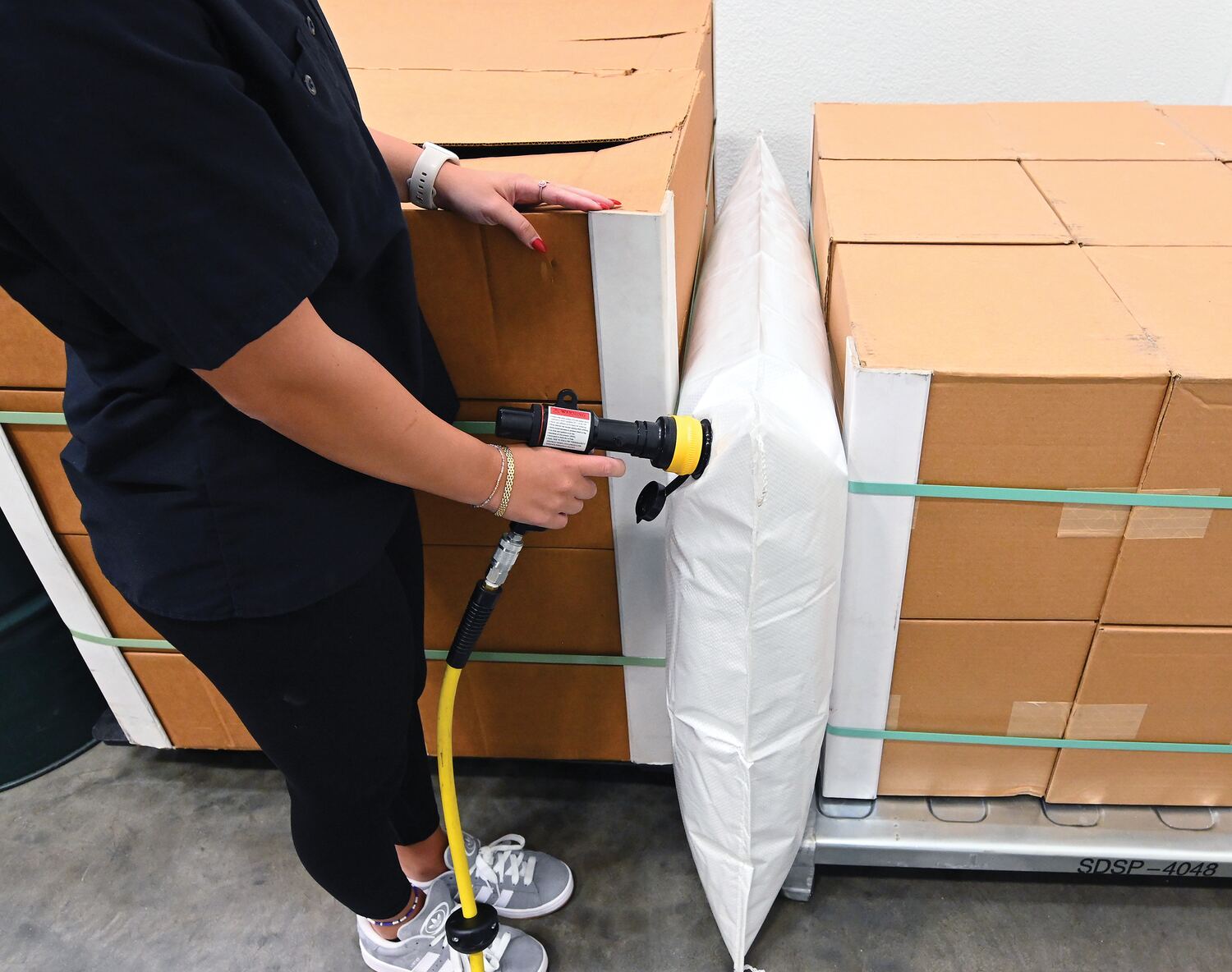

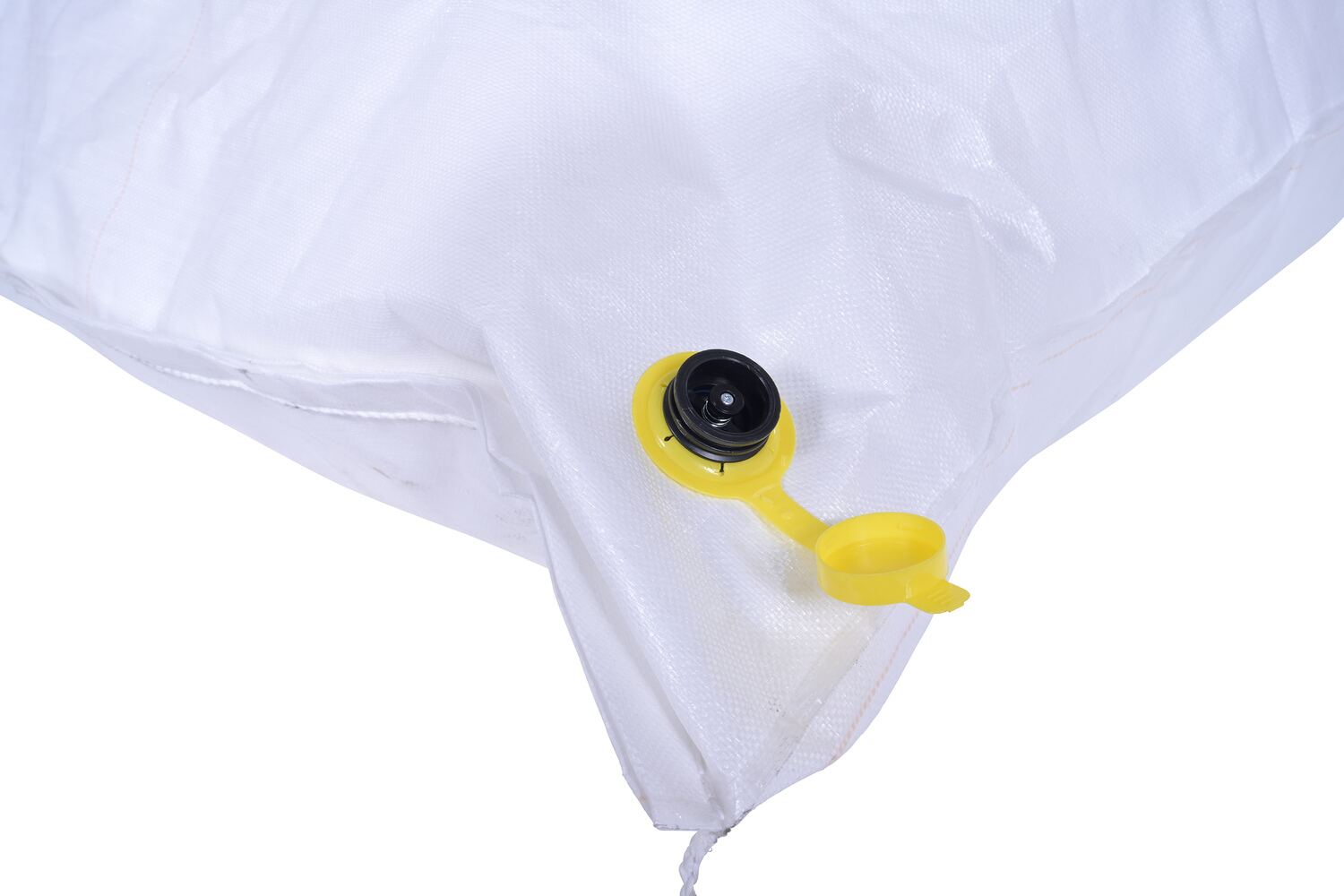

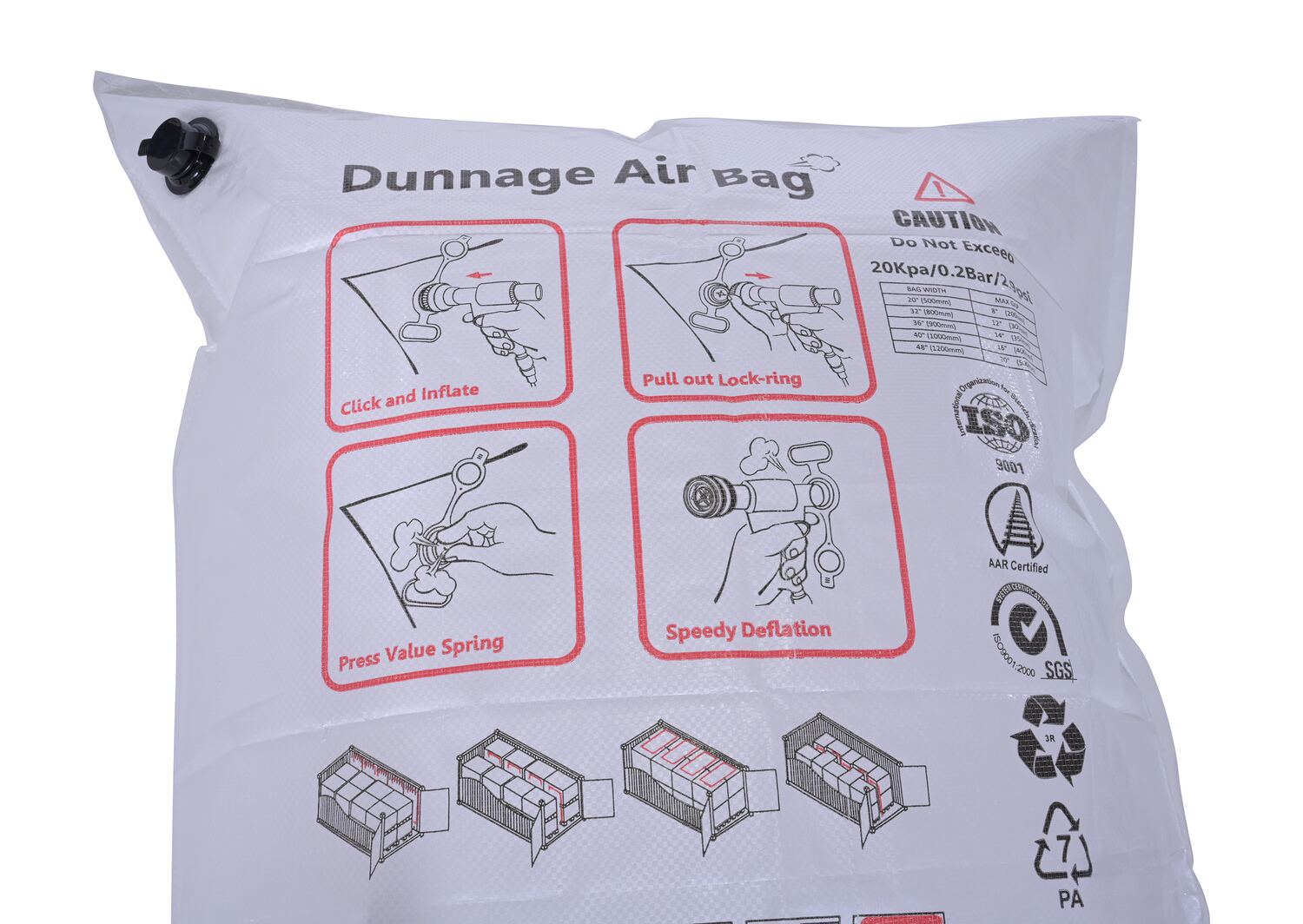

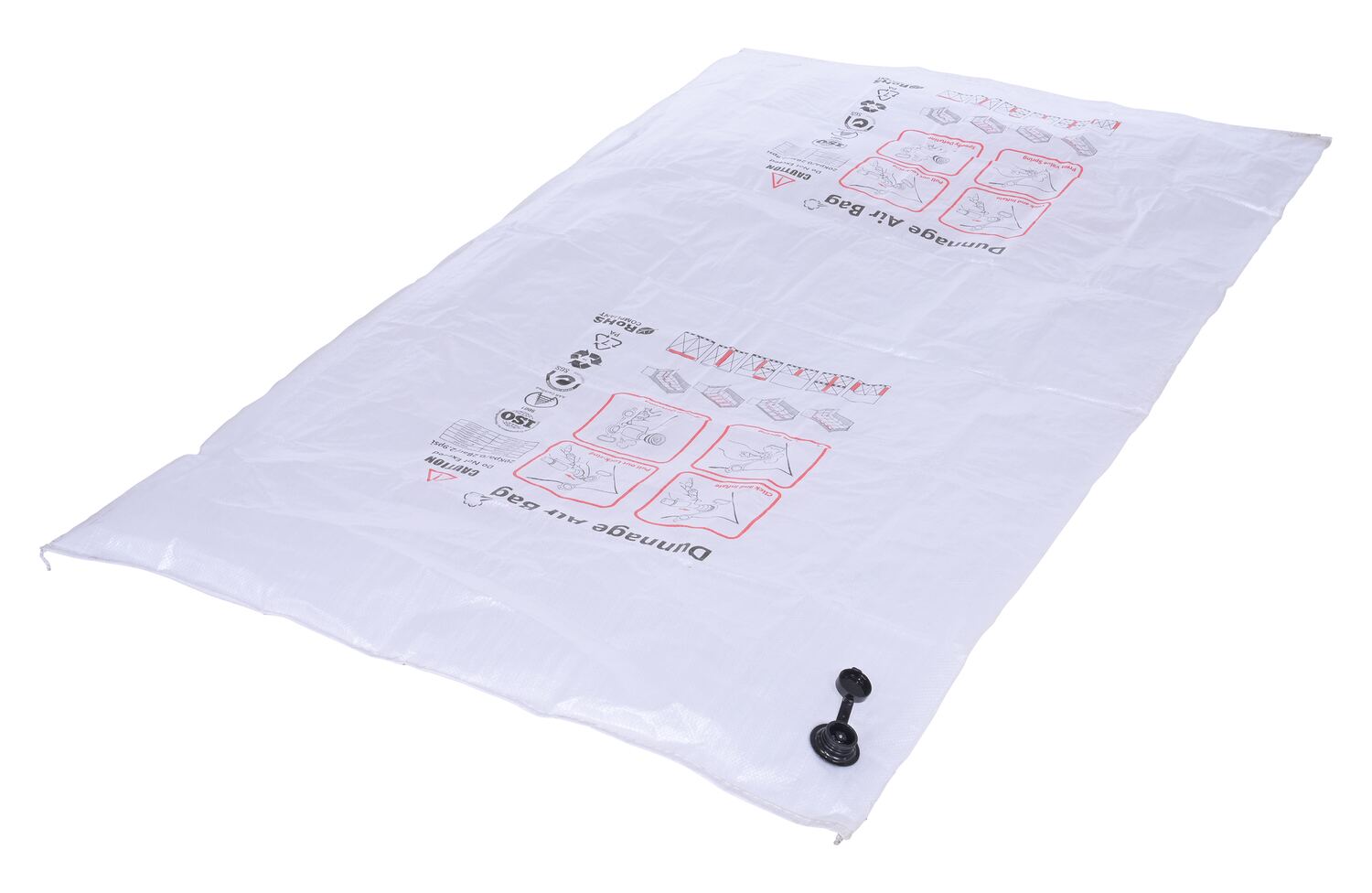

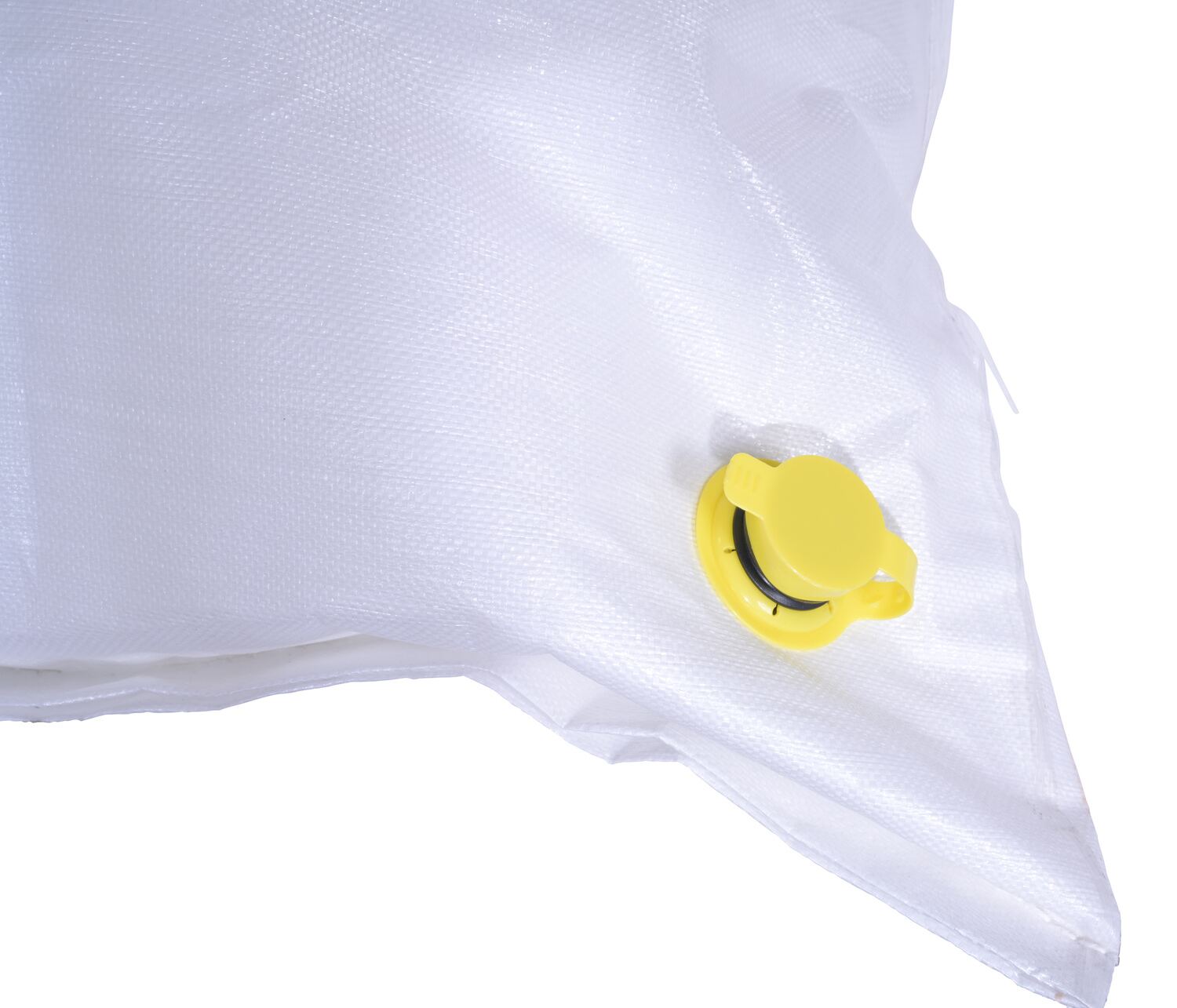

Minimize product shifting and damage in transit. The 2-ply construction consists of a polypropylene weave outer bag protecting a polyethylene inner bag. The bag provides 6 psi pressure seal. Stores flat when empty. Fill with standard shop air. Air Bag Inflation Valve tool offers easy grip for convenient use. Press and hold red vinyl coated lever. The cast zinc body has a chrome plated finish. Air inlet thread female 1/4" NPT. Recommended one time use per bag
- Minimizes product shifting and damage in transit
- 2-Ply construction consists of a polypropylene weave outer bag
- Outer bag protects a polyethylene inner bag
- Can be filled with standard shop air
| AAR Level | Working Pressure | Burst Pressure |
|---|---|---|
| L0 | <0.10 Bar/ 1.45 Psi | 0.4 Bar/ 5.8 Psi |
| L1 | <0.20 Bar/ 2.90 Psi | 0.6 Bar/ 8.7 Psi |
| L2 | <0.40 Bar/ 6.00 Psi | 1.2 Bar/ 17 Psi |
| L3 | <0.55 Bar/ 8.00 Psi | 1.7 Bar/ 25 Psi |
| L4 | <0.70 Bar/ 10.0 Psi | 2.0 Bar/ 30 Psi |
| Flat | <0.20 Bar/ 2.90 Psi | / |
|
||
 |
 |
Quilted Moving Pads
Pallet Cargo Decker
Cargo Bars
E-TRACK Cargo Bar Assist ToolAdditional Models In This Family
BAG-4884-L3
BAG-4884
BAG-I
BAG-4884-L3
BAG-L-IG
BAG-L-IG
BAG-I
BAG-4836-L1
BAG-4836-L3
BAG-L-IG
BAG-4884-L3
BAG-4884-L1
BAG-4884-L3
BAG-L-IG
BAG-4884-L1
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| BAG-4836 |  | 30 Days Limited Warranty | Polypropylene Inflatable Dunnage Bag 48 In. x 36 In. White | Pressure Seal (psi.): 6 Maximum Working Pressure (psi.): 8 | 2 | ||

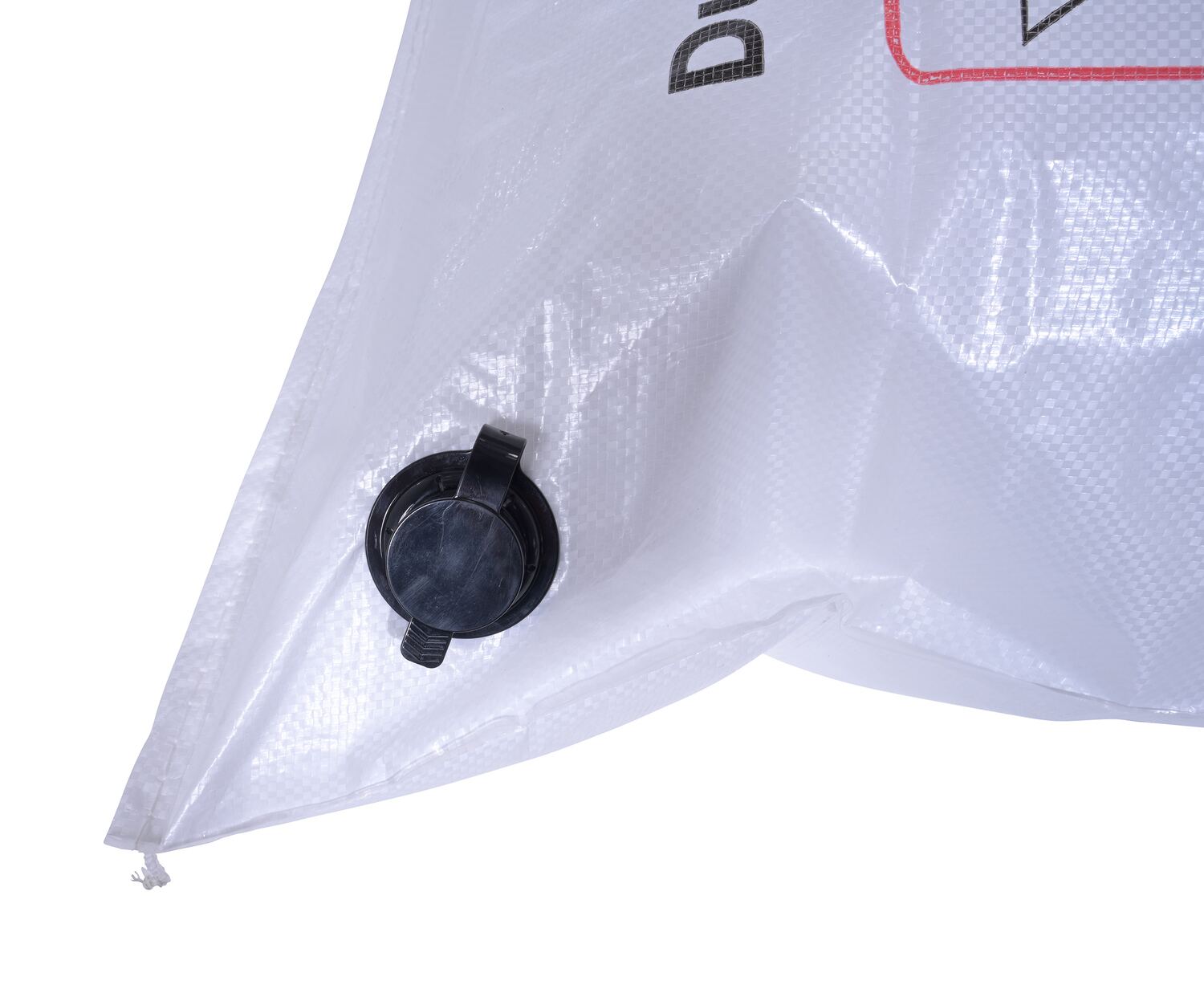

| BAG-4836-L1 | NEW |  | 30 Days Limited Warranty | Polypropylene Inflatable Dunnage Bag 48 In. x 36 In. Level 1 White | Pressure Seal (psi.): 2.9 Maximum Working Pressure (psi.): 8 | 3 | |

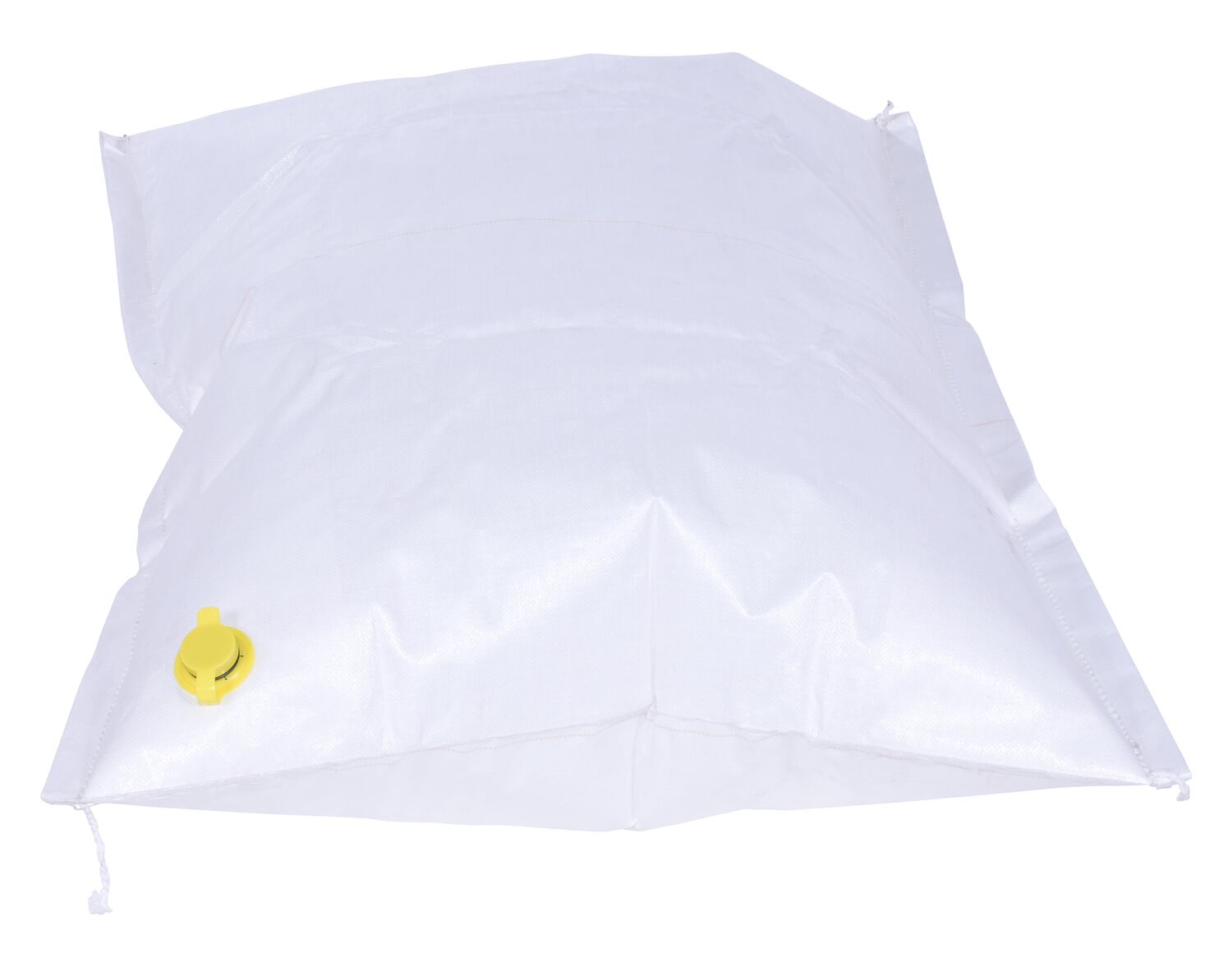

| BAG-4836-L3 | NEW |  | 30 Days Limited Warranty | Polypropylene Inflatable Dunnage Bag 48 In. x 36 In. Level 3 White | Pressure Seal (psi.): 8 Maximum Working Pressure (psi.): 25 | 3 | |
| BAG-4884 |  | 30 Days Limited Warranty | Polypropylene Inflatable Dunnage Bag 48 In. x 84 In. White | Pressure Seal (psi.): 6 Maximum Working Pressure (psi.): 8 | 2 | ||

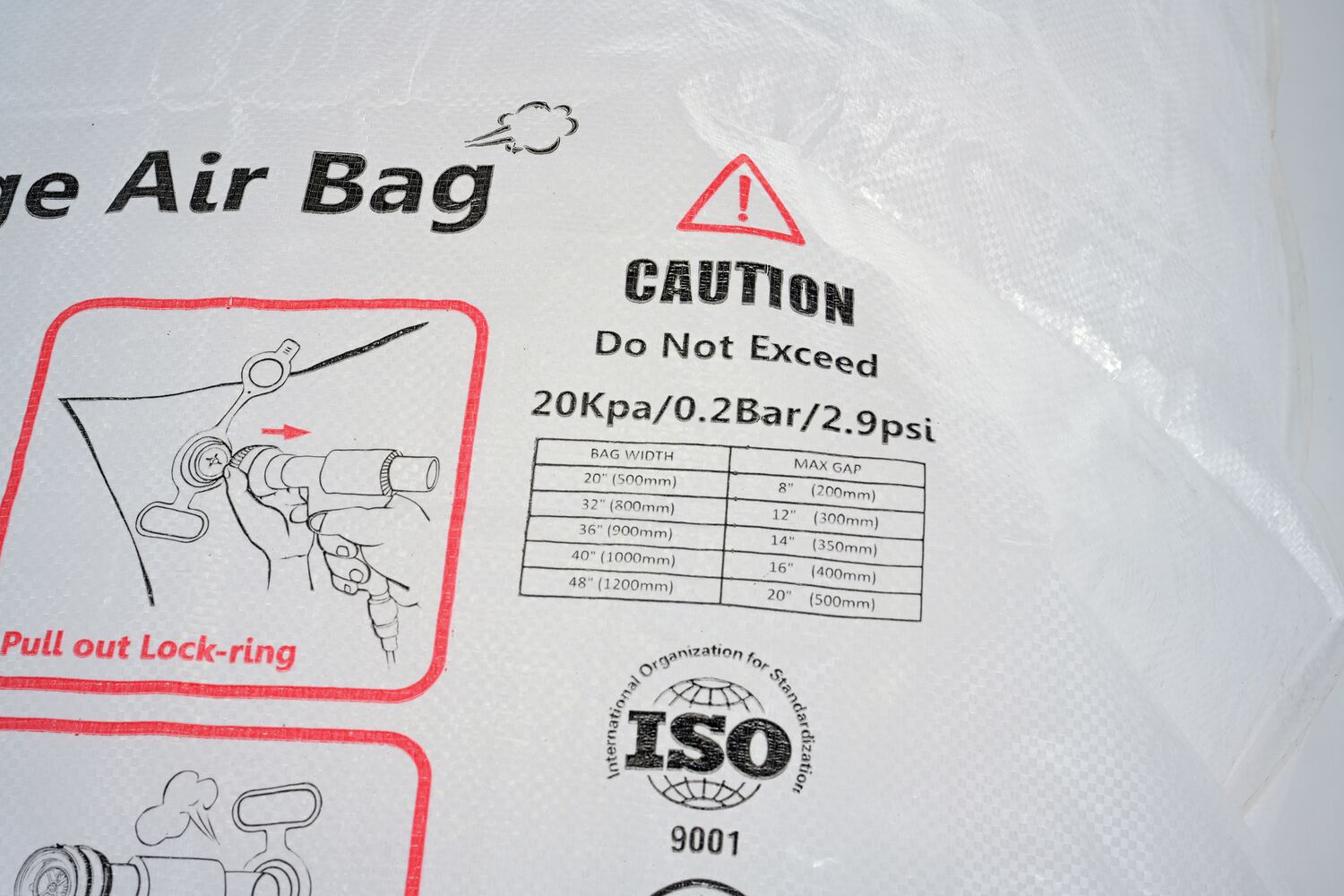

| BAG-4884-L1 | NEW |  | 30 Days Limited Warranty | Polypropylene Inflatable Dunnage Bag 48 In. x 84 In. Level 1 White | Pressure Seal (psi.): 2.9 Maximum Working Pressure (psi.): 8 | 3 | |
| BAG-4884-L3 | NEW |  | 30 Days Limited Warranty | Polypropylene Inflatable Dunnage Bag 48 In. x 84 In. Level 3 White | Pressure Seal (psi.): 8 Maximum Working Pressure (psi.): 25 | 3 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Pressure Seal (psi.): 6
Maximum Working Pressure (psi.): 8
Pressure Seal (psi.): 6
Maximum Working Pressure (psi.): 8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Pressure Seal (psi.): 2.9
Maximum Working Pressure (psi.): 8
Pressure Seal (psi.): 2.9
Maximum Working Pressure (psi.): 8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Pressure Seal (psi.): 8
Maximum Working Pressure (psi.): 25
Pressure Seal (psi.): 8
Maximum Working Pressure (psi.): 25
Unit:
Size: W x L x H
Weight:
Limited Warranty
Pressure Seal (psi.): 6
Maximum Working Pressure (psi.): 8
Pressure Seal (psi.): 6
Maximum Working Pressure (psi.): 8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Pressure Seal (psi.): 2.9
Maximum Working Pressure (psi.): 8
Pressure Seal (psi.): 2.9
Maximum Working Pressure (psi.): 8
Unit:
Size: W x L x H
Weight:
Limited Warranty
Pressure Seal (psi.): 8
Maximum Working Pressure (psi.): 25
Pressure Seal (psi.): 8
Maximum Working Pressure (psi.): 25
For More Details of the Option Click the Red Model Button

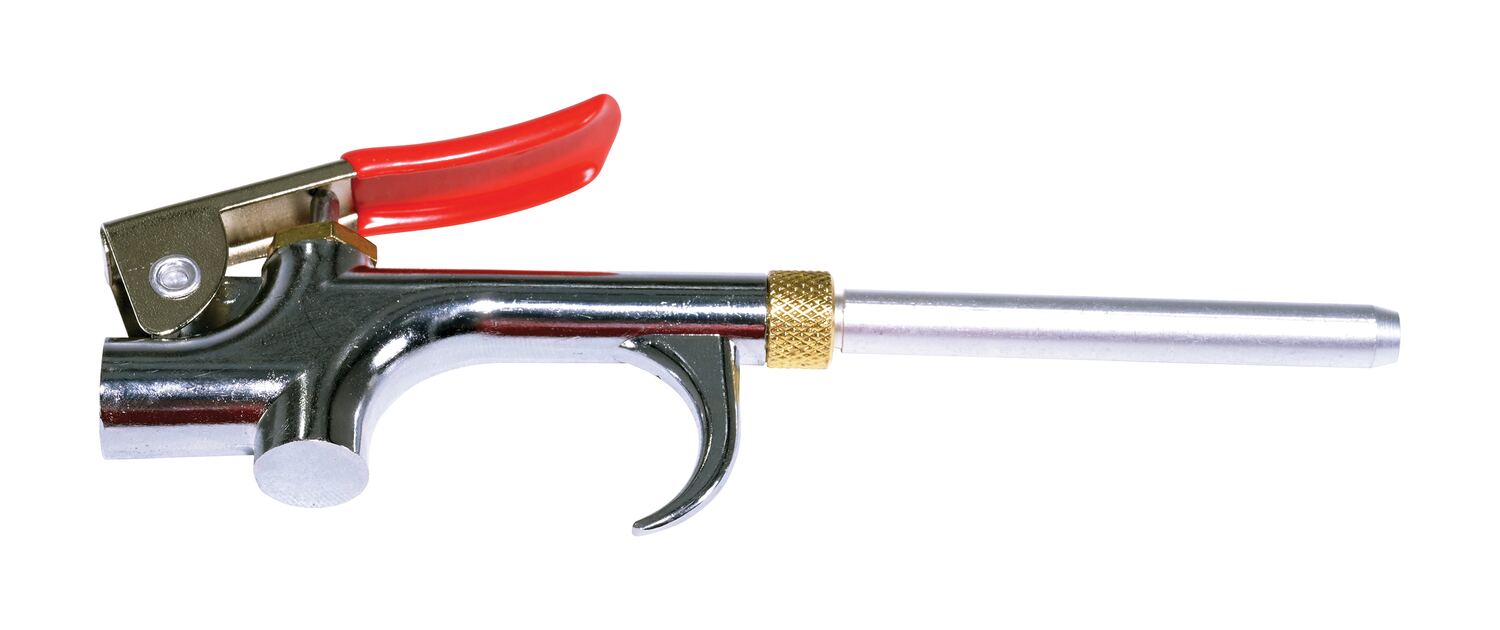

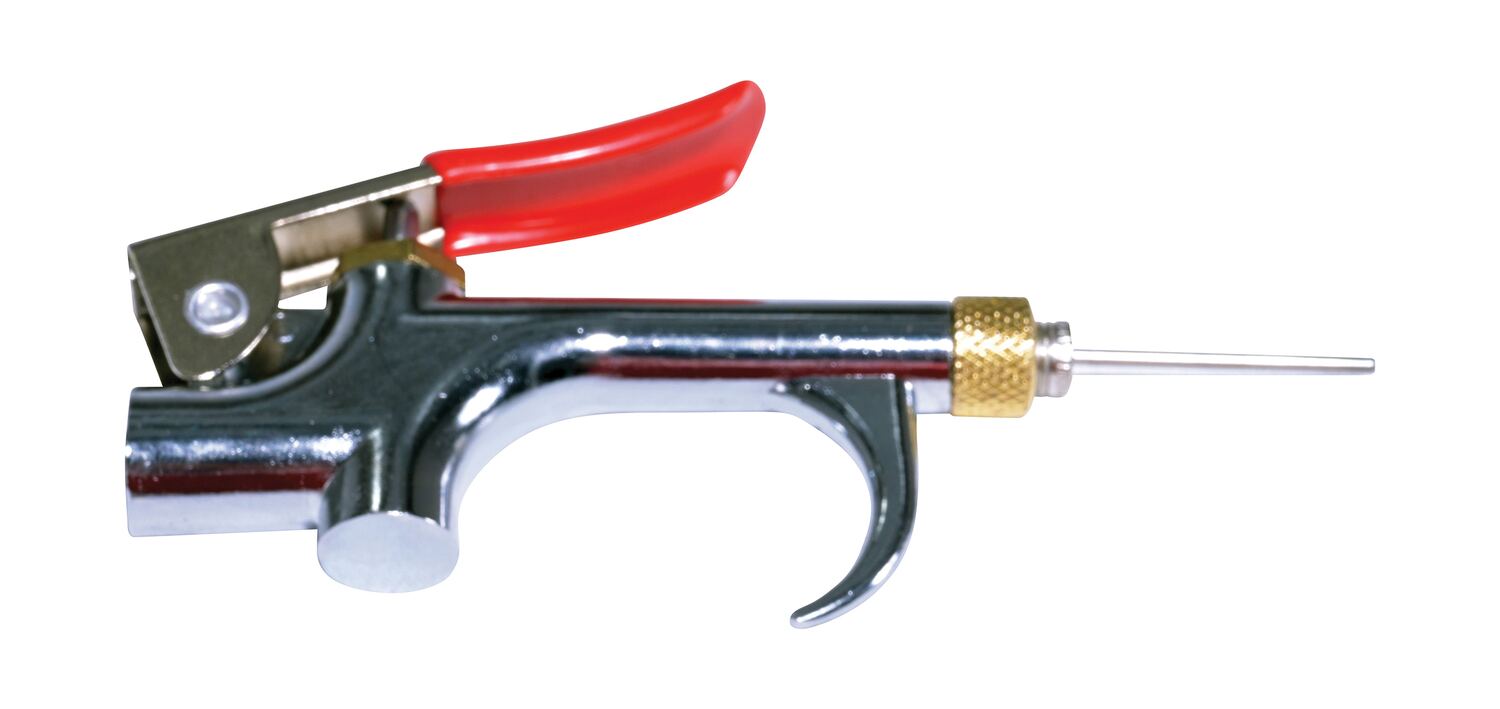

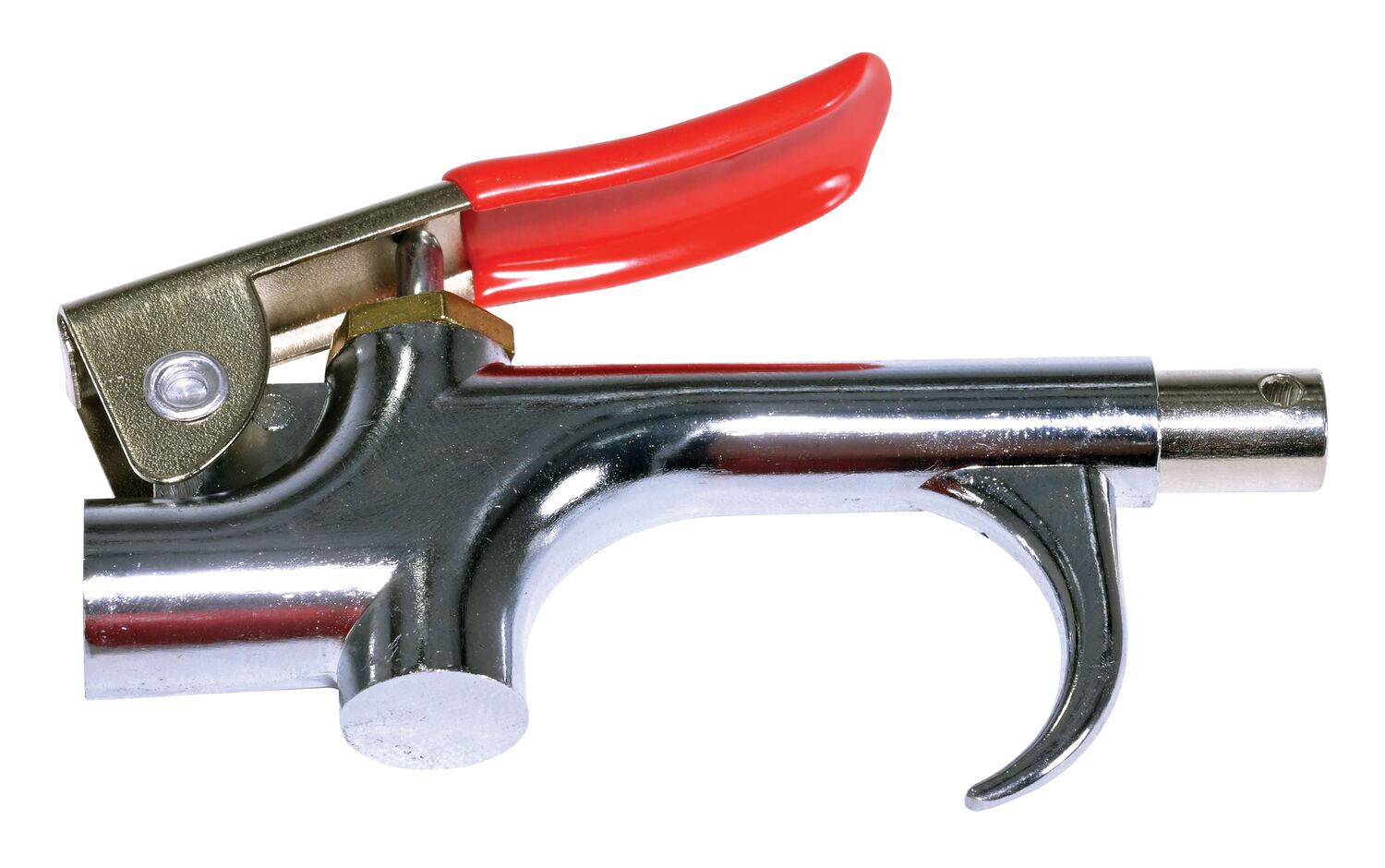

| BAG-I |  | 30 Days Limited Warranty | Zinc 1/4 In. Thread Inflation Valve For Dunnage Bags | Air inlet thread NPT female (in.): 1/4 | 1 | |

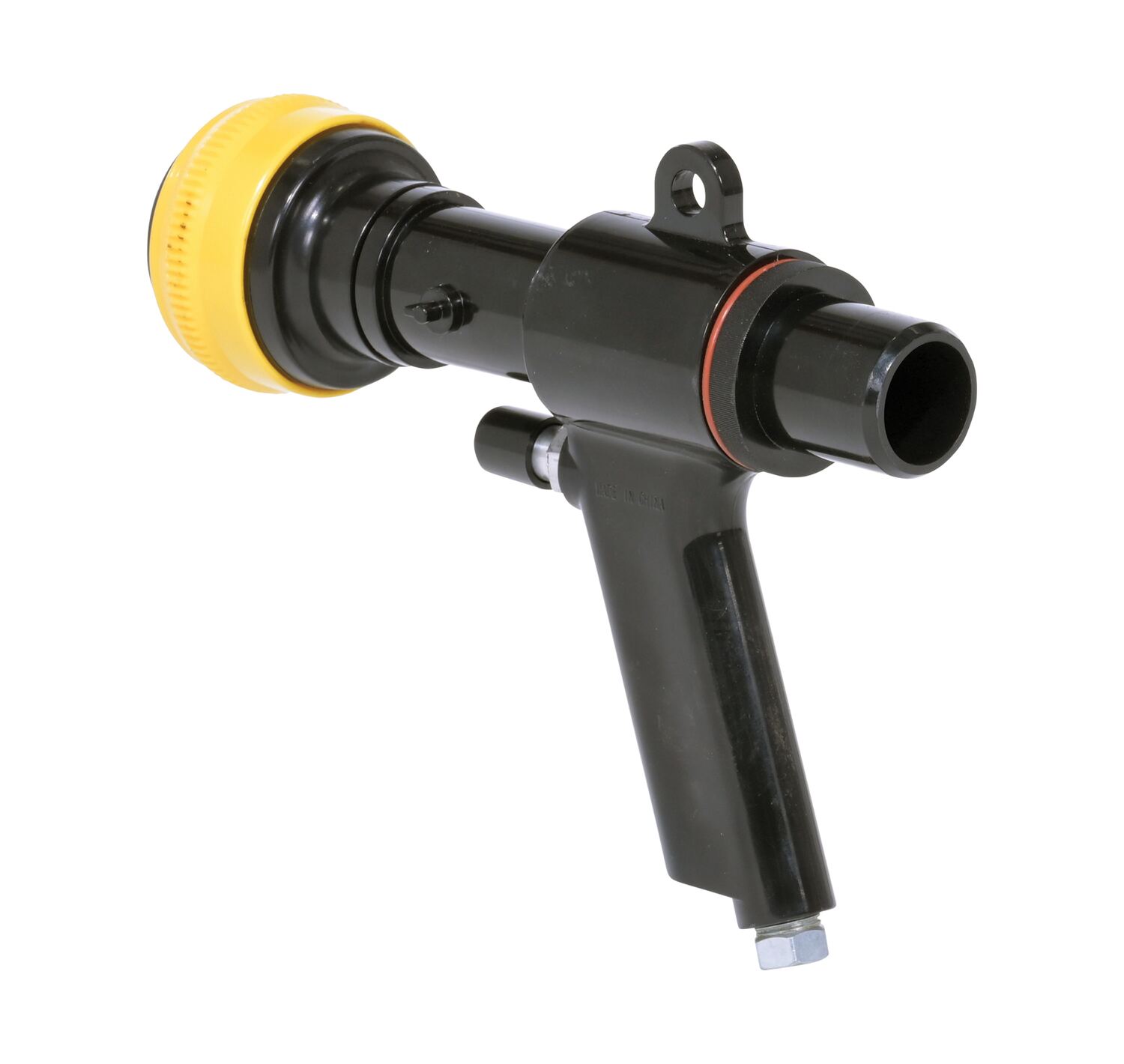

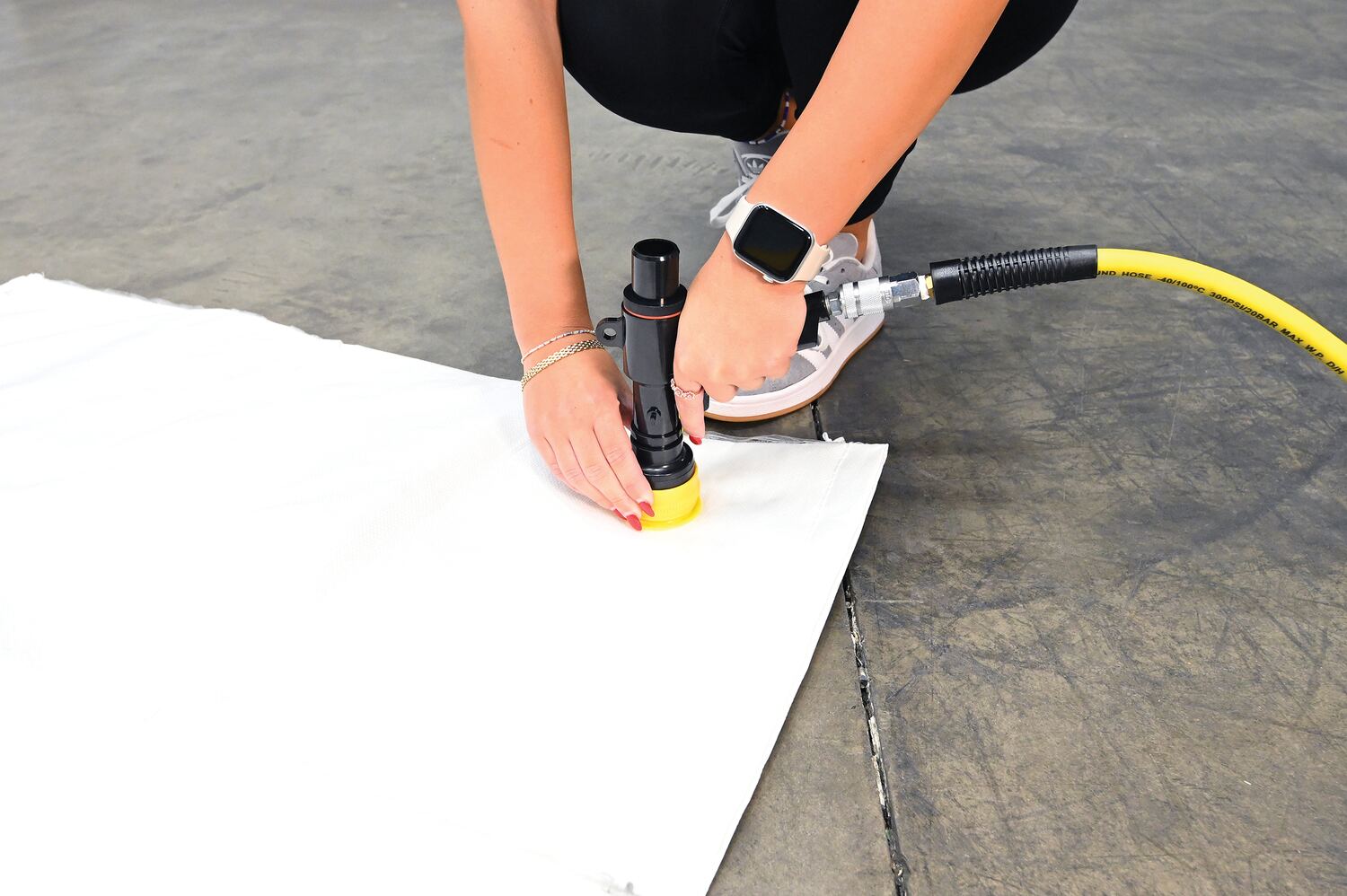

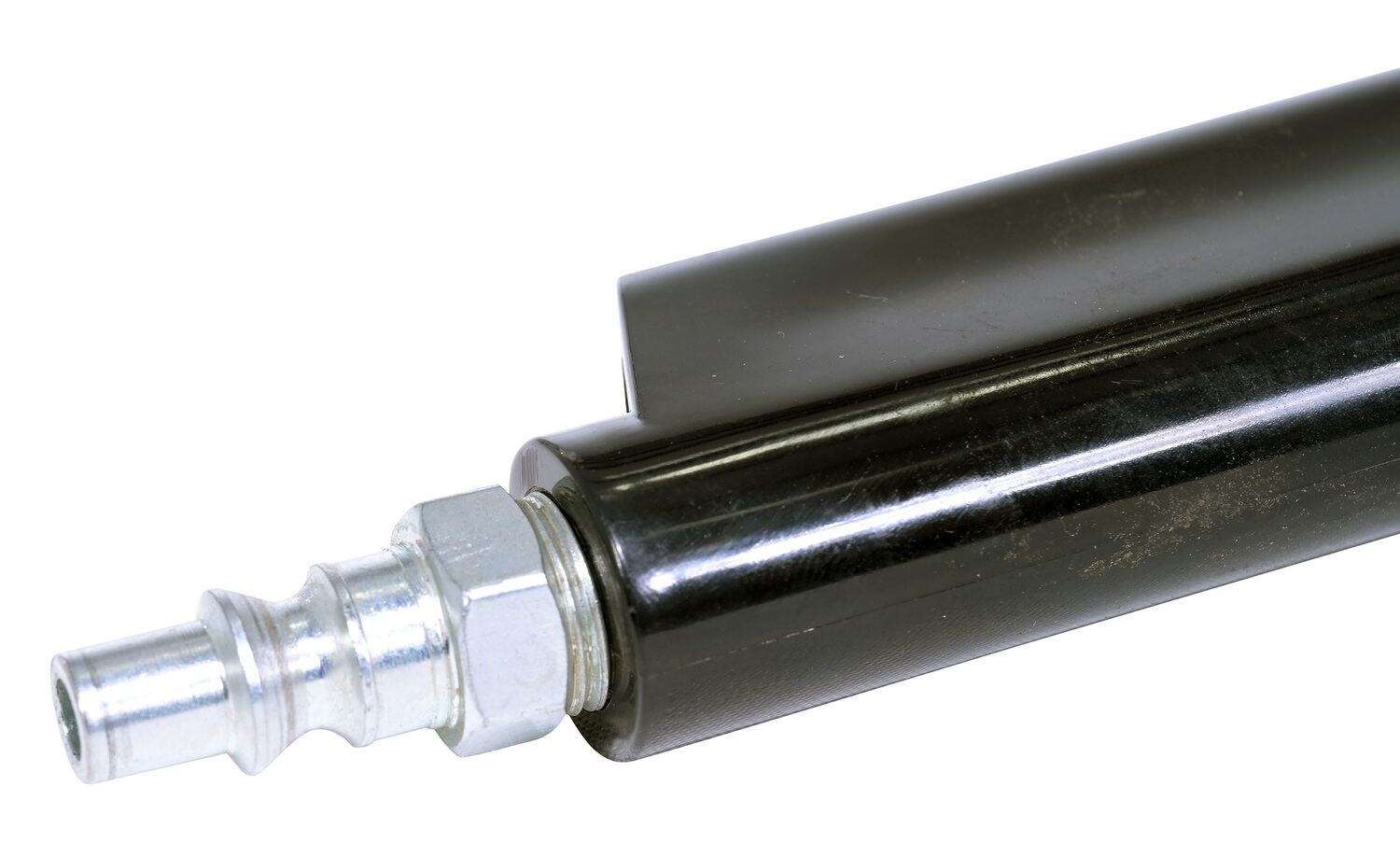

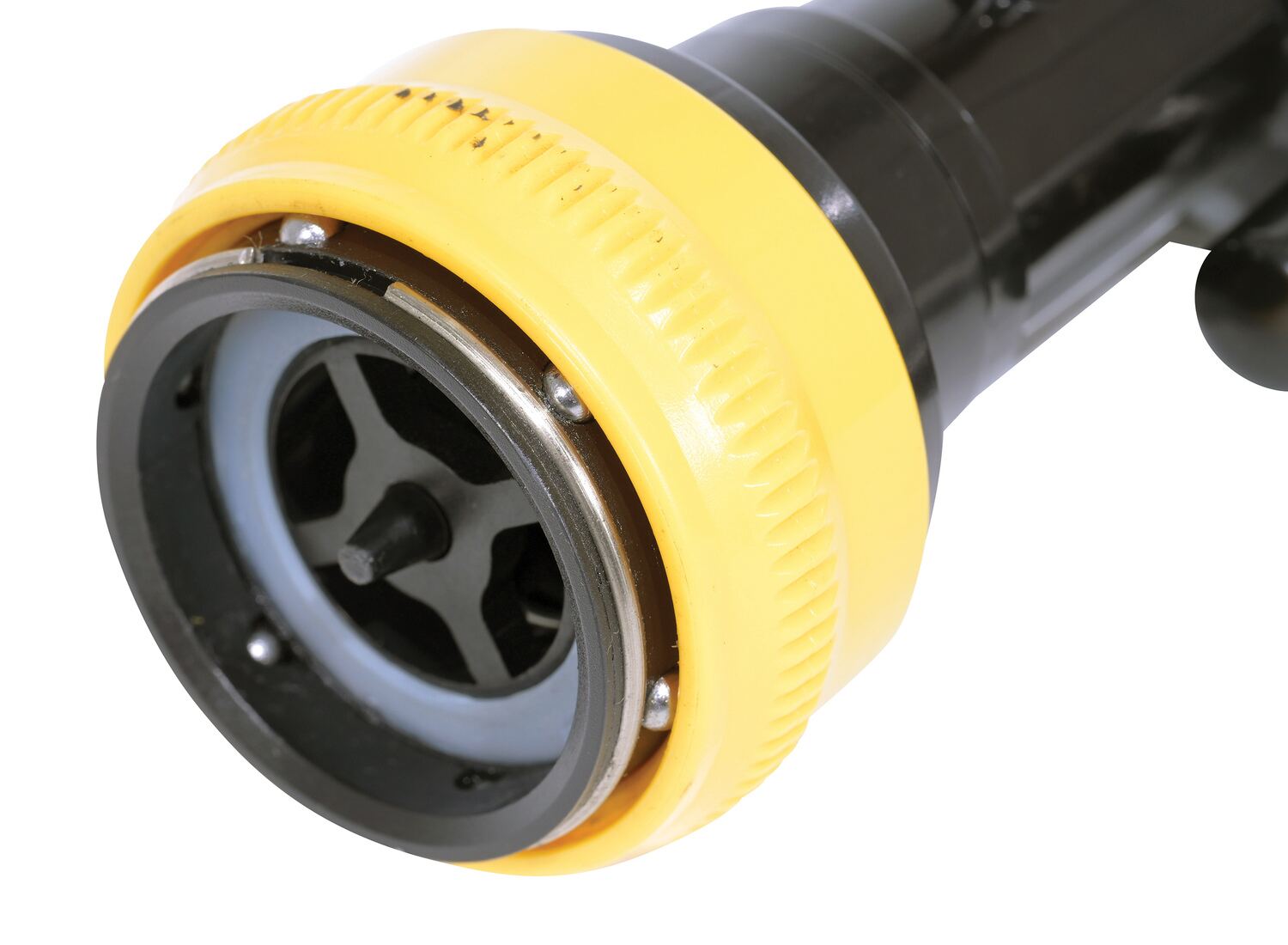

| BAG-L-IG | NEW | | 30 Days Limited Warranty | Dunnage Bag Inflation Gun for Bag L1 & L3 Black | Air inlet thread NPT female (in.): 1/4 | 2 |
.
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Other PDF's
Directory Links Of Available PDF's For All Products
Q: Are the bags recyclable?
A: These are made of polypropylene outer and polyethylene inner. Both are recyclable
 |
|||||||||||||||||||||||||||||||||||||
