Forklift Hitch

- - - -

Description
Model Chart
PDF's
Image Gallery
FTTM-2_N.jpg FTTM-2_A.jpg FTTM-2_L.jpg FTTM-2_C.jpg
FTTM-2_D.jpg FTTM-2_P.jpg FTTM-2_F.jpg FTTM-2_O.jpg
Forklift Hitch

model: FTTM-2



Featured Fork Truck Attachments


Bulk Bag Filling Station
Bulk Containers
Hoisting Hooks & Hitches
Hydraulic Powered Fork Truck Booms
H Style Bump & Dump Hoppers
Fork Truck Drum Carrier/Rotators
Trash Bin Equipment
Coil Rams/Lifters
Stretch Wrap Caddy
model chart

Product Family Overview

Print Friendly

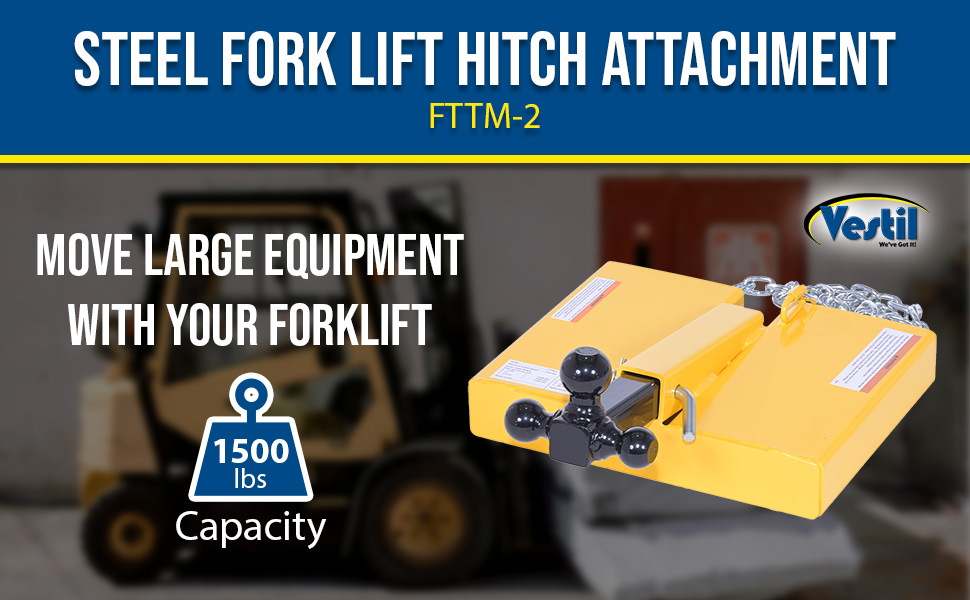

Forklift Hitch
SERIES: FTTM

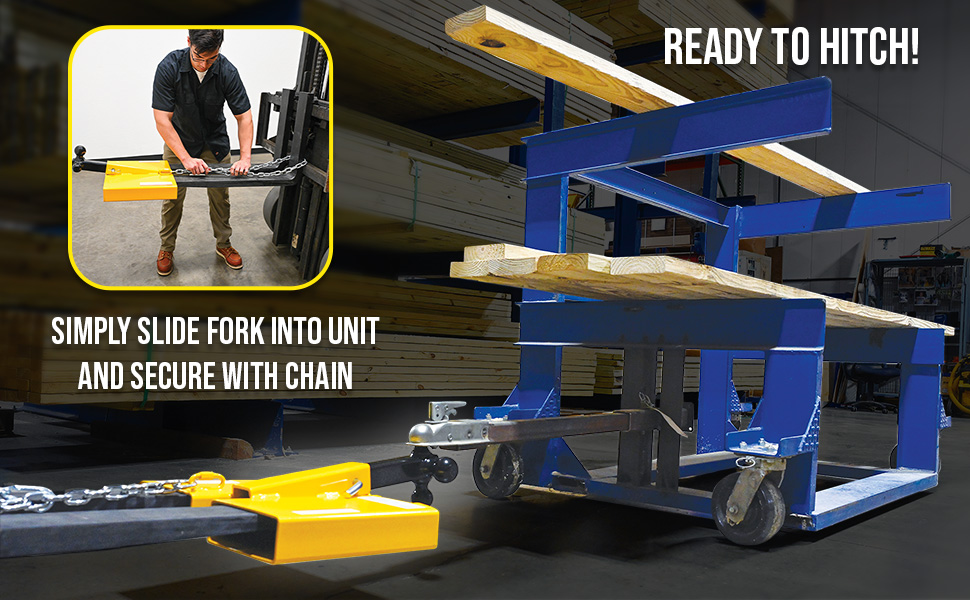

The Fork Lift Hitch is a superb addition to most manufacturing and maintenance facilities. Strong steel construction allows for long term use, even in the harshest of conditions. The hitch includes a yellow finish for clear visibility. To use slide the fork lift forks in to the unit and secure safety chain to fork lift. Once in place, the unit is ready to be hitched to the desired equipment. Includes 56" long chain to secure to fork lift.

Standard Features:

  • Strong steel construction
  • Yellow finish for clear visibility
  • Maximum tongue load: 1,500 lbs.
  • Maximum push capacity for 1-7/8" ball: 2,000 lbs.
  • Maximum push capacity for 2" ball: 3,500 lbs.
  • Maximum push capacity for 2-5/16" ball: 7,500 lbs.
  • 3-ball hitch attachment can be removed & rotated to desired ball.
  • Includes a 56" long chain to secure to forklift.

Unit Not Intended For Pulling!

The Fork Lift Hitch is a superb addition to most manufacturing and maintenance facilities. Strong steel construction allows for long term use, even in the harshest of conditions. The hitch includes a yellow finish for clear visibility. To use slide the fork lift forks in to the unit and secure safety chain to fork lift. Once in place, the unit is ready to be hitched to the desired equipment. Includes 56" long chain to secure to fork lift.

Standard Features:

  • Strong steel construction
  • Yellow finish for clear visibility
  • Maximum tongue load: 1,500 lbs.
  • Maximum push capacity for 1-7/8" ball: 2,000 lbs.
  • Maximum push capacity for 2" ball: 3,500 lbs.
  • Maximum push capacity for 2-5/16" ball: 7,500 lbs.
  • 3-ball hitch attachment can be removed & rotated to desired ball.
  • Includes a 56" long chain to secure to forklift.

Unit Not Intended For Pulling!

Other Hoisting Hooks & Hitch

 Hoisting Hooks Forklift Lifting Beam Fork Truck Bases with Optional Tow Balls & Pintle Hook Hooks with Shackle

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.

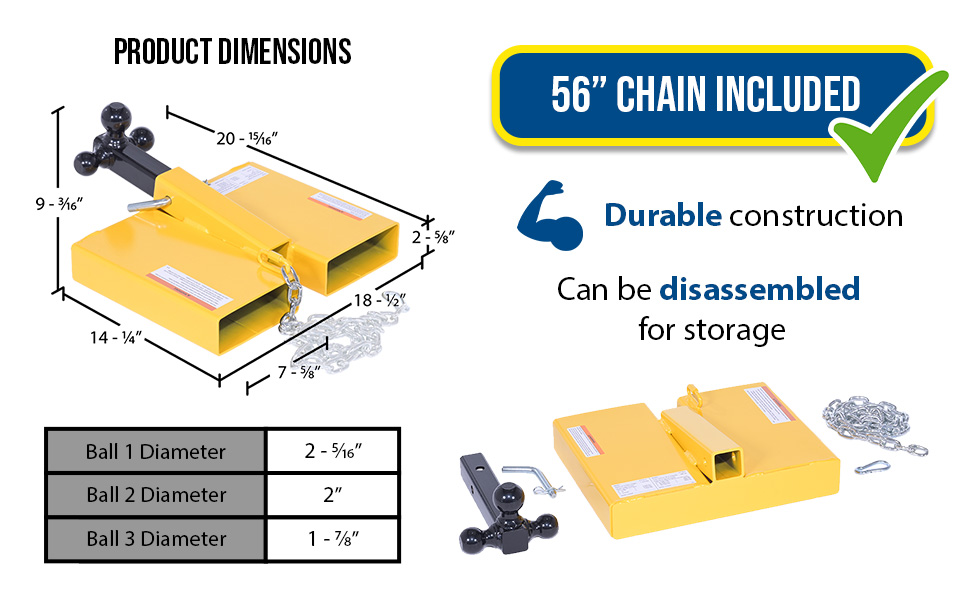

Model # Description Attributes Net Wt.
(lbs)
FTTM-2 POPULAR FTTM-230 Days Limited WarrantySteel Fork Lift Hitch Attachment 20-9/16 In x 14-1/2 In x 8-1/16 In 1500 Lb. Capacity YellowMaximum Tongue Load (lb.): 1,500
Usable Fork Pockets Width/Height (in.): 7-5/8 x 2-5/8		52

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

FTTM-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Maximum Tongue Load (lb.): 1,500
Usable Fork Pockets Width/Height (in.): 7-5/8 x 2-5/8
Maximum Tongue Load (lb.): 1,500
Usable Fork Pockets Width/Height (in.): 7-5/8 x 2-5/8
Forklift Hitch PDF's will open in a new window when clicked.

Manuals


FTTM-2
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


FTTM-2

Testing Certificates


FTTM-2

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Forklift Hitch Mailing Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: What is the thickness of the metal where the fork pockets slide in?

A: The fork pockets are 3/16" thick.




Related or Similar Products:

Hooks with Shackle
Product

Hooks with Shackle

Three Ball Tow Hitch
Product

Three Ball Tow Hitch

Fork Truck Bases with Optional Tow Balls & Pintle Hook
Product

Fork Truck Bases with Optional Tow Balls & Pintle Hook

Hook Plates
Product

Hook Plates

Forklift Lifting Beam
Product

Forklift Lifting Beam

Hoisting Hooks
Product

Hoisting Hooks

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Forklift Hitch




The Fork Lift Hitch is a superb addition to most manufacturing and maintenance facilities. Strong steel construction allows for long term use, even in the harshest of conditions. The hitch includes a yellow finish for clear visibility. To use slide the fork lift forks in to the unit and secure safety chain to fork lift. Once in place, the unit is ready to be hitched to the desired equipment. Includes 56" long chain to secure to fork lift.

Standard Features:

  • Strong steel construction
  • Yellow finish for clear visibility
  • Maximum tongue load: 1,500 lbs.
  • Maximum push capacity for 1-7/8" ball: 2,000 lbs.
  • Maximum push capacity for 2" ball: 3,500 lbs.
  • Maximum push capacity for 2-5/16" ball: 7,500 lbs.
  • 3-ball hitch attachment can be removed & rotated to desired ball.
  • Includes a 56" long chain to secure to forklift.

Unit Not Intended For Pulling!


Model # Description Attributes Net Wt.
(lbs)
FTTM-2 FTTM-2Steel Fork Lift Hitch Attachment 20-9/16 In x 14-1/2 In x 8-1/16 In 1500 Lb. Capacity YellowMaximum Tongue Load (lb.): 1,500
Usable Fork Pockets Width/Height (in.): 7-5/8 x 2-5/8		52
