Product Family Overview

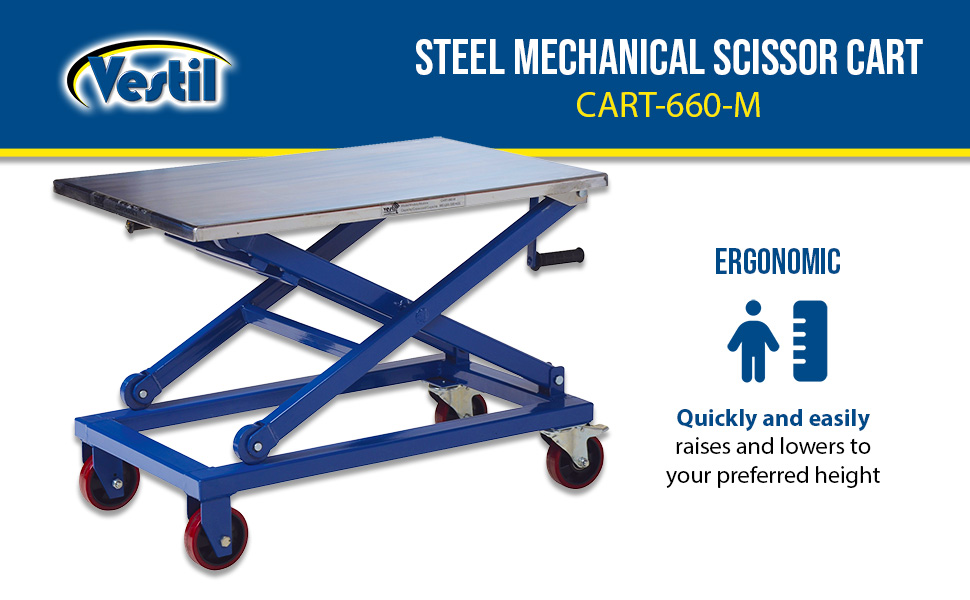

Mechanical Scissor Carts
SERIES: CART

When lifting and transporting are both essential, look no further than the Mechanical Scissor Cart. The centrally located hand crank allows the user to raise and lower the platform to a more exact level. A large platform gives the ability to load items in a variety of sizes. Since the platform can be maneuvered to a specific height, the unit can be positioned to best fit the users' needs for a more ergonomically friendly experience. Poly casters are included for a smooth roll on a variety of surfaces.*Smooth steel top minimizes abrasions

  • Hand crank for precise positioning
  • Large capacity for lifting objects both big and small
  • Polyurethane casters for easy rolling
  • Smooth steel top minimizes abrasions

Partially Stainless Steel Unit (CART-660-M-PSS)

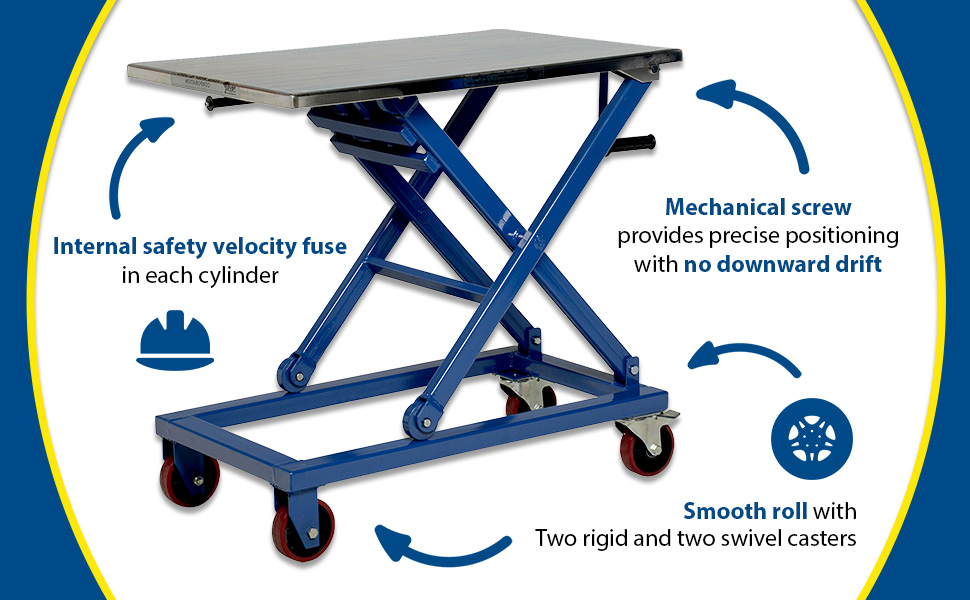

Raise and lower material quickly and easily with Mechanical Scissor Carts. Carts roll smoothly on two rigid and two swivel poly-on-ploy casters. Mechanical screw drive provides precise positioning with no downward drift. The partially stainless steel cart features a stainless steel platform, frame, handle, caster rigs and hardware. Crank assembly and scissor legs are zinc plated/painted.

When lifting and transporting are both essential, look no further than the Mechanical Scissor Cart. The centrally located hand crank allows the user to raise and lower the platform to a more exact level. A large platform gives the ability to load items in a variety of sizes. Since the platform can be maneuvered to a specific height, the unit can be positioned to best fit the users' needs for a more ergonomically friendly experience. Poly casters are included for a smooth roll on a variety of surfaces.*Smooth steel top minimizes abrasions

  • Hand crank for precise positioning
  • Large capacity for lifting objects both big and small
  • Polyurethane casters for easy rolling
  • Smooth steel top minimizes abrasions

Partially Stainless Steel Unit (CART-660-M-PSS)

Raise and lower material quickly and easily with Mechanical Scissor Carts. Carts roll smoothly on two rigid and two swivel poly-on-ploy casters. Mechanical screw drive provides precise positioning with no downward drift. The partially stainless steel cart features a stainless steel platform, frame, handle, caster rigs and hardware. Crank assembly and scissor legs are zinc plated/painted.

Additional Models In This Family

CART-330-M

model CART-330-M

CART-660-M

model CART-660-M

CART-1000-M

model CART-1000-M

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

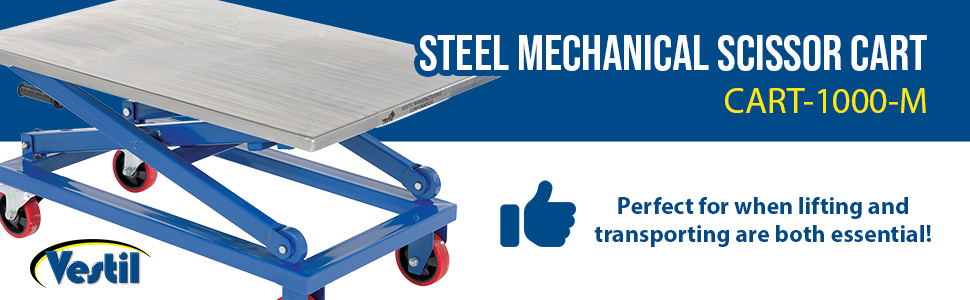

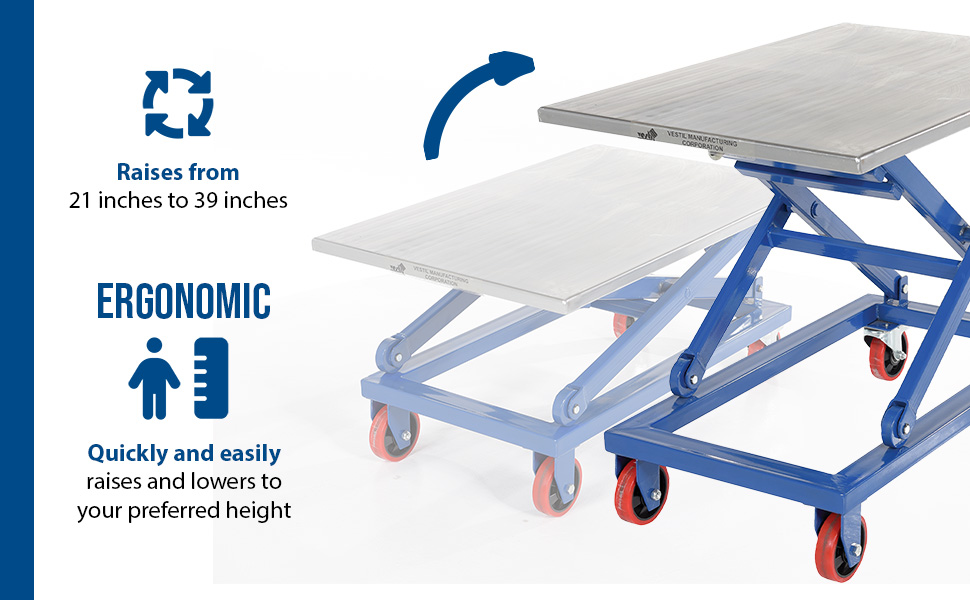

CART-1000-M CART-1000-M1 Year Limited WarrantySteel Mechanical Scissor Cart 25-1/2 In. x 39-1/4 1000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Usable Width (in.): 25-1/2
234

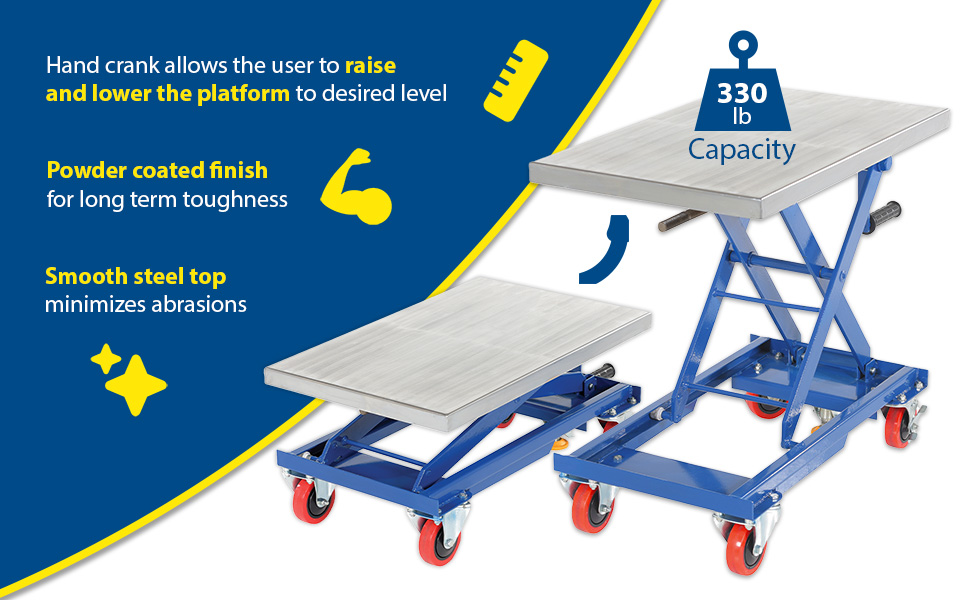

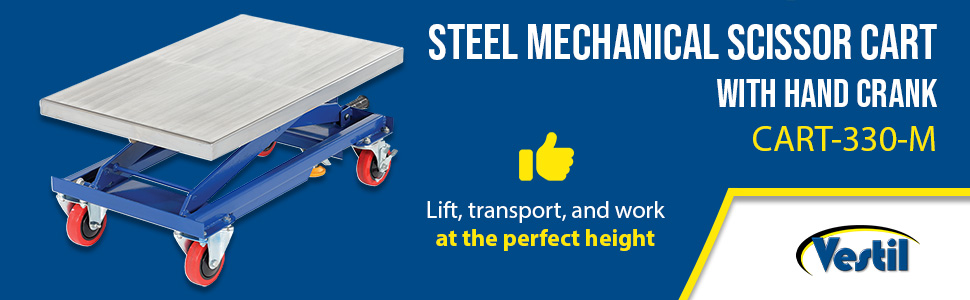

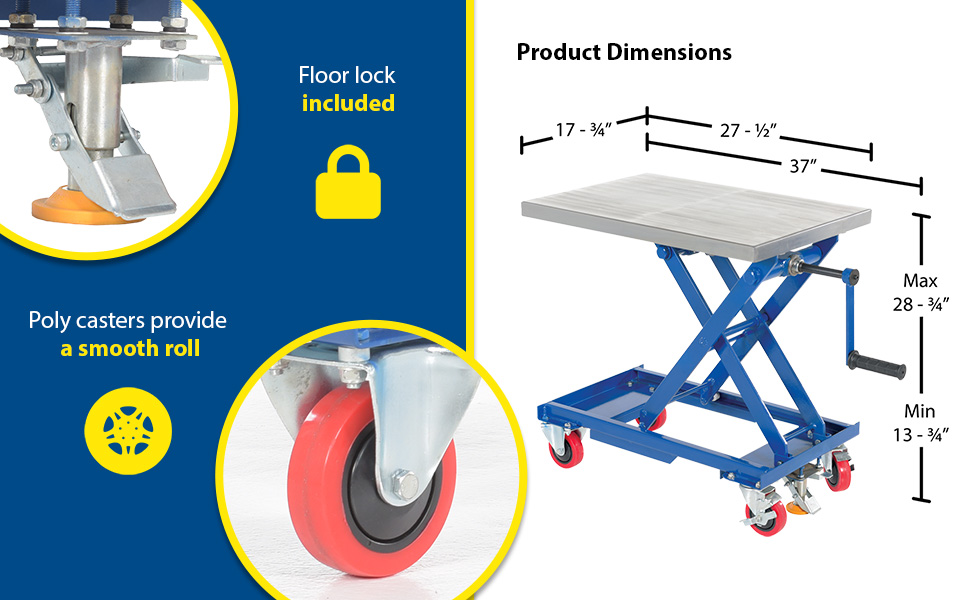

CART-330-M CART-330-M1 Year Limited WarrantySteel Mechanical Scissor Cart with Hand Crank 18 In. x 28 In. 330 Lb. Capacity Blue/SilverUniform Capacity (lb.): 330
Usable Width (in.): 17-3/4
96

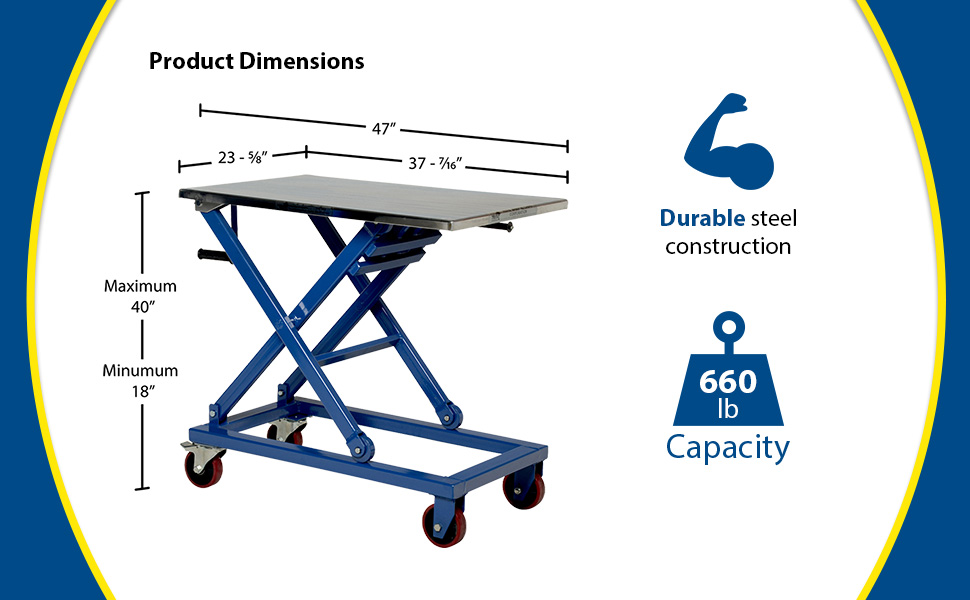

CART-660-M POPULAR CART-660-M1 Year Limited WarrantySteel Mechanical Scissor Cart 37 In. x 23-1/2 In. 660 Lb. Capacity Blue/SilverUniform Capacity (lb.): 660
Platform Width (in.): 23-1/2
190
CART-660-M-PSS CART-660-M-PSS1 Year Limited WarrantyPartial Stainless Steel Mechanical Scissor Cart 37 In. x 23-1/2 In. 660 Lb. Capacity Blue/SilverUniform Capacity (lb.): 660
Platform Width (in.): 23-1/2
148

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

CART-1000-M
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Usable Width (in.): 25-1/2
Uniform Capacity (lb.): 1000
Usable Width (in.): 25-1/2

CART-330-M
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 330
Usable Width (in.): 17-3/4
Uniform Capacity (lb.): 330
Usable Width (in.): 17-3/4

CART-660-M
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 660
Platform Width (in.): 23-1/2
Uniform Capacity (lb.): 660
Platform Width (in.): 23-1/2

CART-660-M-PSS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 660
Platform Width (in.): 23-1/2
Uniform Capacity (lb.): 660
Platform Width (in.): 23-1/2

Mechanical Scissor Carts PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


CART-1000-M

CART-330-M

CART-660-M

CART-660-M-PSS

SDS Sheets

Hydraulic Oil SDS Sheet for: CART-660-M
Hydraulic Oil SDS Sheet for: CART-660-M-PSS

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: Is the CART-1000-M ANSI certified?

A: Yes the CART-100-M is ANSI certified.






Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Mechanical Scissor Carts




When lifting and transporting are both essential, look no further than the Mechanical Scissor Cart. The centrally located hand crank allows the user to raise and lower the platform to a more exact level. A large platform gives the ability to load items in a variety of sizes. Since the platform can be maneuvered to a specific height, the unit can be positioned to best fit the users' needs for a more ergonomically friendly experience. Poly casters are included for a smooth roll on a variety of surfaces.*Smooth steel top minimizes abrasions

  • Hand crank for precise positioning
  • Large capacity for lifting objects both big and small
  • Polyurethane casters for easy rolling
  • Smooth steel top minimizes abrasions

Partially Stainless Steel Unit (CART-660-M-PSS)

Raise and lower material quickly and easily with Mechanical Scissor Carts. Carts roll smoothly on two rigid and two swivel poly-on-ploy casters. Mechanical screw drive provides precise positioning with no downward drift. The partially stainless steel cart features a stainless steel platform, frame, handle, caster rigs and hardware. Crank assembly and scissor legs are zinc plated/painted.



Model # Description Attributes Net Wt.
(lbs)
CART-1000-M CART-1000-MSteel Mechanical Scissor Cart 25-1/2 In. x 39-1/4 1000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Usable Width (in.): 25-1/2
234
CART-330-M CART-330-MSteel Mechanical Scissor Cart with Hand Crank 18 In. x 28 In. 330 Lb. Capacity Blue/SilverUniform Capacity (lb.): 330
Usable Width (in.): 17-3/4
96
CART-660-M CART-660-MSteel Mechanical Scissor Cart 37 In. x 23-1/2 In. 660 Lb. Capacity Blue/SilverUniform Capacity (lb.): 660
Platform Width (in.): 23-1/2
190
CART-660-M-PSS CART-660-M-PSSPartial Stainless Steel Mechanical Scissor Cart 37 In. x 23-1/2 In. 660 Lb. Capacity Blue/SilverUniform Capacity (lb.): 660
Platform Width (in.): 23-1/2
148
