Electric Powered Tuggers (E-TUG, E-TUG-HD)

	Model #				Description	Attributes	Net Wt. (lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

For More Details of the Option Click the Red Model Button

Model	Details	Wt.
E-TUG-ABMH	Steel Adjustable Ball Mount Hitch For E-Tug Models	12

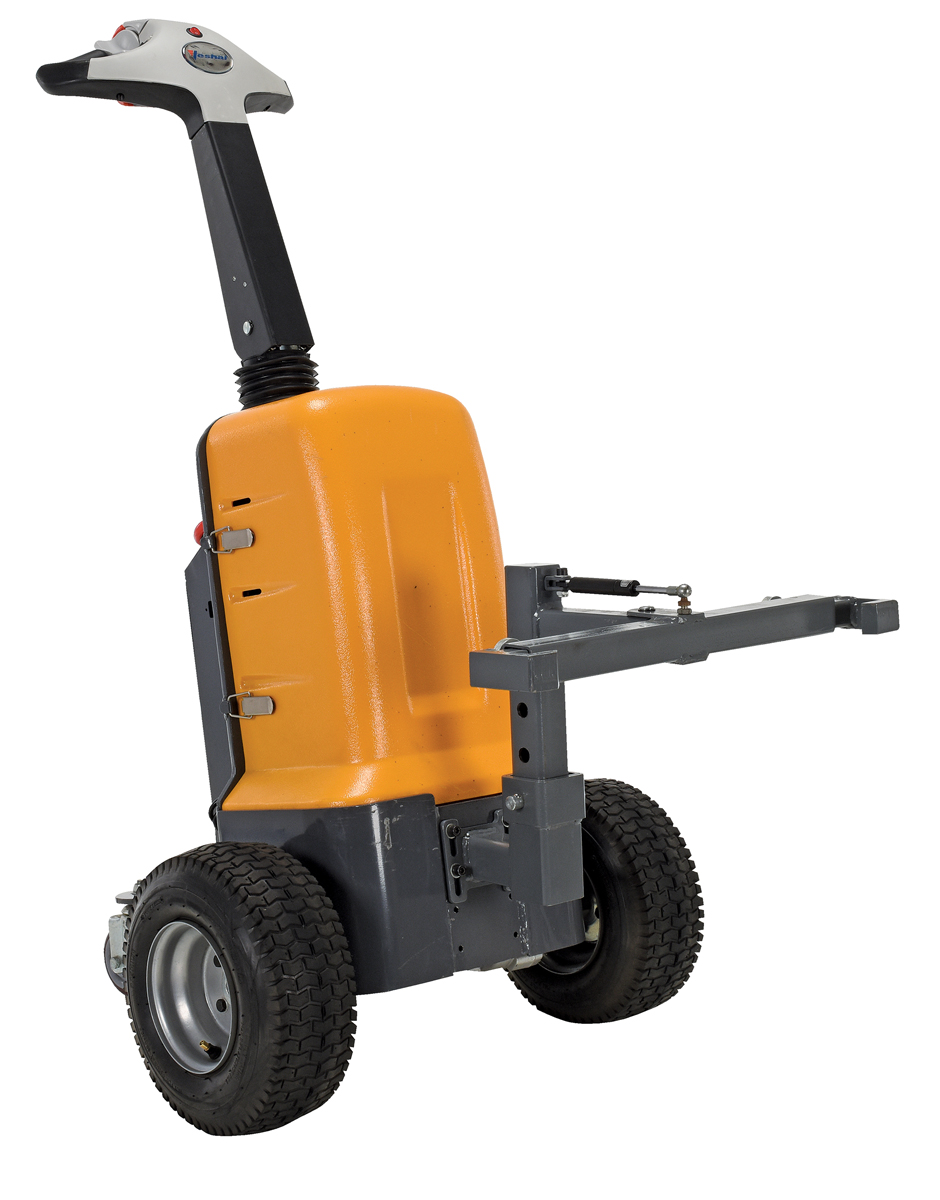

E-TUG-ADSH	Steel Adjustable Double Sided Hook For E-Tug Models	22

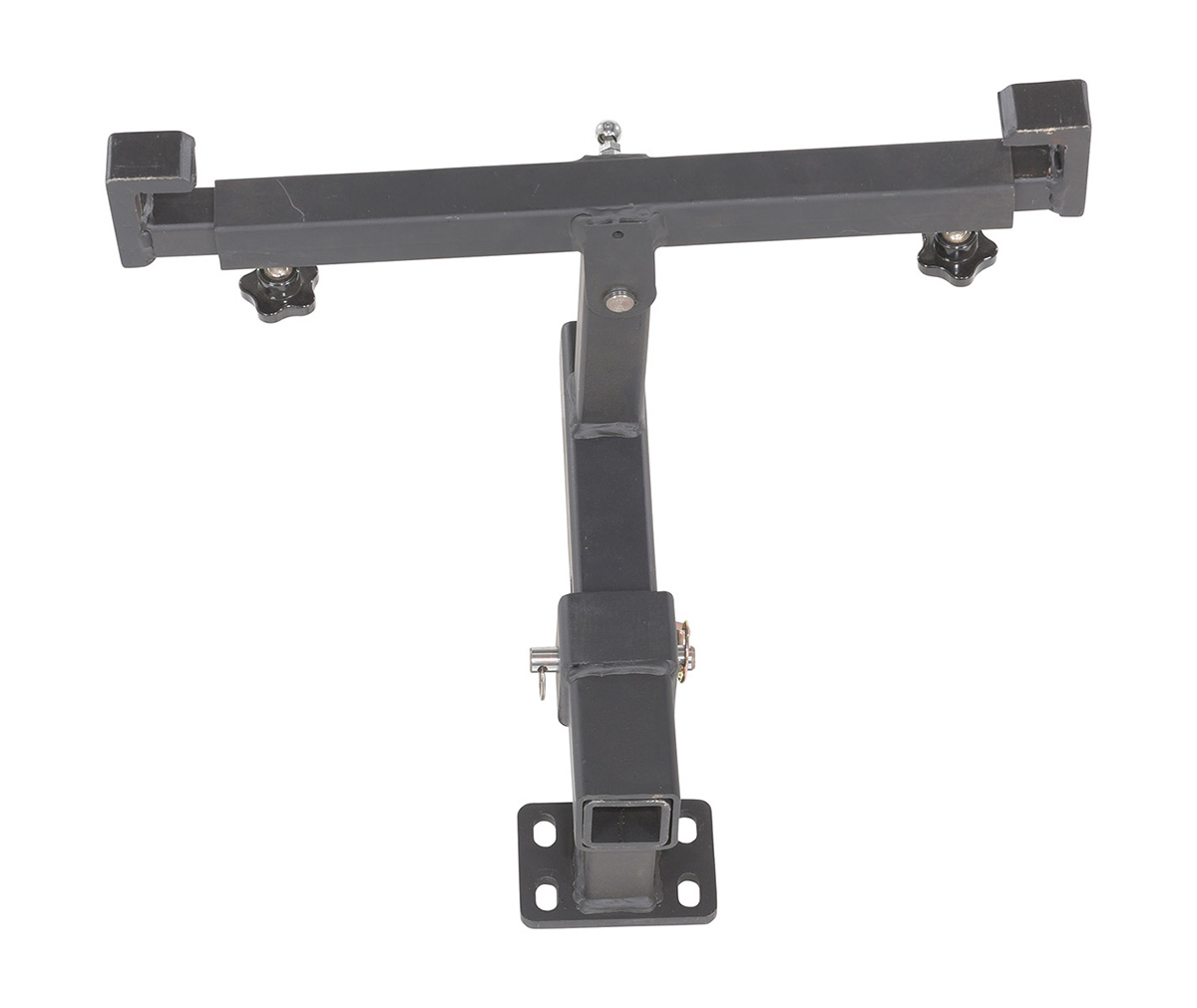

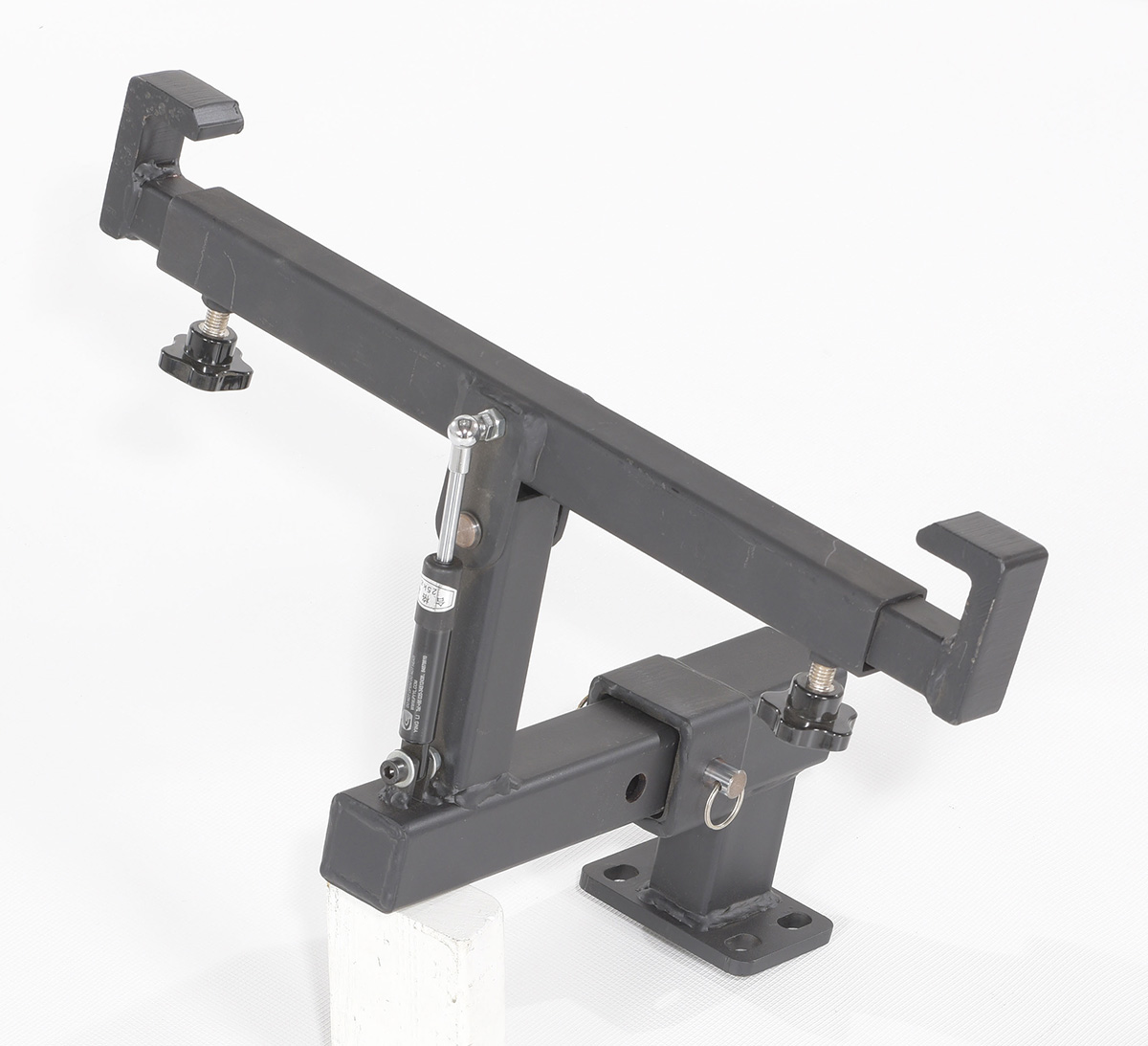

E-TUG-HD-ADSH	Steel Adjustable Double Sided Hook For E-Tug-HD Models Black	25
E-TUG-HD-DABH	Steel Double Ball Hitch Mount For E-Tug-HD Models Black	13

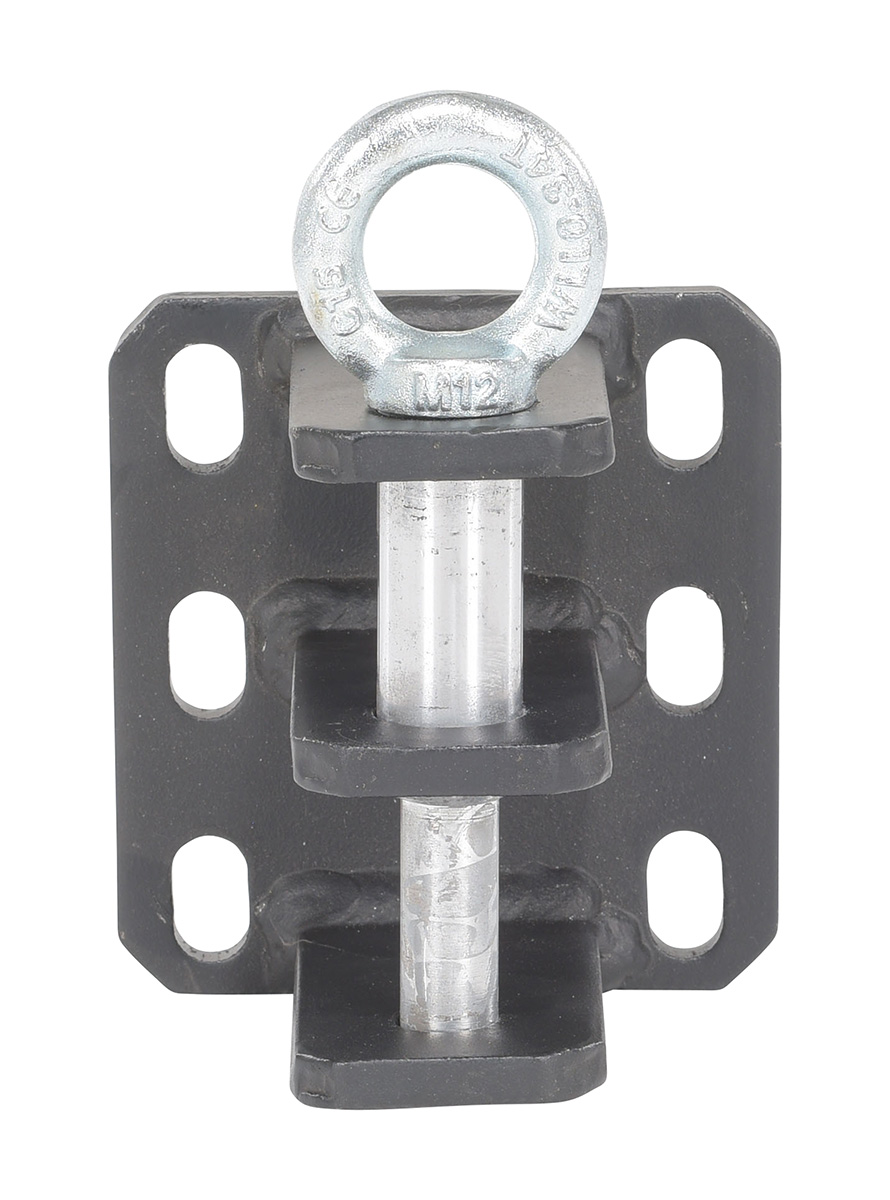

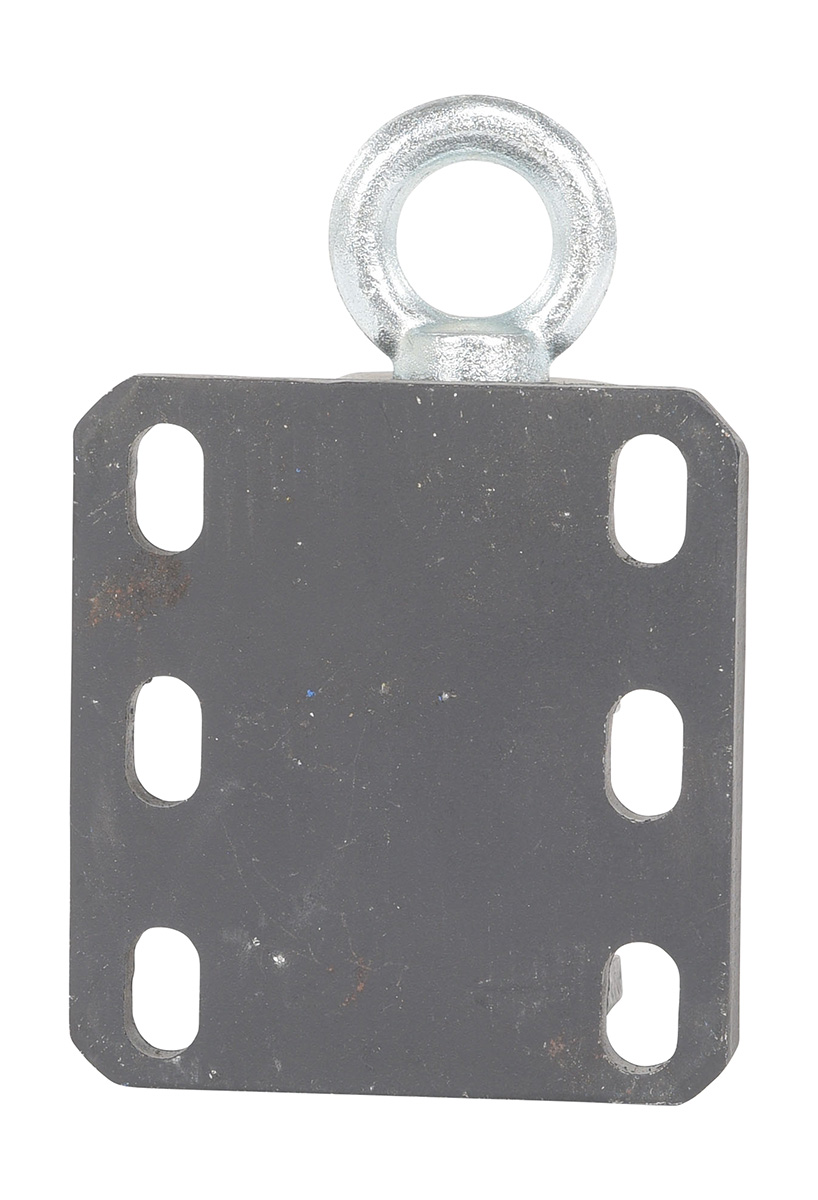

E-TUG-HD-DPINH	Steel Double Pin Hitch For E-Tug-HD Models Black	8

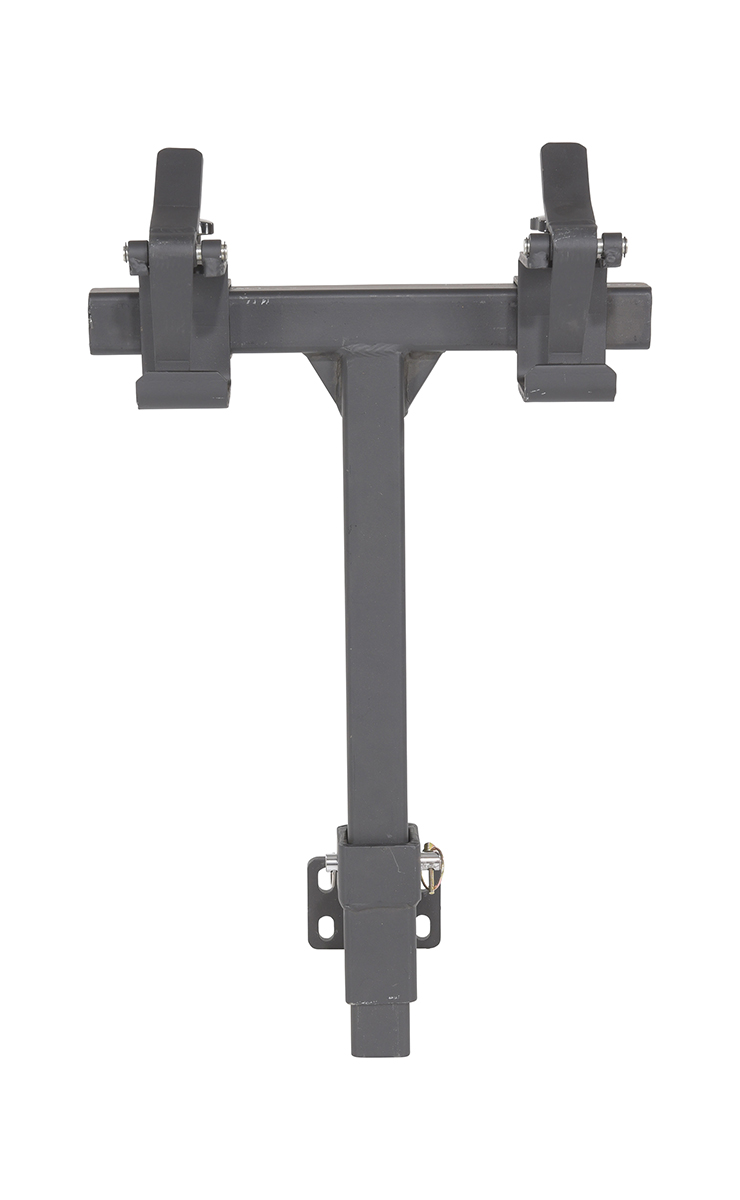

E-TUG-HD-MM	Steel Multi Mover For E-Tug-HD Models Black	31
E-TUG-HD-PINH	Steel Pin Hitch For E-Tug-HD Models Black/Silver	6
E-TUG-HD-RP-16	Steel Roller/Pusher Attachment 16 In. Width For E-Tug-HD Mod…	76
E-TUG-HD-RP-20	Steel Roller/Pusher Attachment 20 In. Width For E-Tug-HD Mod…	93
E-TUG-HD-SBH-4	Steel Single Ball Hitch Mount 4 In. Length For E-Tug-HD Mode…	8

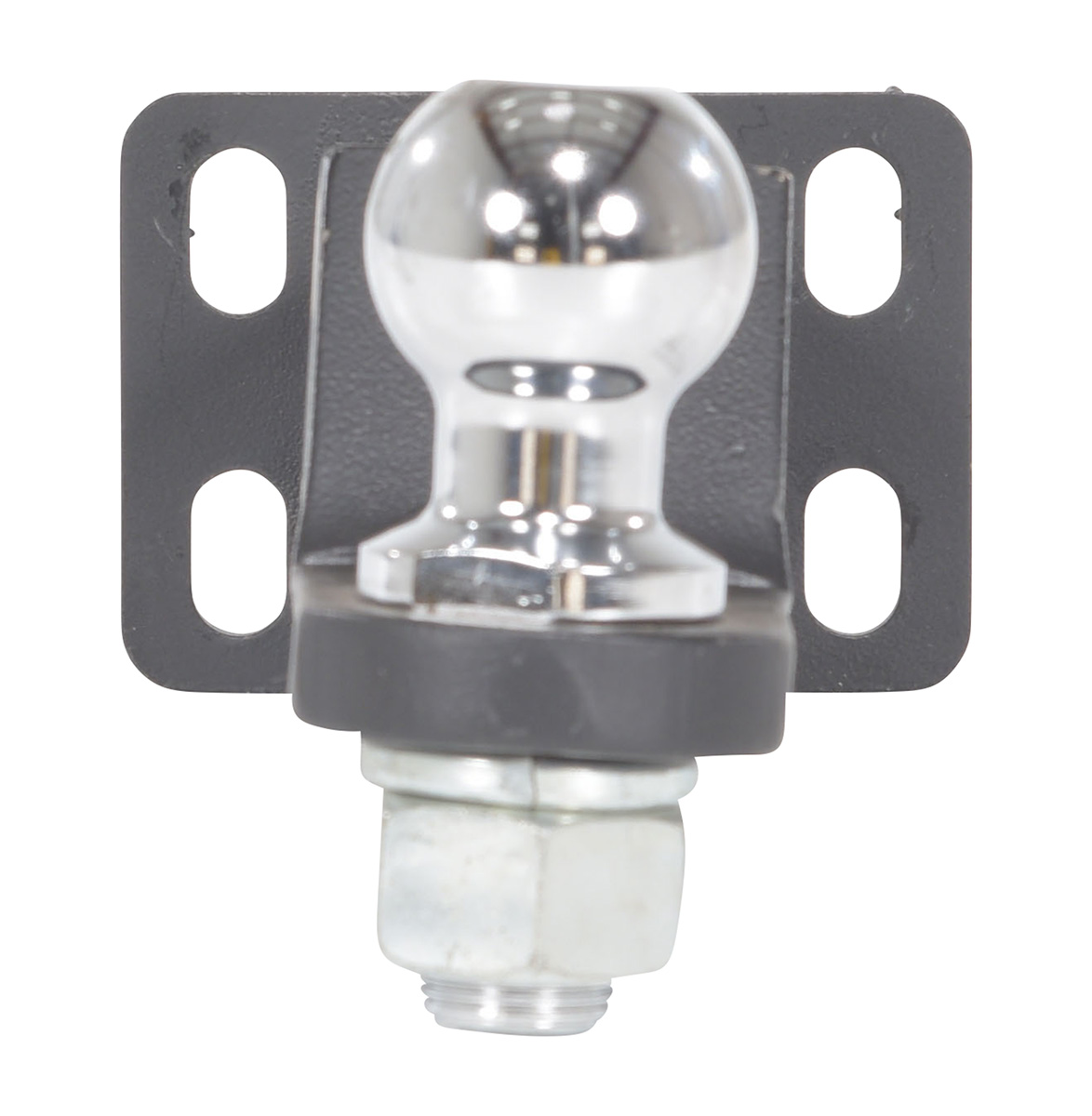

E-TUG-HD-SBH-8	Steel Single Ball Hitch Mount 8 In. Length For E-Tug-HD Mode…	9
E-TUG-HD-SLH	Steel Self Locking Hitch For E-Tug-HD Models Black	5

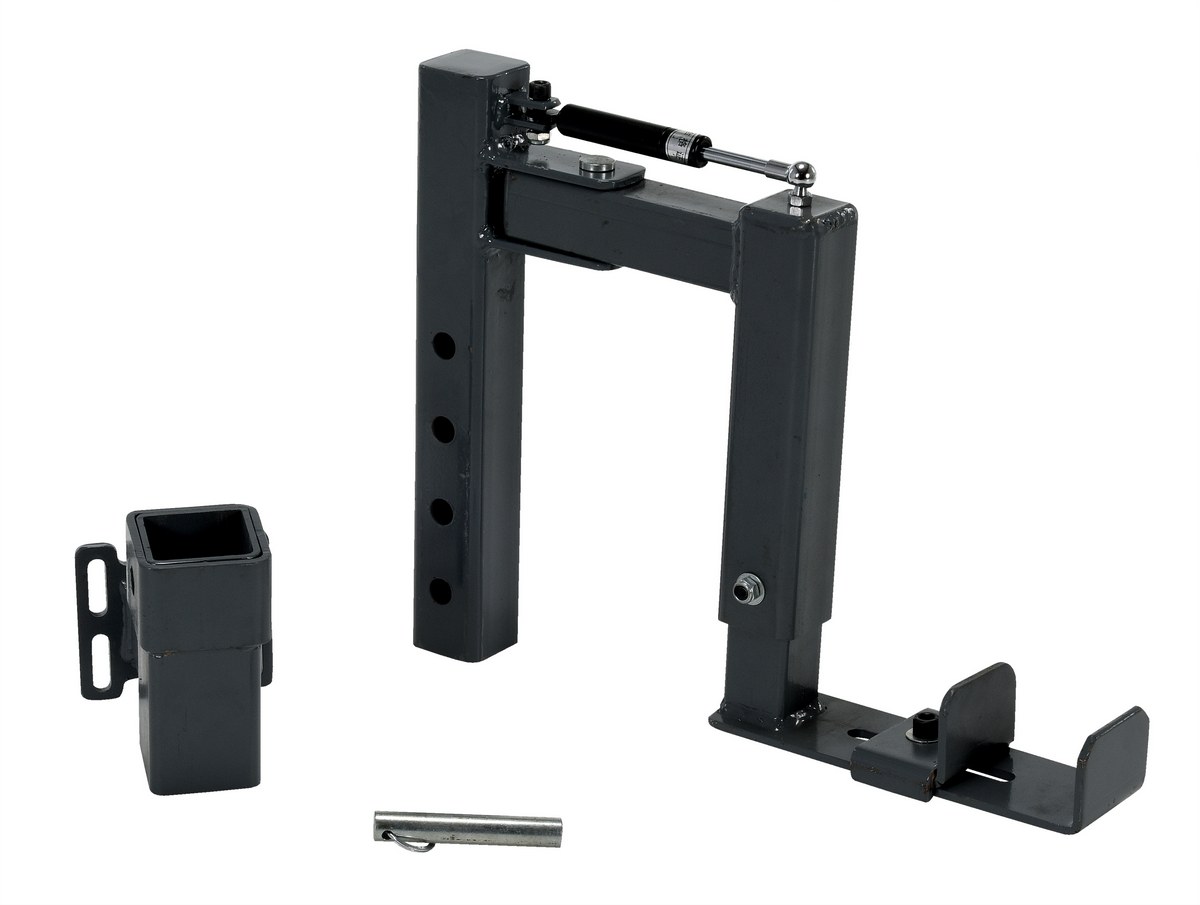

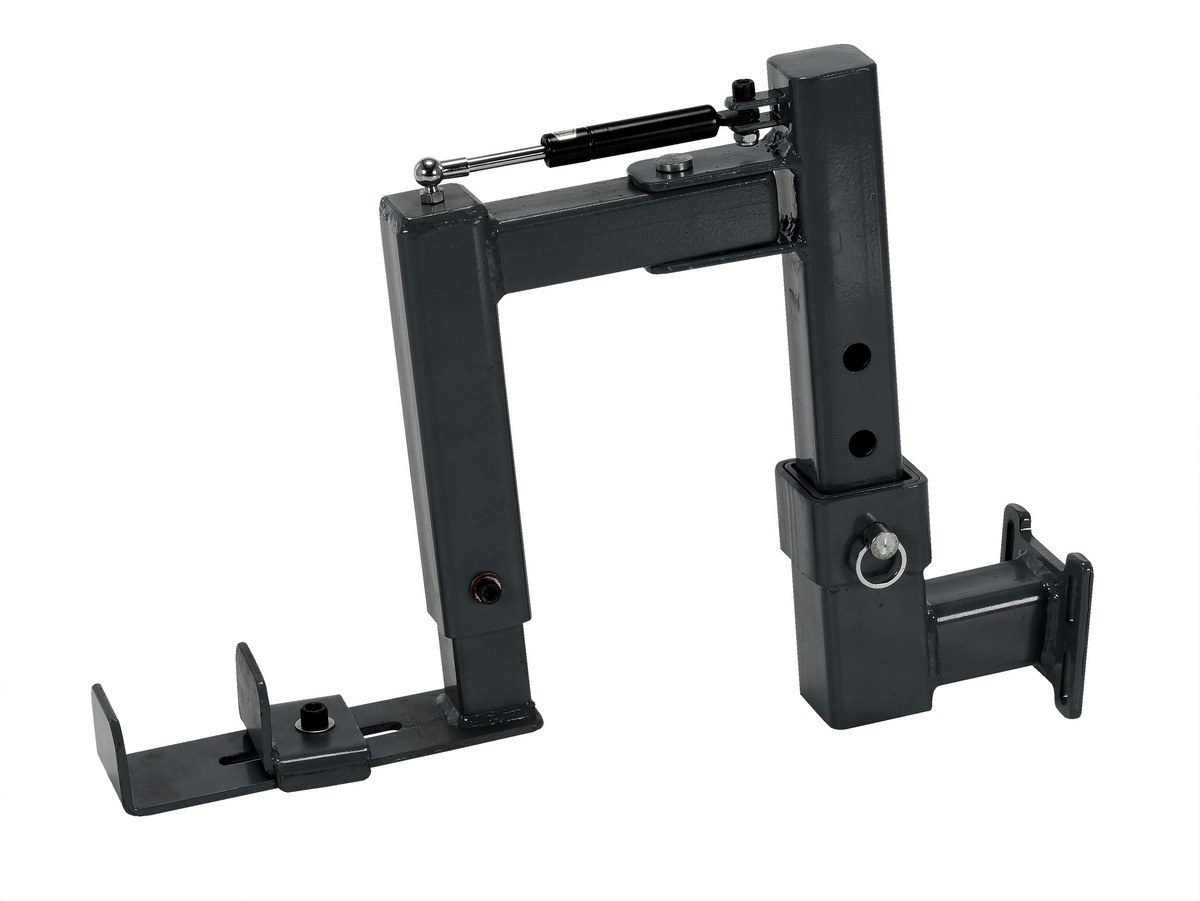

E-TUG-MCLA	Steel Spring Loaded Manual Channel Lift For E-Tug Models Bla…	22
E-TUG-MM	Steel Multi Mover For E-Tug Models Black	31

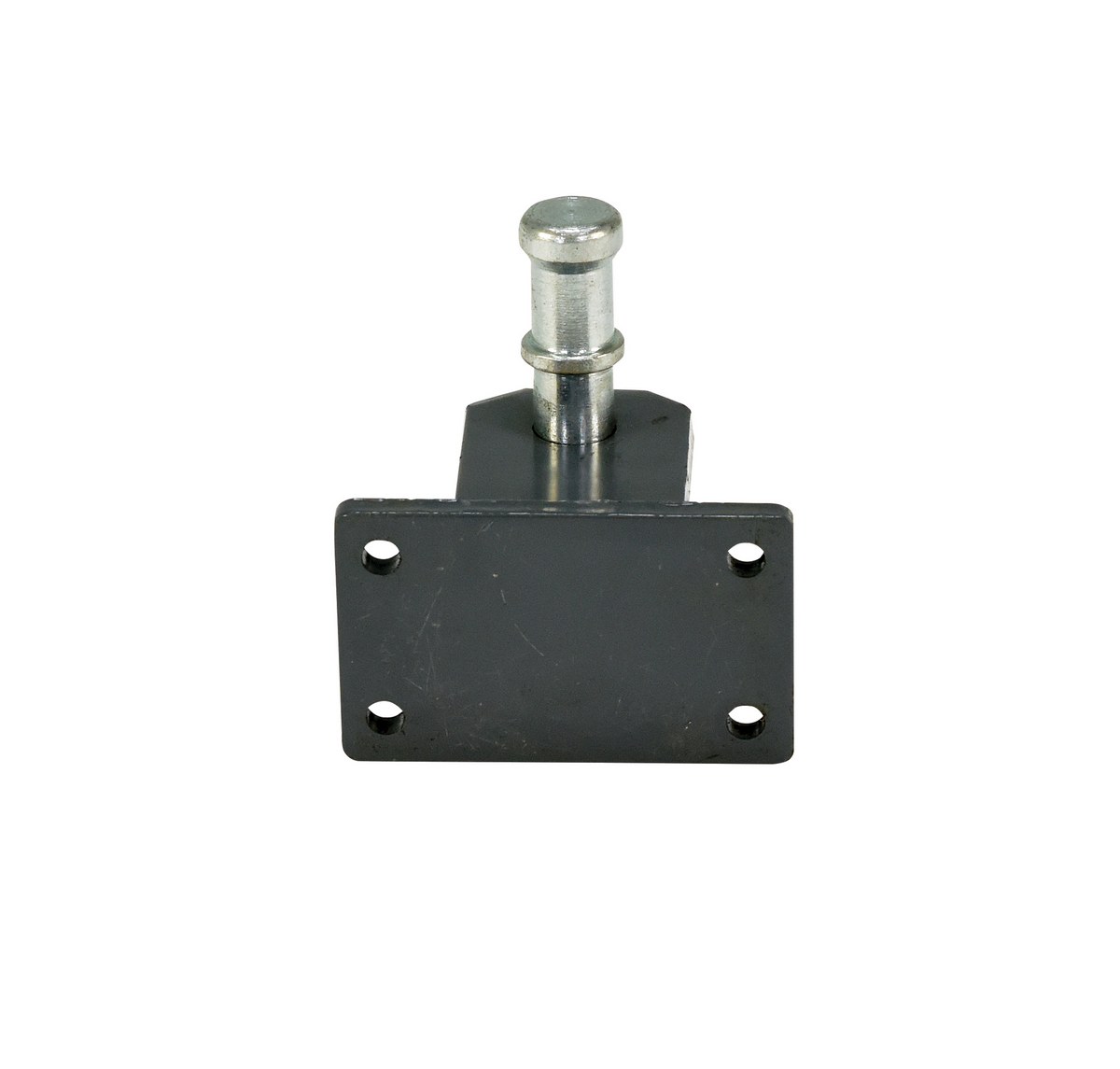

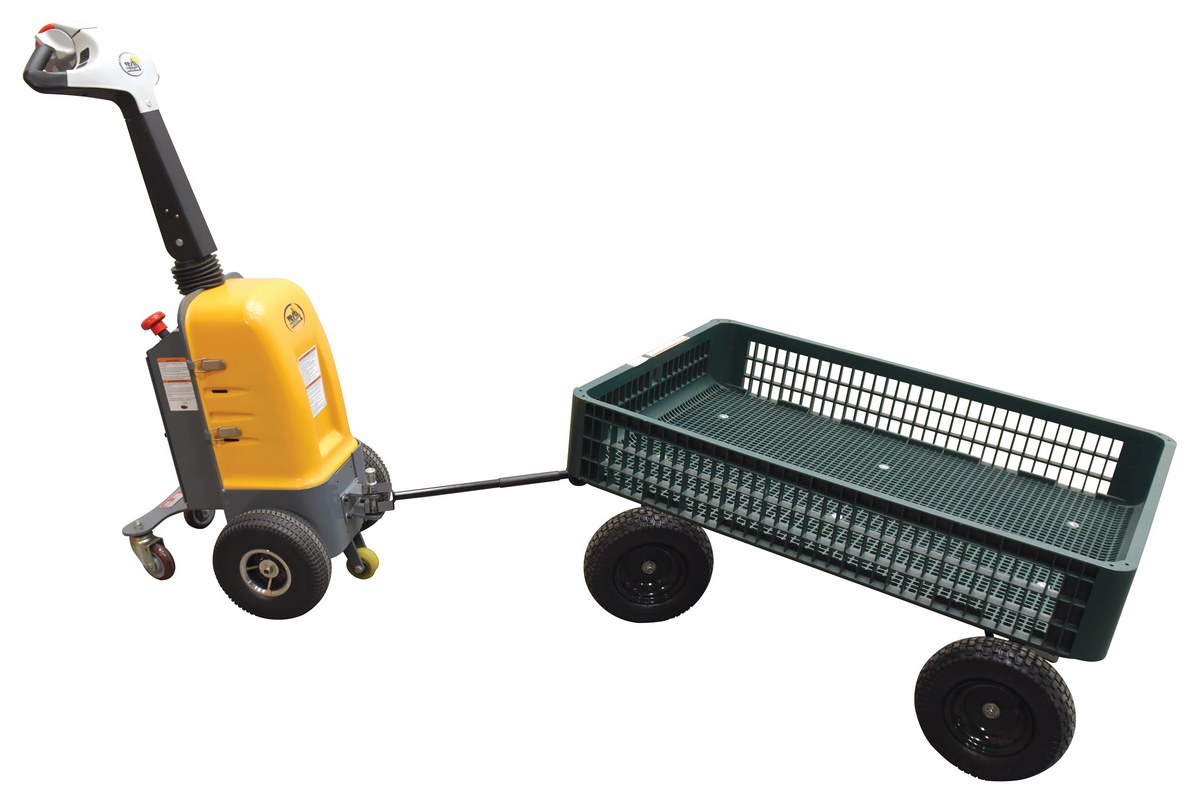

E-TUG-PINH	Steel Pin Hitch For E-Tug Models Black/Silver	4

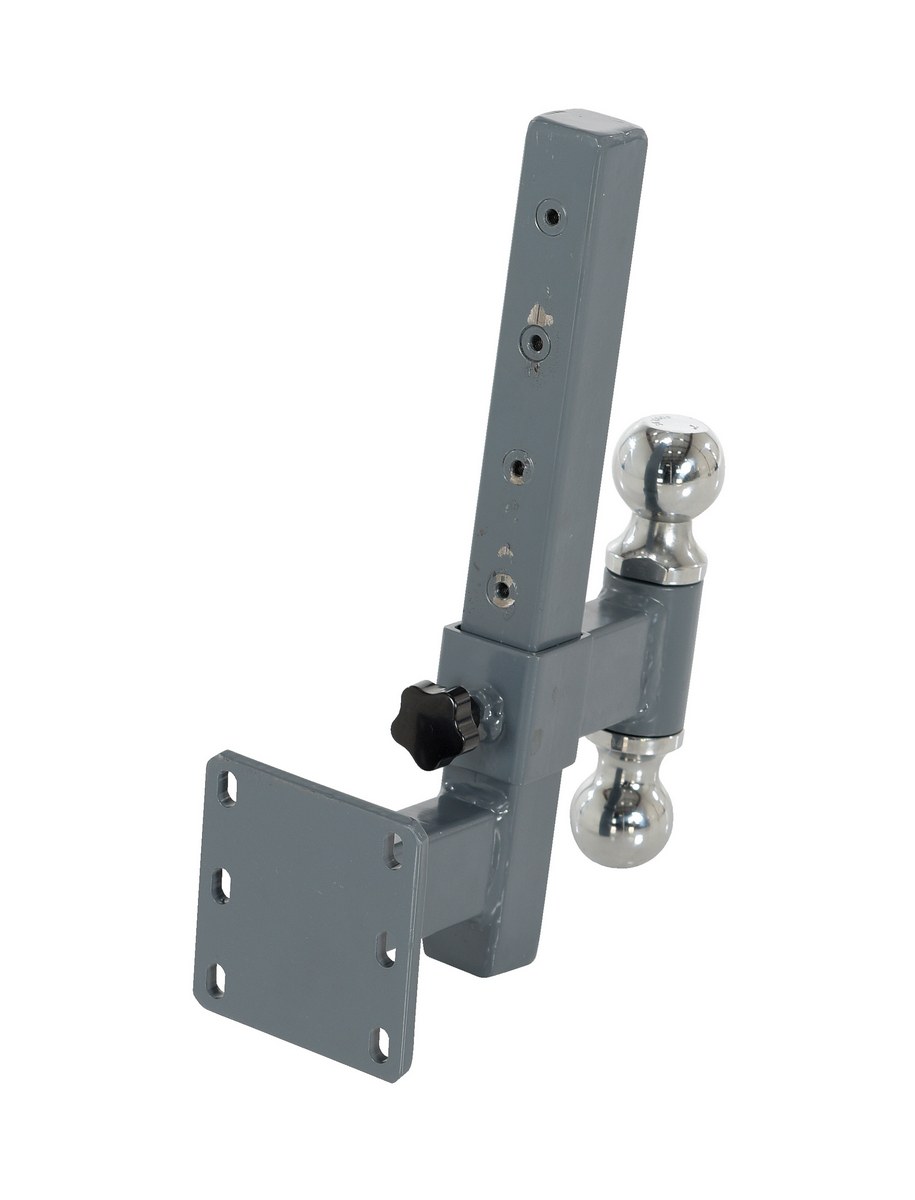

E-TUG-SABH	Steel Adjustable Single Side Hook Double Ball Hitch Mount Fo…	14

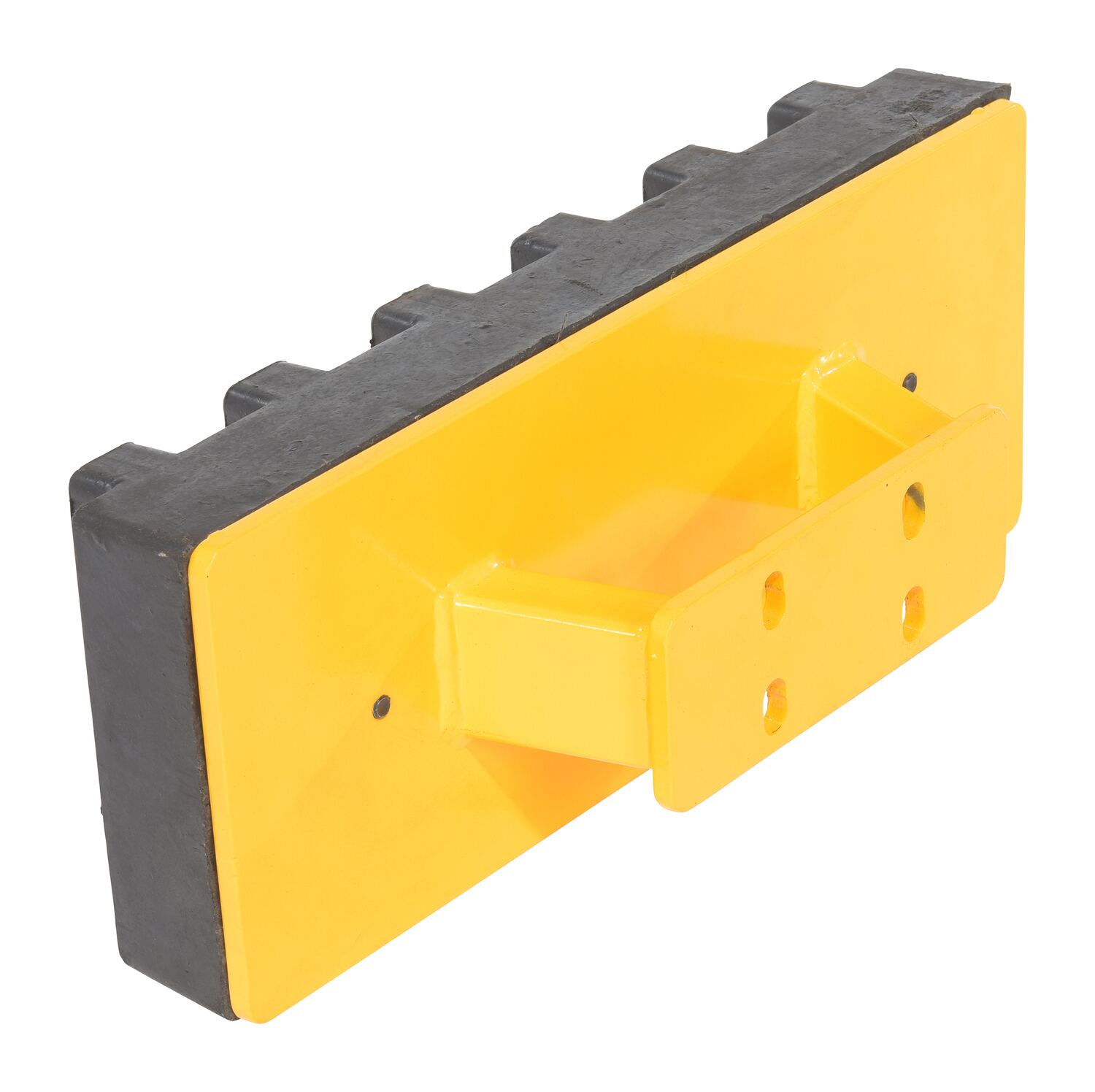

E-TUG-HD-RPB-19	Rubber Bumper Attachment 19 In.	21

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

PDFs will open in a new window when clicked.

Manuals

E-TUG

E-TUG-HD

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

E-TUG-10

E-TUG-20

E-TUG-30

E-TUG-HD-30

E-TUG-HD-70

E-TUG-HD-SLH

E-TUG-HD-50

E-TUG-MCLA

Testing Certificates

E-TUG-10

E-TUG-20

E-TUG-30

E-TUG-ABMH

E-TUG-ADSH

E-TUG-HD-100

E-TUG-HD-100-RV

E-TUG-HD-120

E-TUG-HD-180

E-TUG-HD-30

E-TUG-HD-50

E-TUG-HD-70

E-TUG-HD-ADSH

E-TUG-HD-DABH

E-TUG-HD-DPINH

E-TUG-HD-MM

E-TUG-HD-PINH

E-TUG-HD-RP-16

E-TUG-HD-RP-20

E-TUG-HD-SBH-4

E-TUG-HD-SBH-8

E-TUG-HD-SLH

E-TUG-HD-SLPINH

E-TUG-MCLA

E-TUG-MM

E-TUG-PINH

E-TUG-SABH

SDS Sheets

Valve-Regulated Lead Acid Battery Series
E-TUG-10 SDS

Hydraulic Oil
E-TUG-10 SDS

Valve-Regulated Lead Acid Battery Series
E-TUG-20 SDS

Hydraulic Oil
E-TUG-20 SDS

Valve-Regulated Lead Acid Battery Series
E-TUG-30 SDS

Hydraulic Oil
E-TUG-30 SDS

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
E-TUG-HD-30 SDS

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
E-TUG-HD-50 SDS

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
E-TUG-HD-70 SDS

Hydraulic Oil
E-TUG-HD-100-RV SDS

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
E-TUG-HD-100-RV SDS

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
E-TUG-HD-100 SDS

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
E-TUG-HD-120 SDS

Other PDFs

MODEX Welded Security Cart Brochure

HD Electric Powered Tuggers - New Sizes Mailing Brochure

Attachments can be found under the Options Tab below

Applications

Trucking Companies

Warehouses

Do It Yourself

Moving Companies

Postal Services

Loading Docks

Packaging Areas

Reference #: CF-5937 SS Electric Tugger

Reference #: CF-5937 SS Electric Tugger

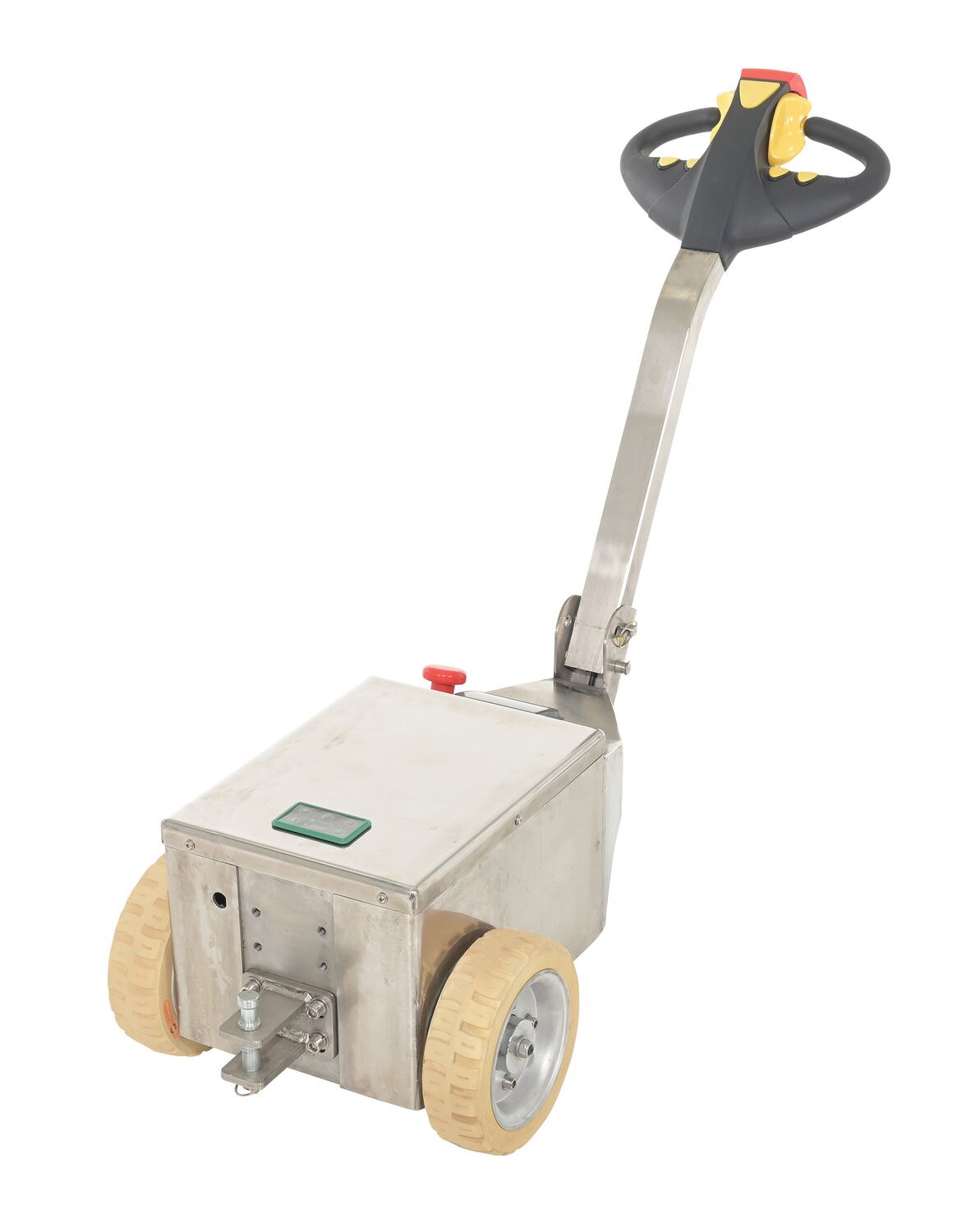

Special Stainless Steel Electric Tugger

Reference #: CF-6349 Tugger with Dump Option

Reference #: CF-6349 Tugger with Dump Option
Special Tugger with Dump Option

For more Specialty Designs similar to these... Click Here

How long does it take to charge the battery for the E-TUG-30 ?

The battery for the E-TUG-10, E-TUG-20, and E-TUG-30 will be fully charged in approximately 5 hours. If the battery is dead it may take up to 8 hours to be fully charged.

How long will the E-TUG-10 run?

The E-TUG-10, E-TUG-20, and E-TUG-30 will operate approximately 4 hours of continuous use on a fully charged battery. For intermittent use, you can expect 8 hours .

What is the diameter of the E-TUG-PINH?

The diameter of the pin (E-TUG -PINH) is approximately 3/4".

Can the tugger be used on an incline?

The E-TUG-10, E-TUG-20, and E-TUG-30 will operate efficiently on a slope of 2-3 °.

What is the service range of the ball hitches?

The service range of the E-TUG-SABH is 14-15/16 to 23-5/8.
The service range of the E-TUG-ABMH is 15-1/2 to 21-1/2.

What is the life cycle of spring on the E-TUG-HD-SLH?

The life cycle of spring for moderate use is approximately 1 to 2 years.

Is the orientation of the hitch E-TUG-HD-SLH relevant?

Yes. The hitch is designed for horizontal pulling only.

What is the life cycle of the hitch E-TUG-HD-SLH ?

The life cycle of the hitch is approximately one year with moderate use.

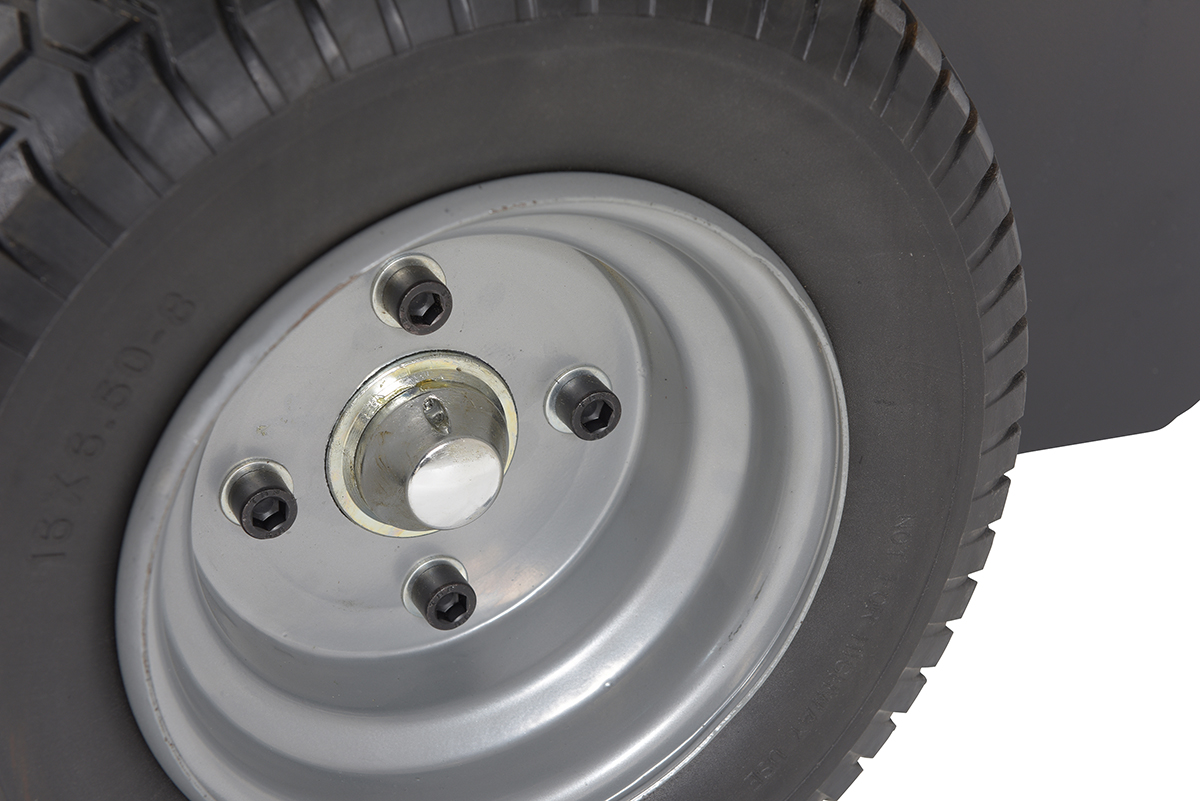

The wheels on the tugger are foam filled. What material are the front casters?

The front casters are poly on poly.

What is the IP rating of the E-TUG-20?

The IP rating is IP54.

What is the adjustment range for E-TUG-ADSH?

The E-TUG-ADSH adjustment range is from 18-1/2" - 26".

What are the dims of the hitch pin on the unit?

The dimensions of the hitch pin are E-TUG-PINH 3/4" SHAFT / 15/16" HEAD / 4 5/8" LONG.

What is the speed of this unit?

Factory speed is set at 2.8MPH unloaded and 2.2MPH loaded.

Are the E-TUG models CSA, UL or ELT compliant?

Yes the E-TUG models are CSA, UL and ELT compliant.

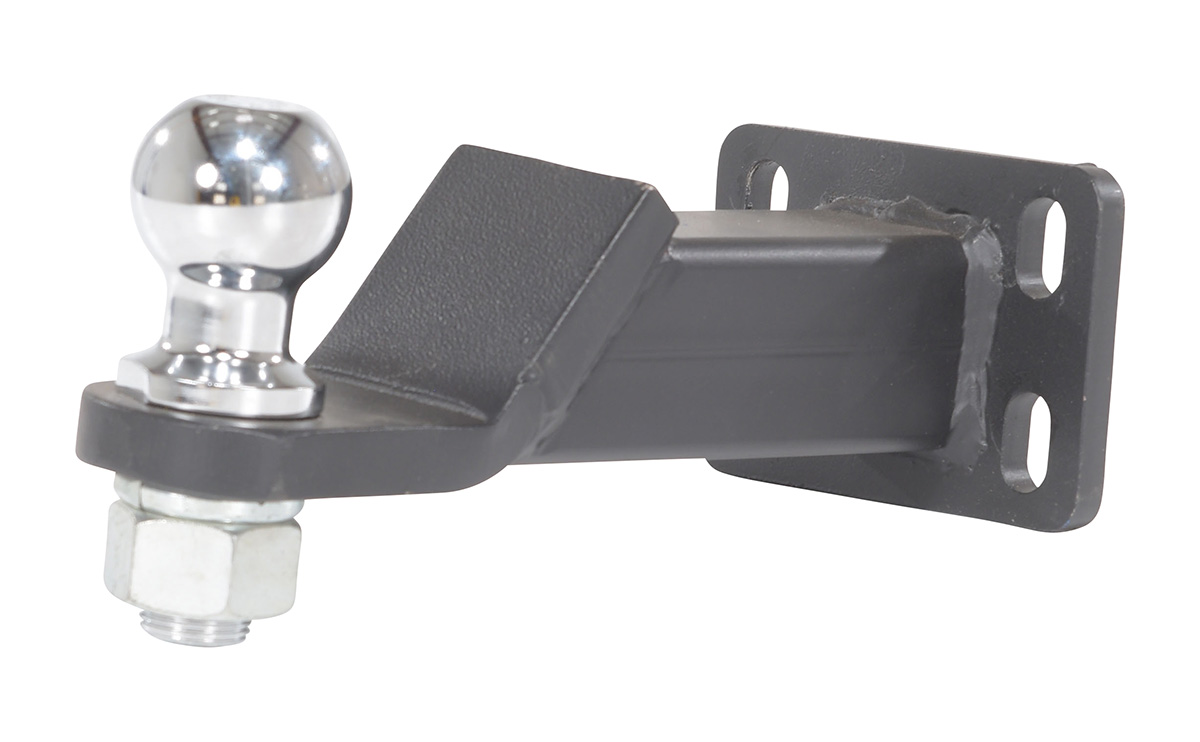

Can you tell me what the distance is between each hole is going vertical and horizontal on the E-TUG-HD-SBH-8?

Horizontal- 2 7/8 in (3 3/8 in on center)
Vertical- 7/8 in (1 3/4 in on center)

What are the mounting hole dimensions for the E-TUG-HD-SLH?

The mounting hole dimensions are as follows:
3 1/2 in wide on center x 1 7/8 in tall on center
Holes are 1/2 in wide x 7/8 in tall

What are the ball sizes on E-TUG-SABH and E-TUG-HD-DABH?

Both hitches have a double ball that are 1-7/8" & 2"

What is the distance between the two horizontal plates on E-TUG-HD-PINH?

1-3/4"

Related or Similar Products:

Model #

Description

Attributes

Net Wt.
(lbs)

E-TUG-10

Steel Electric Powered Tugger 1000 Lb. Pull Capacity Yellow/Black

Uniform Pull Capacity (lb.): 1,000
Drive Motor: 24V DC

258

E-TUG-20

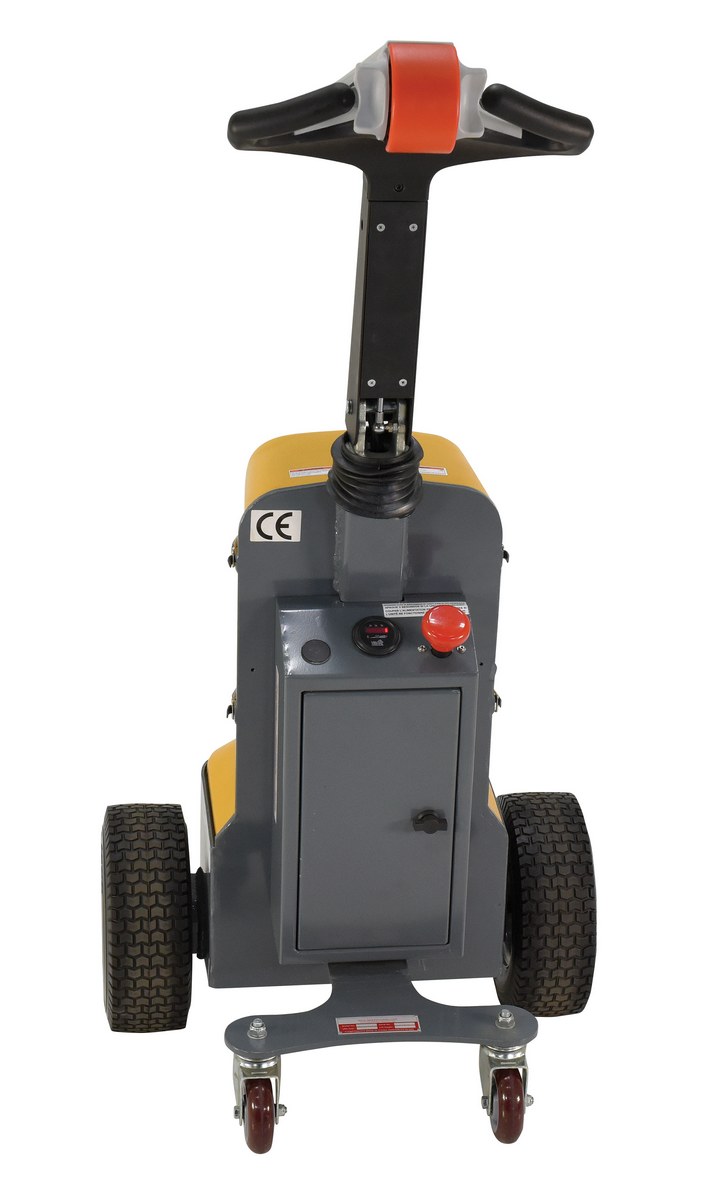

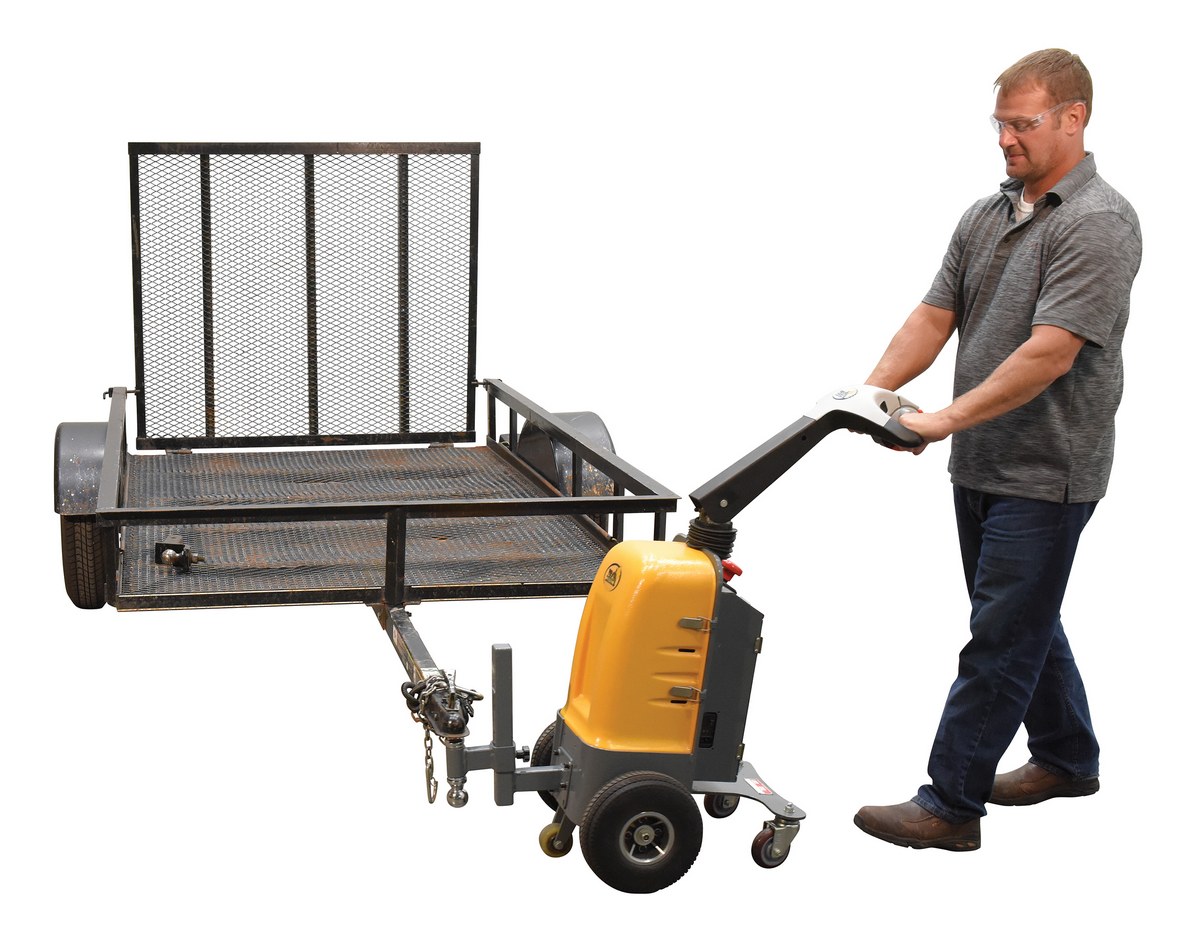

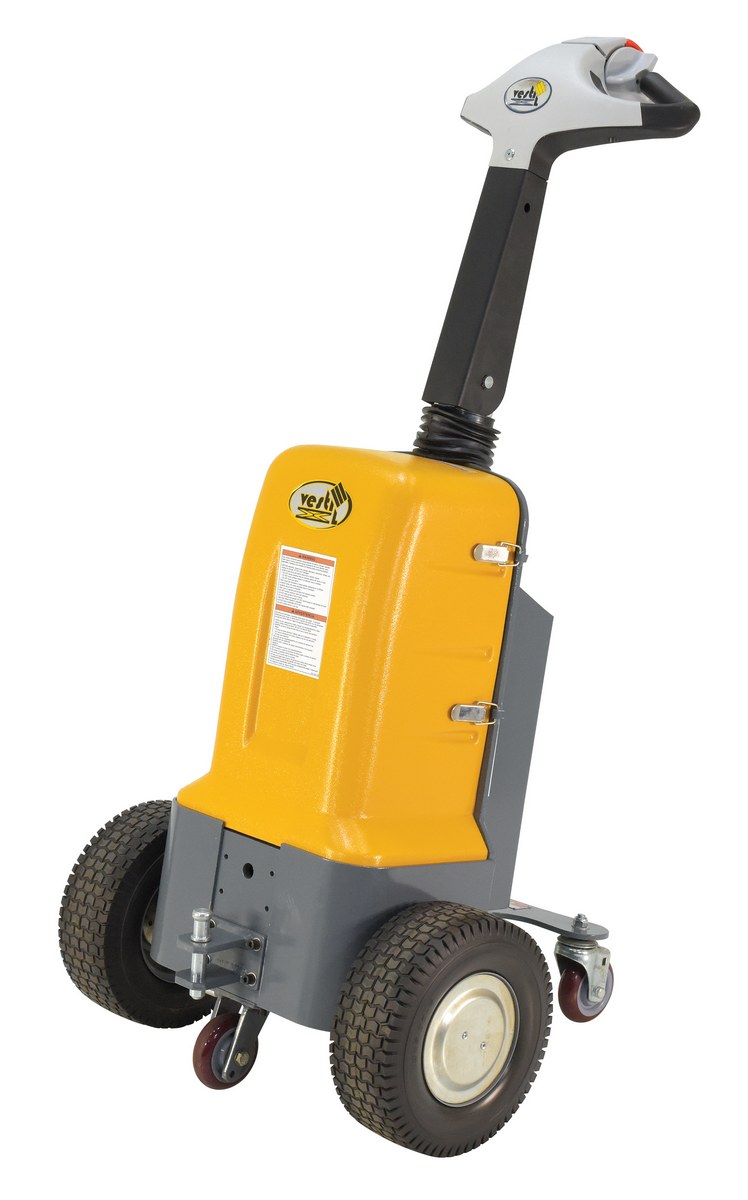

Steel Electric Powered Tugger 2000 Lb. Pull Capacity Yellow/Black

Uniform Pull Capacity (lb.): 2,000
Drive Motor: 24V DC

282

E-TUG-30

Electric Powered Tugger with 3000 Lb. Pull Capacity Yellow/Black

Uniform Pull Capacity (lb.): 3,000
Drive Motor: 24V DC

434

E-TUG-HD-100

Steel Heavy Duty Electric Powered Tugger 10,000 Lb. Pulling Capacity Yellow

Uniform Capacity (lb.): 10000
Drive Motor: 24V DC

1072

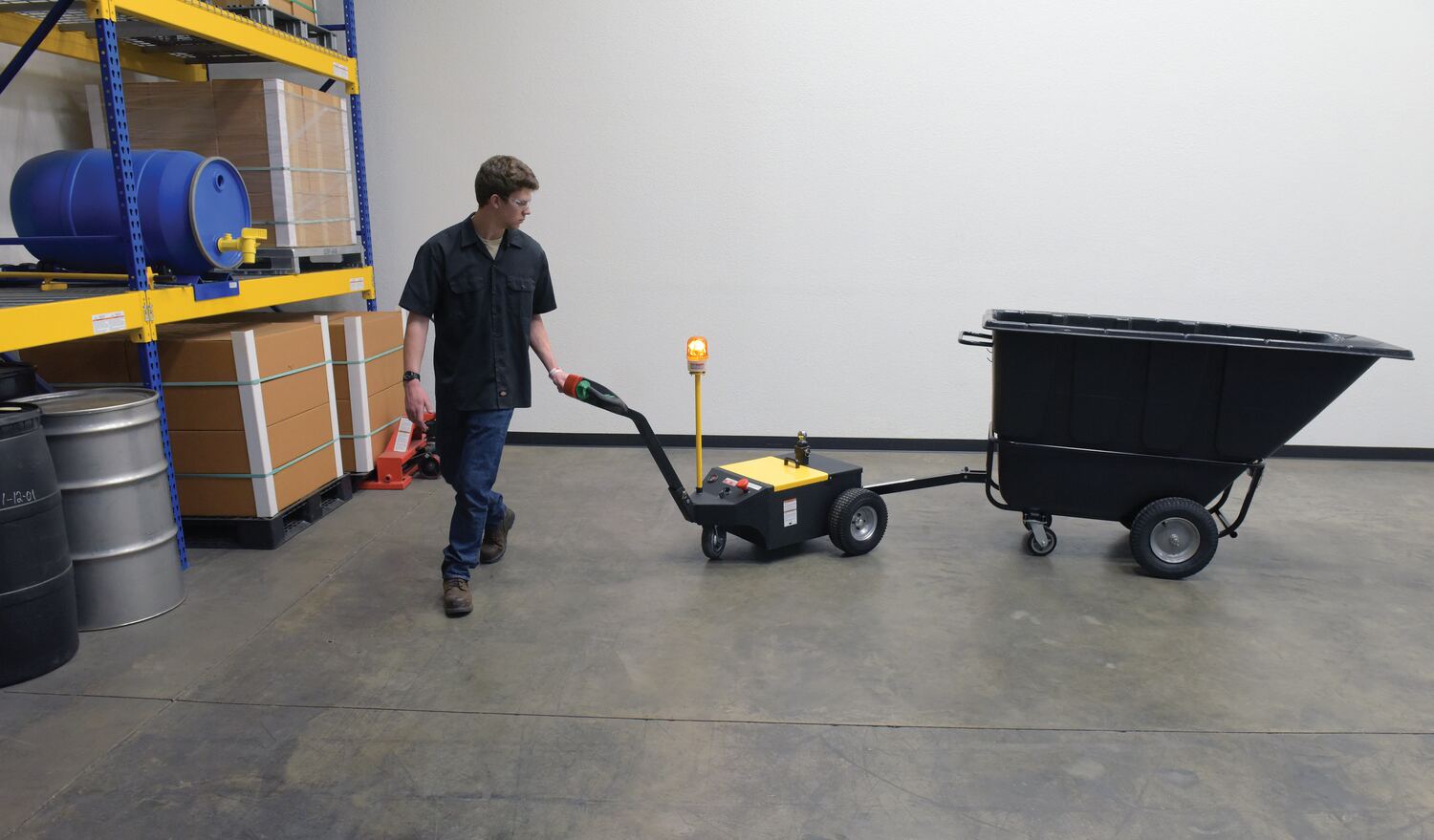

E-TUG-HD-30

Steel Heavy Duty Electric Powered Tugger 3000 Lb. Pull Capacity Yellow/Black

Uniform Capacity (lb.): 3000
Drive Motor: 24V DC

420

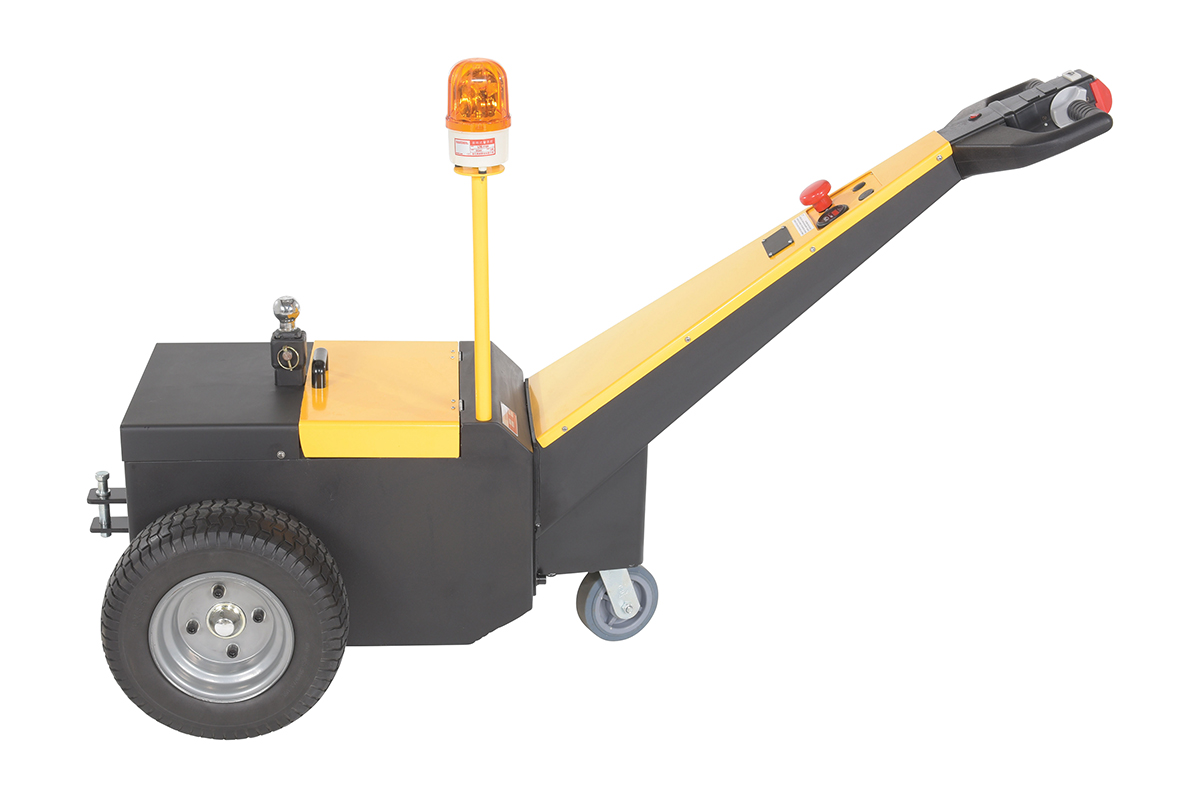

E-TUG-HD-50

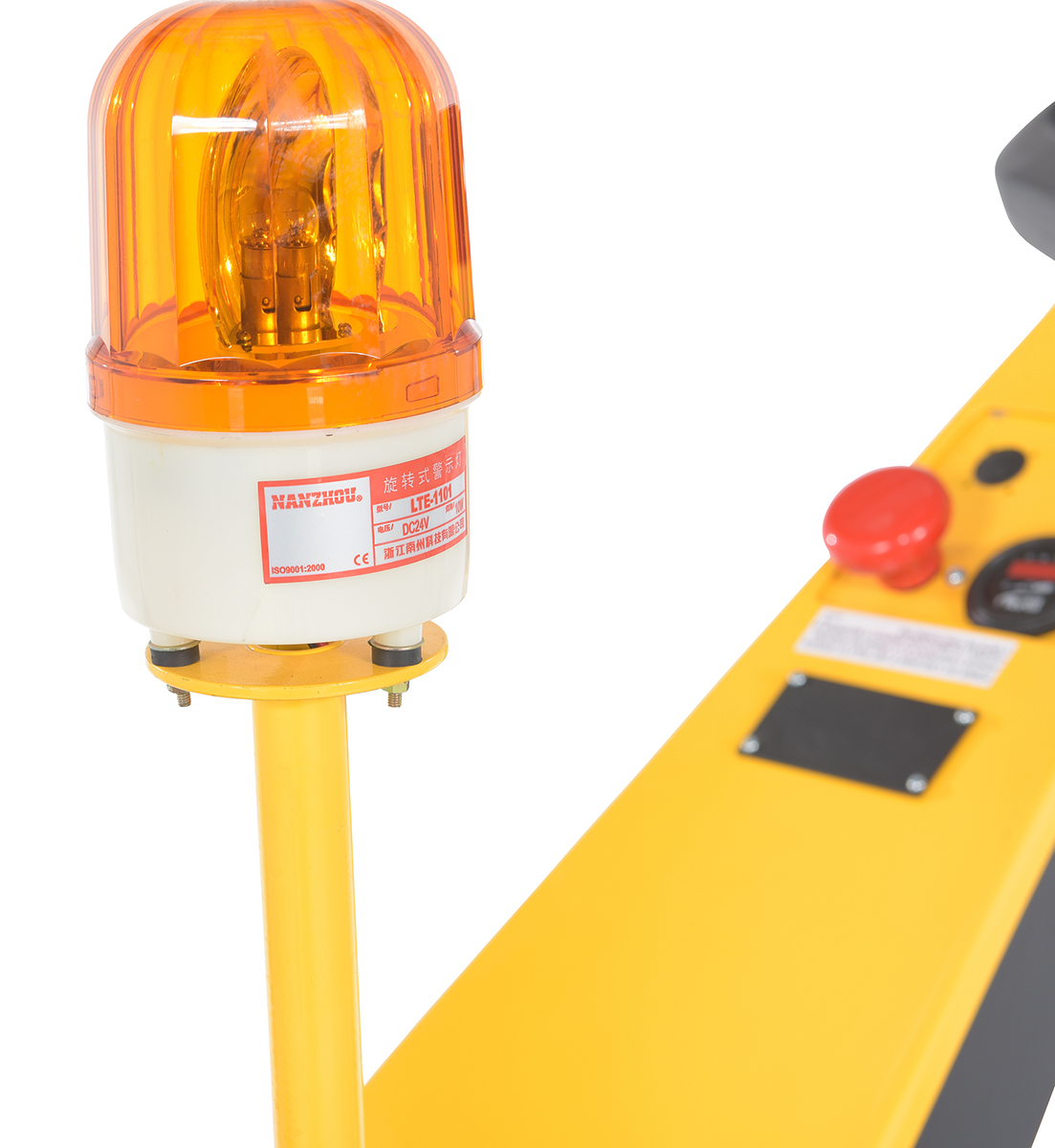

Steel Heavy Duty Electric Powered Tugger 5000 Lb. Pull Capacity Yellow/Black

Uniform Capacity (lb.): 5000
Drive Motor: 24V DC

606

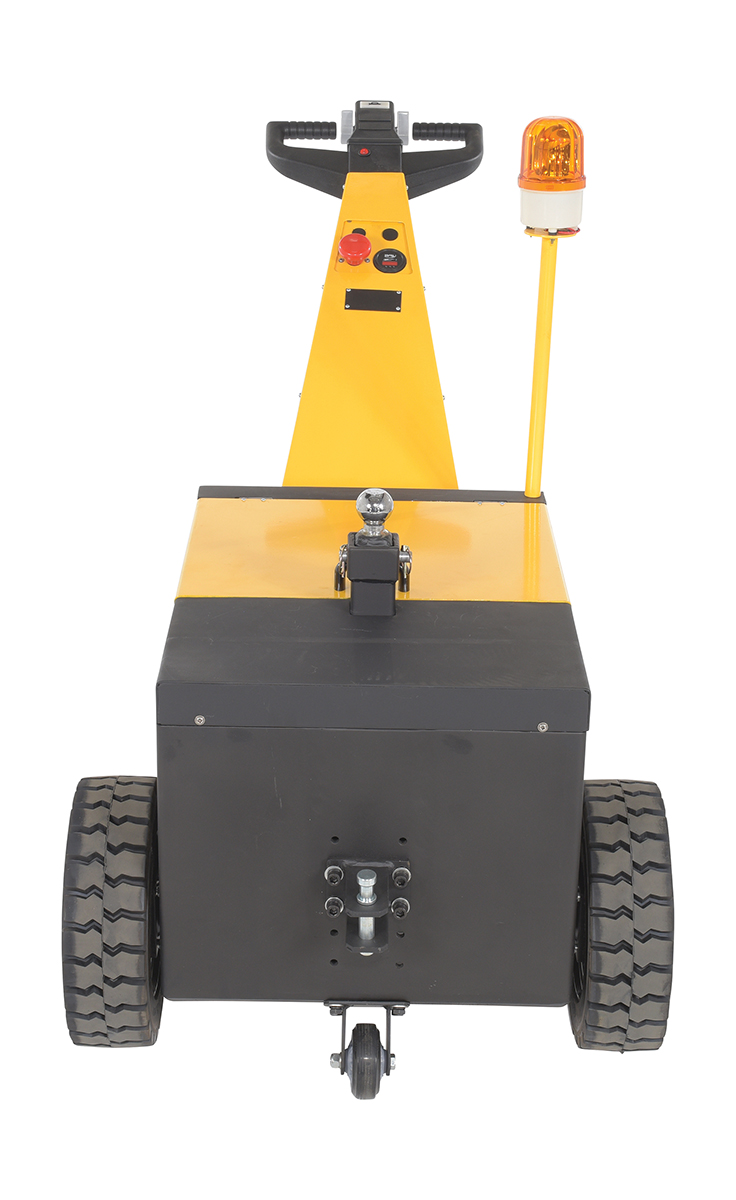

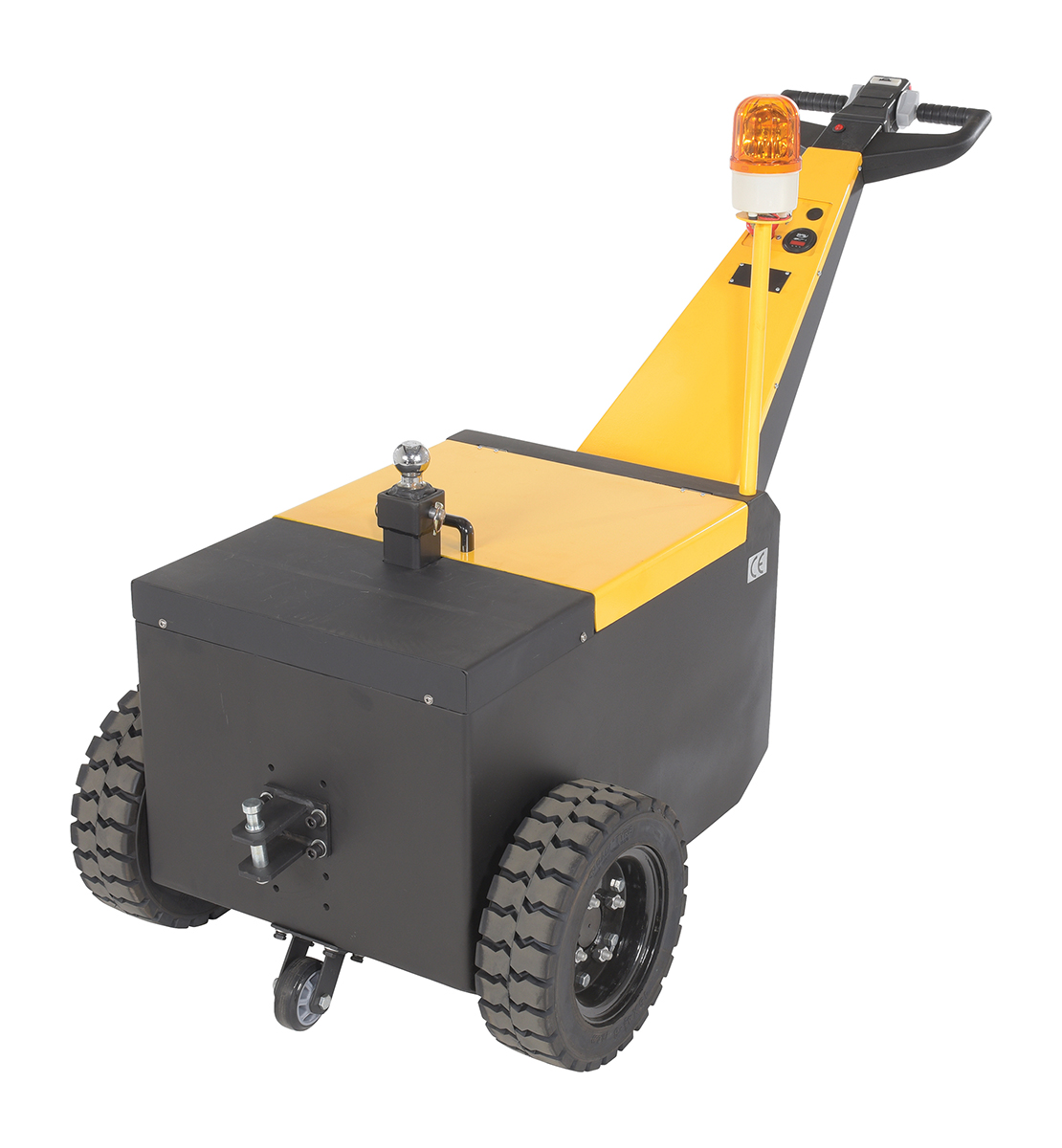

E-TUG-HD-70

Steel Heavy Duty Electric Powered Tugger 7000 Lb. Pull Capacity Yellow/Black

Uniform Capacity (lb.): 7000
Drive Motor: 24V DC

1012

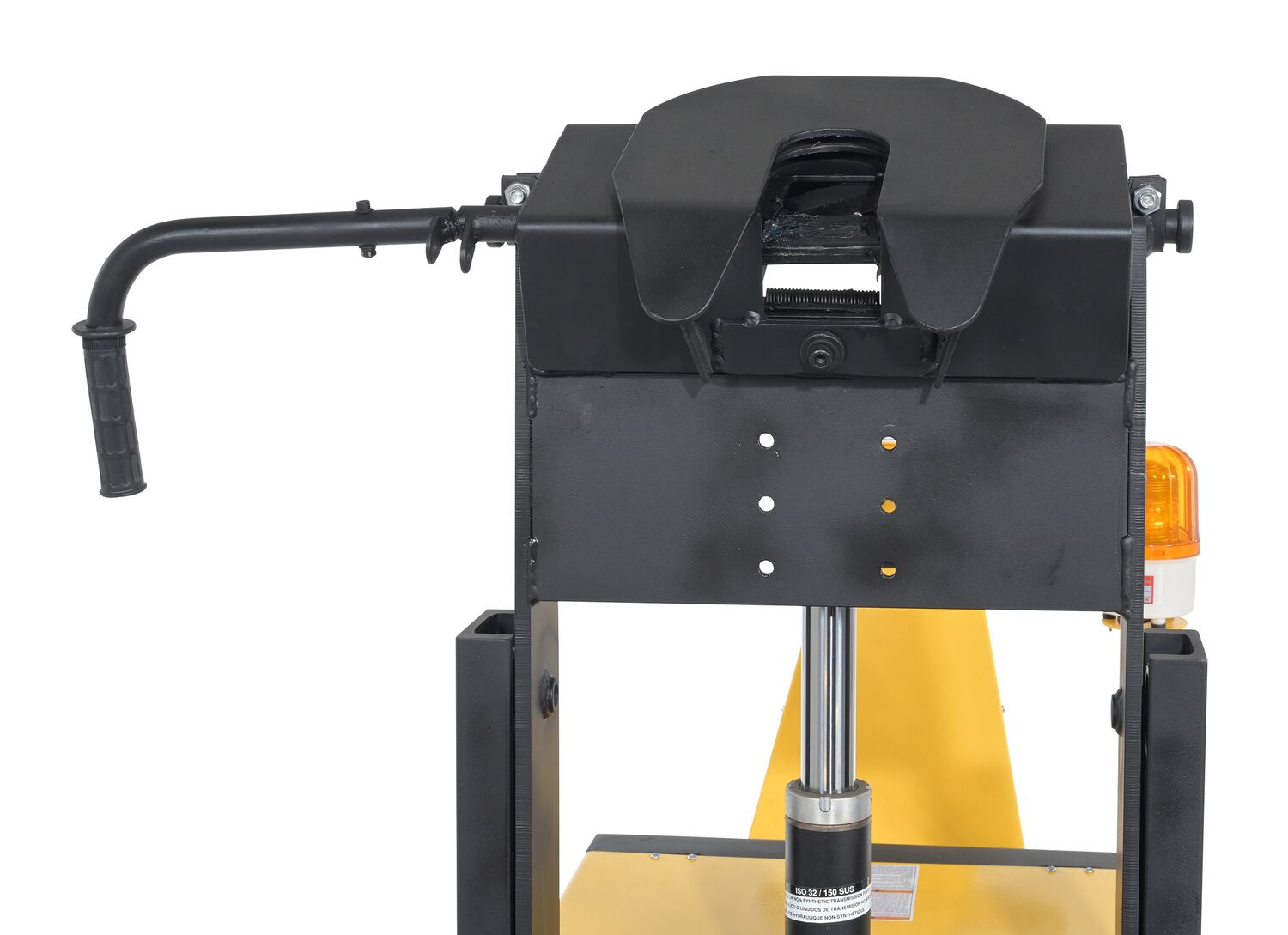

E-TUG-HD-100-RV

Steel Heavy Duty Electric Powered Tugger With Fifth Wheel Attachment 10,000 Lb. Pulling Capacity Yellow

Uniform Capacity (lb.): 10000
Drive Motor: 24V DC

1300

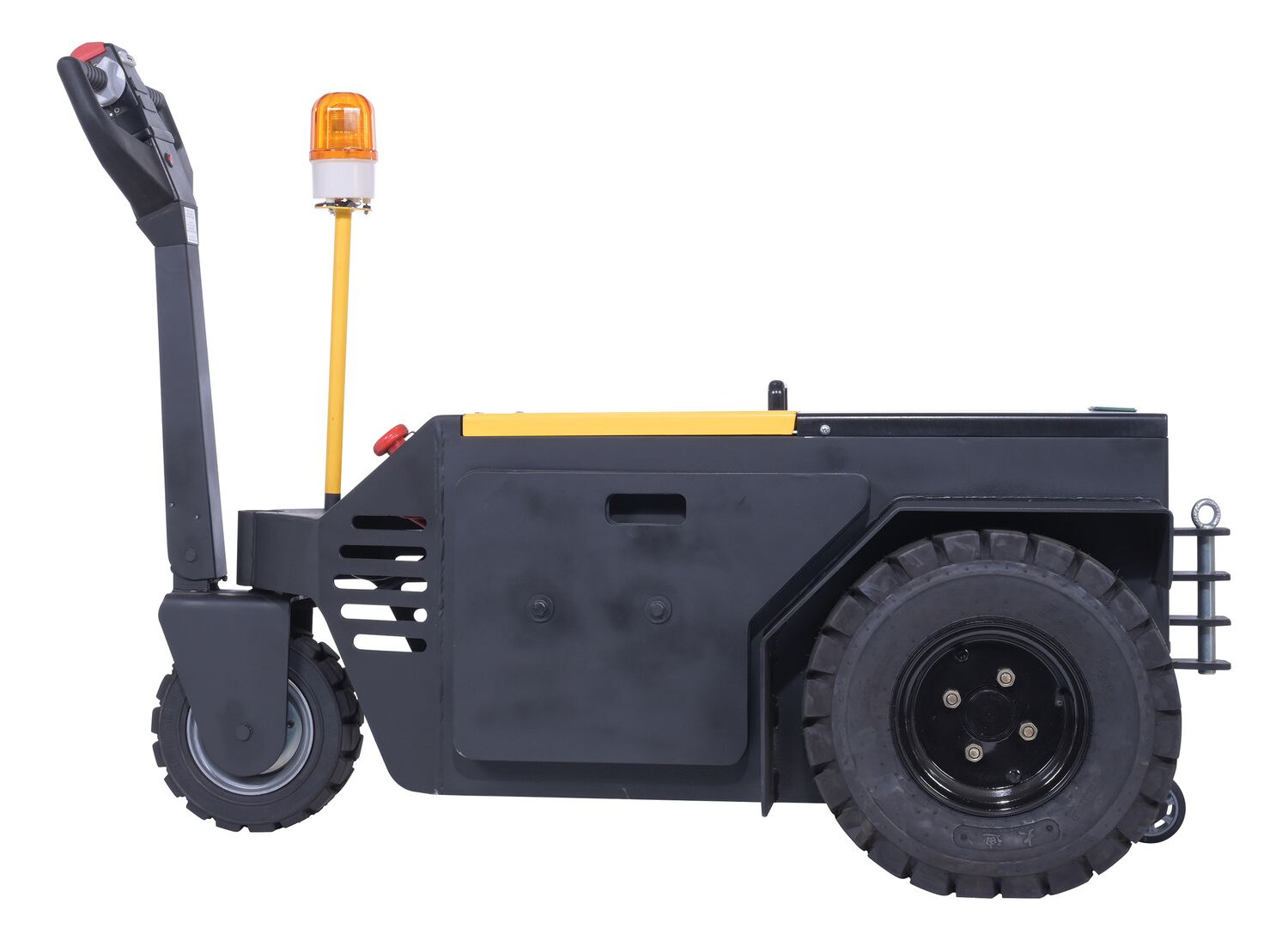

E-TUG-HD-120

Steel Heavy Duty Electric Powered Tugger 12,000 Lb. Pulling Capacity Yellow

Uniform Capacity (lb.): 12000
Drive Motor: 24V DC

1190

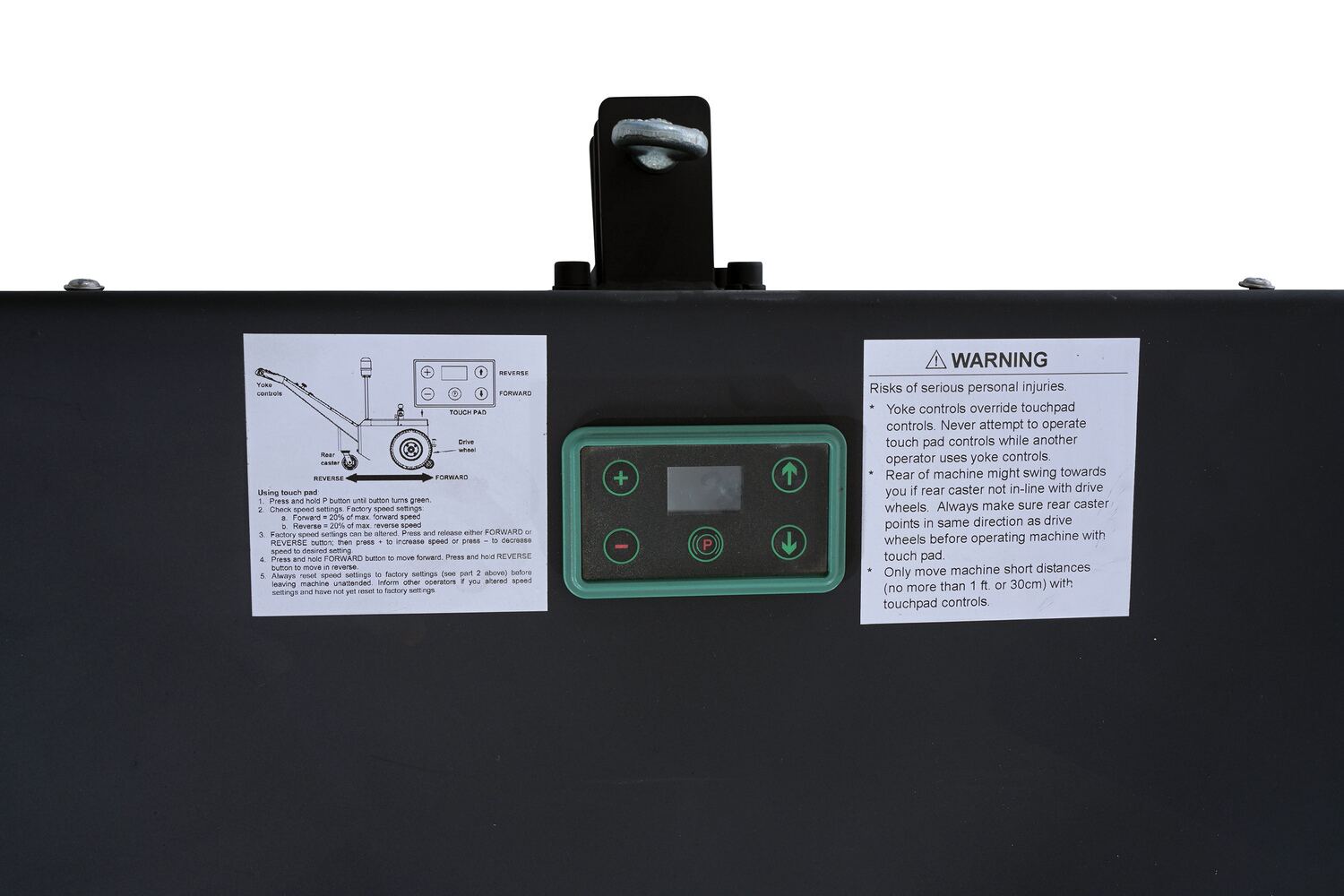

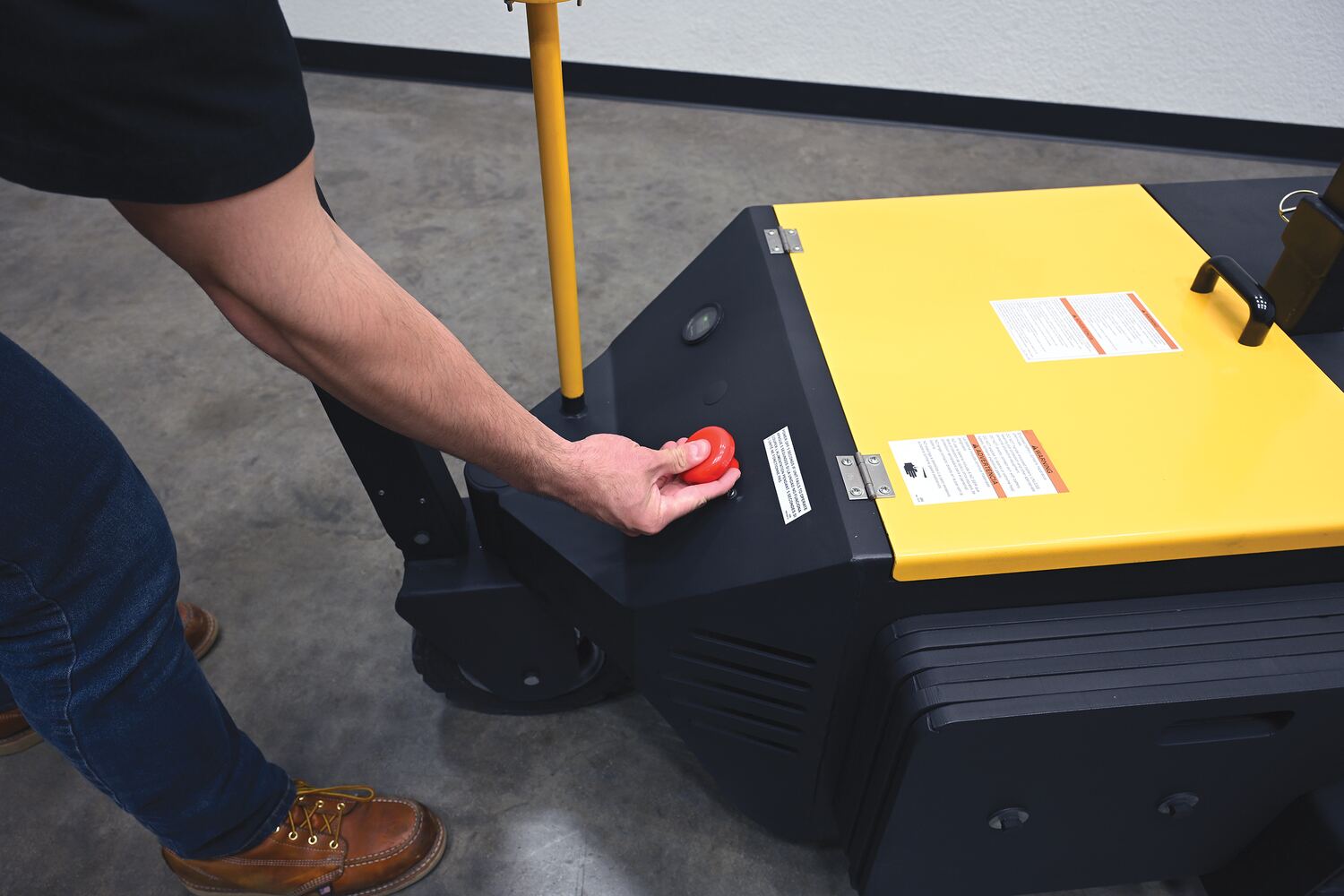

E-TUG-HD-180

Steel Heavy Duty Electric Powered Tugger 18,000 Lb. Pulling Capacity Black

Uniform Capacity (lb.): 18000
Drive Motor: 24V DC

1550
